Front Door Interior Handle: Service and Repair

INTERIOR DOOR HANDLE - FRONT

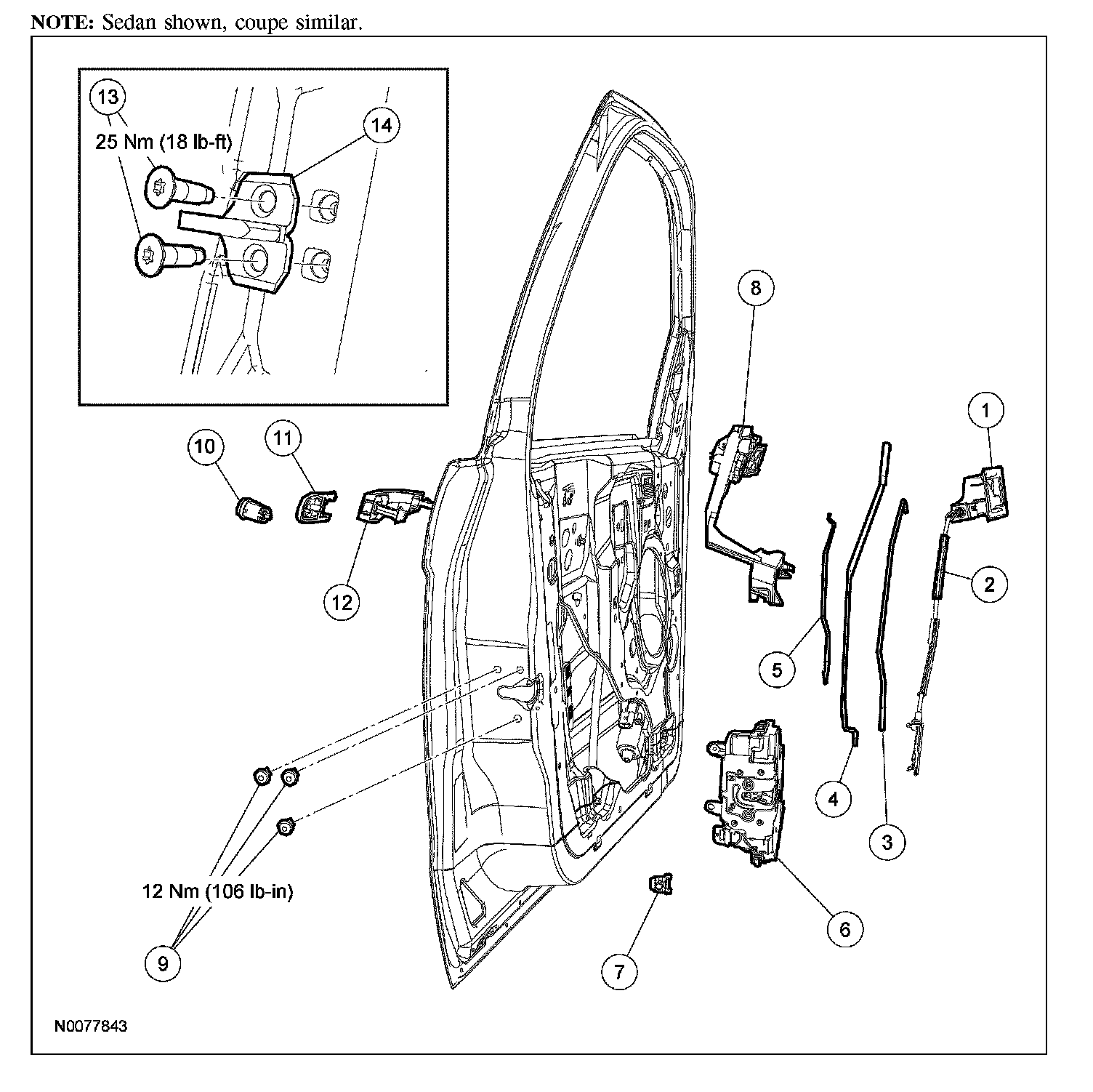

Exploded View

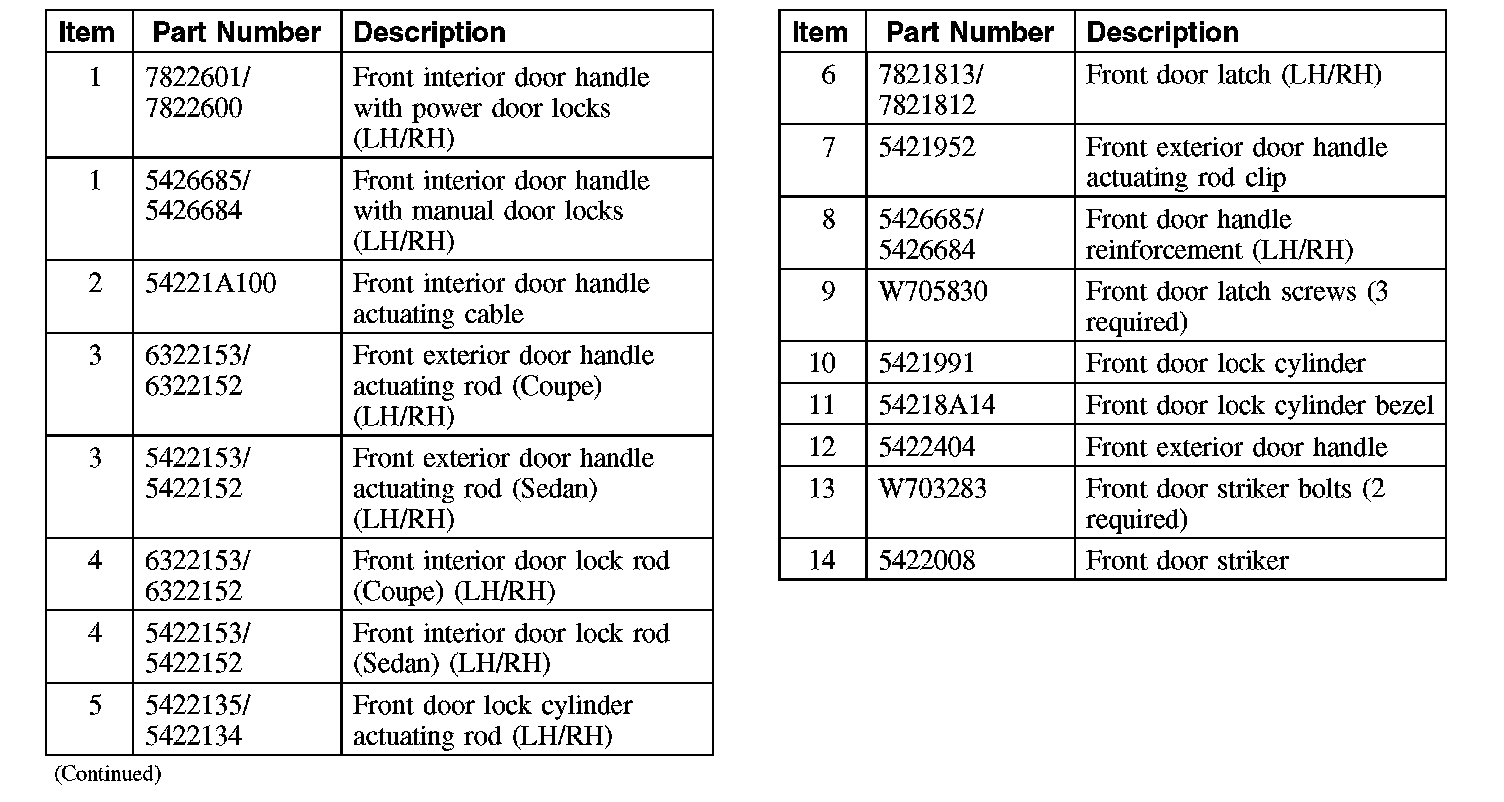

Part 1:






Part 2:











Removal and Installation
1. Remove the front door trim panel.
2. Release the front door handle retaining tabs and remove the front interior door handle.







3. To install, reverse the removal procedure.
