Exterior Mirror Cover

EXTERIOR MIRROR COVER

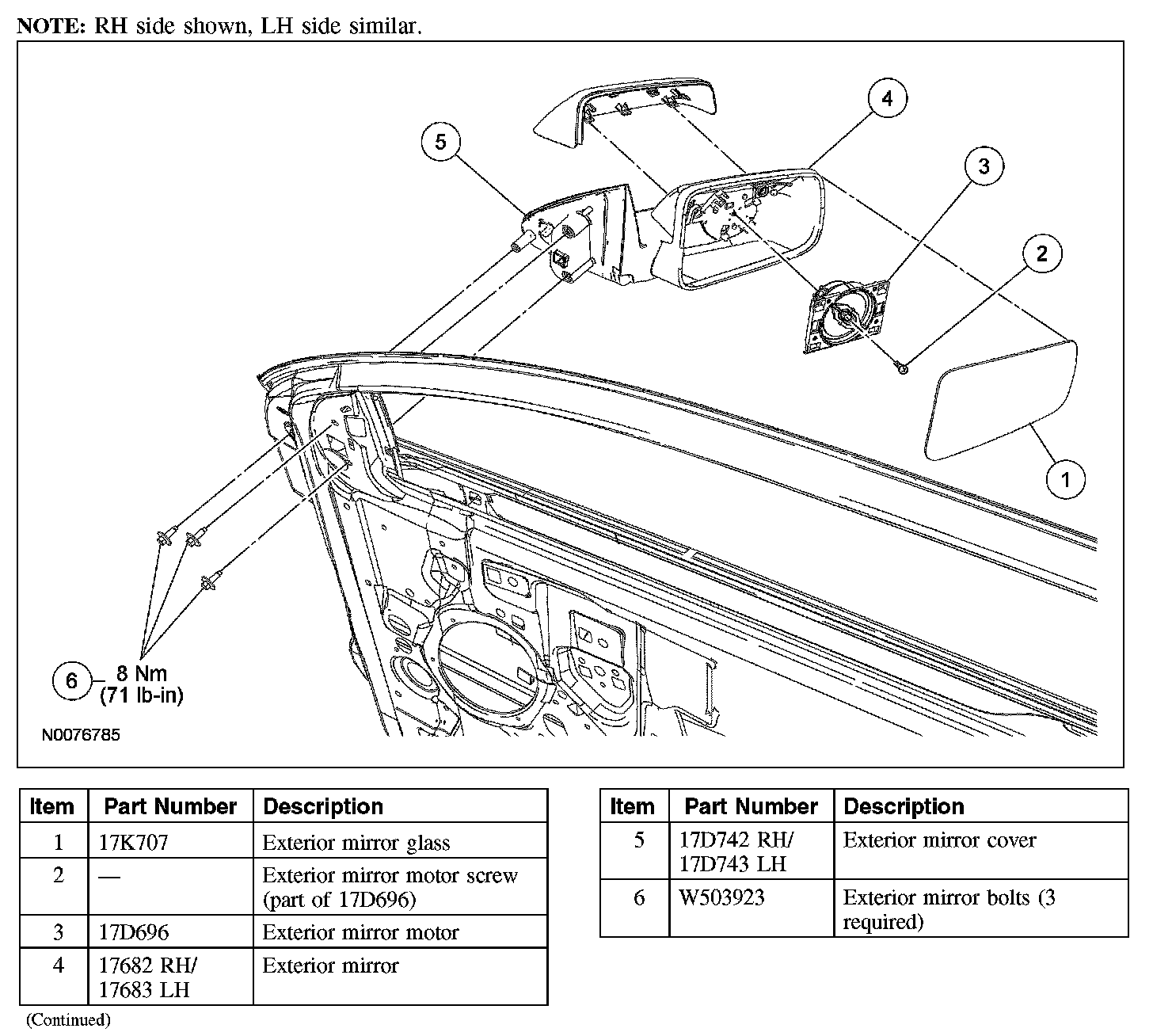

Exploded View







Removal and Installation
1. Remove the exterior mirror glass.

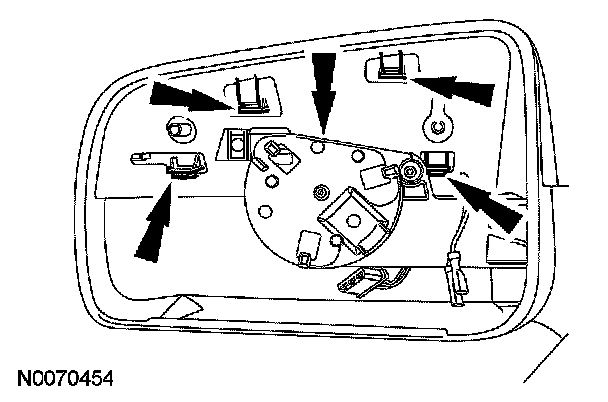

2. NOTE: The exterior mirror motor is removed for clarity. It is not necessary to remove the exterior mirror motor when performing this step.

Release the 5 exterior mirror cover retaining tabs.

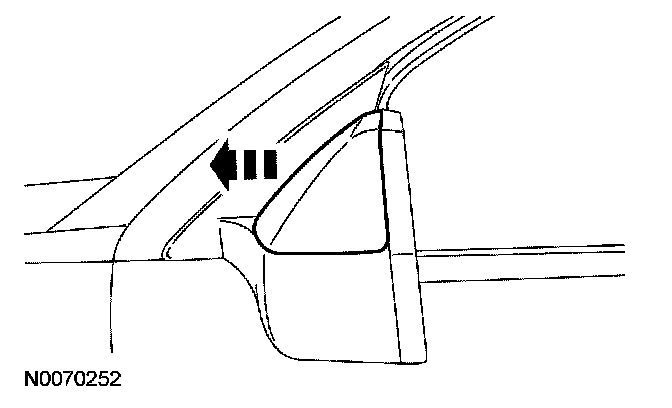

3. Remove the exterior mirror cover.
- Pull the exterior mirror outward.







4. To install, reverse the removal procedure.
