Home >> Ford >> 2008 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Relay >> Heated Seat Relay, Passenger

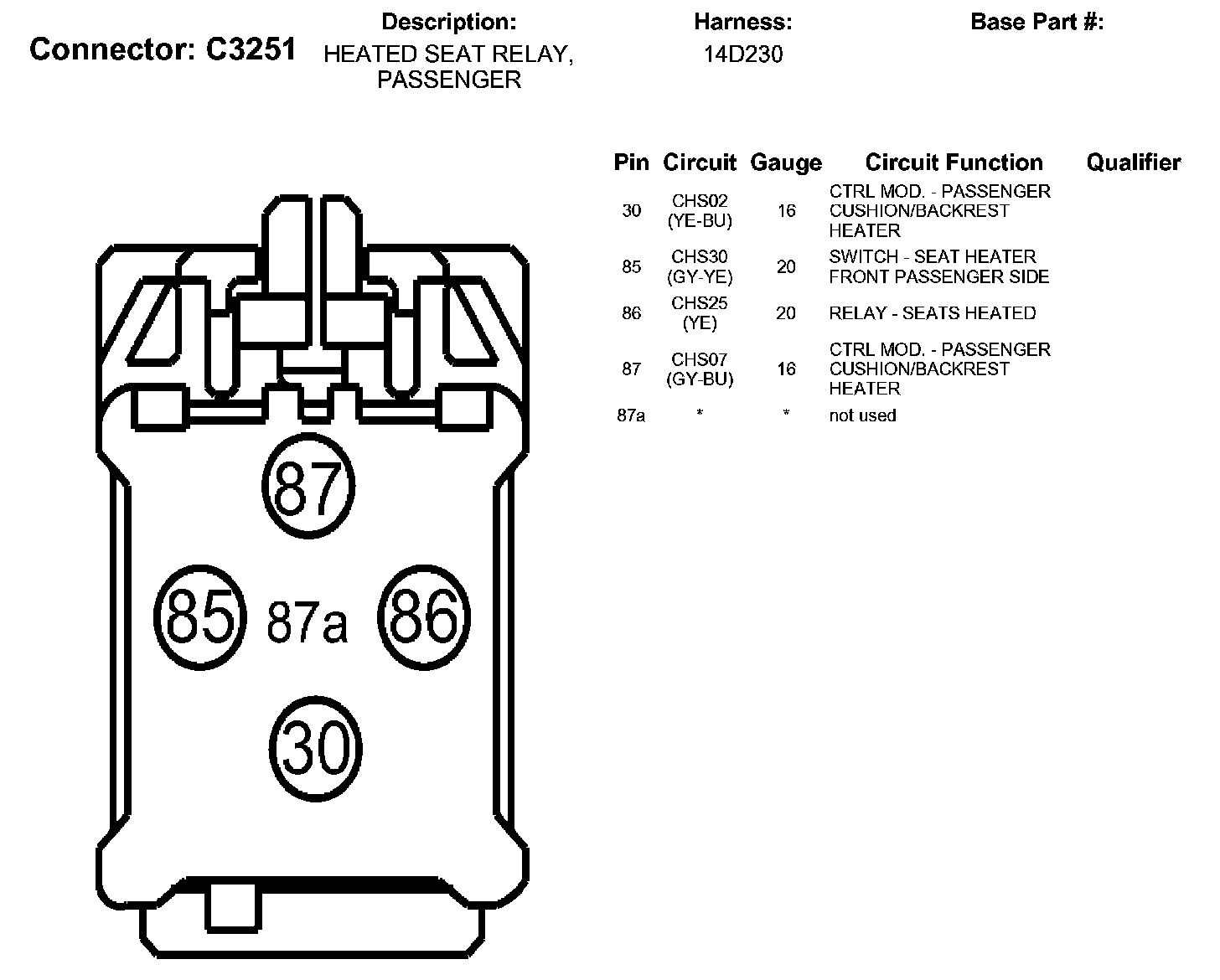

Heated Seat Relay, Passenger

C3251:
