Oil Pan, Engine

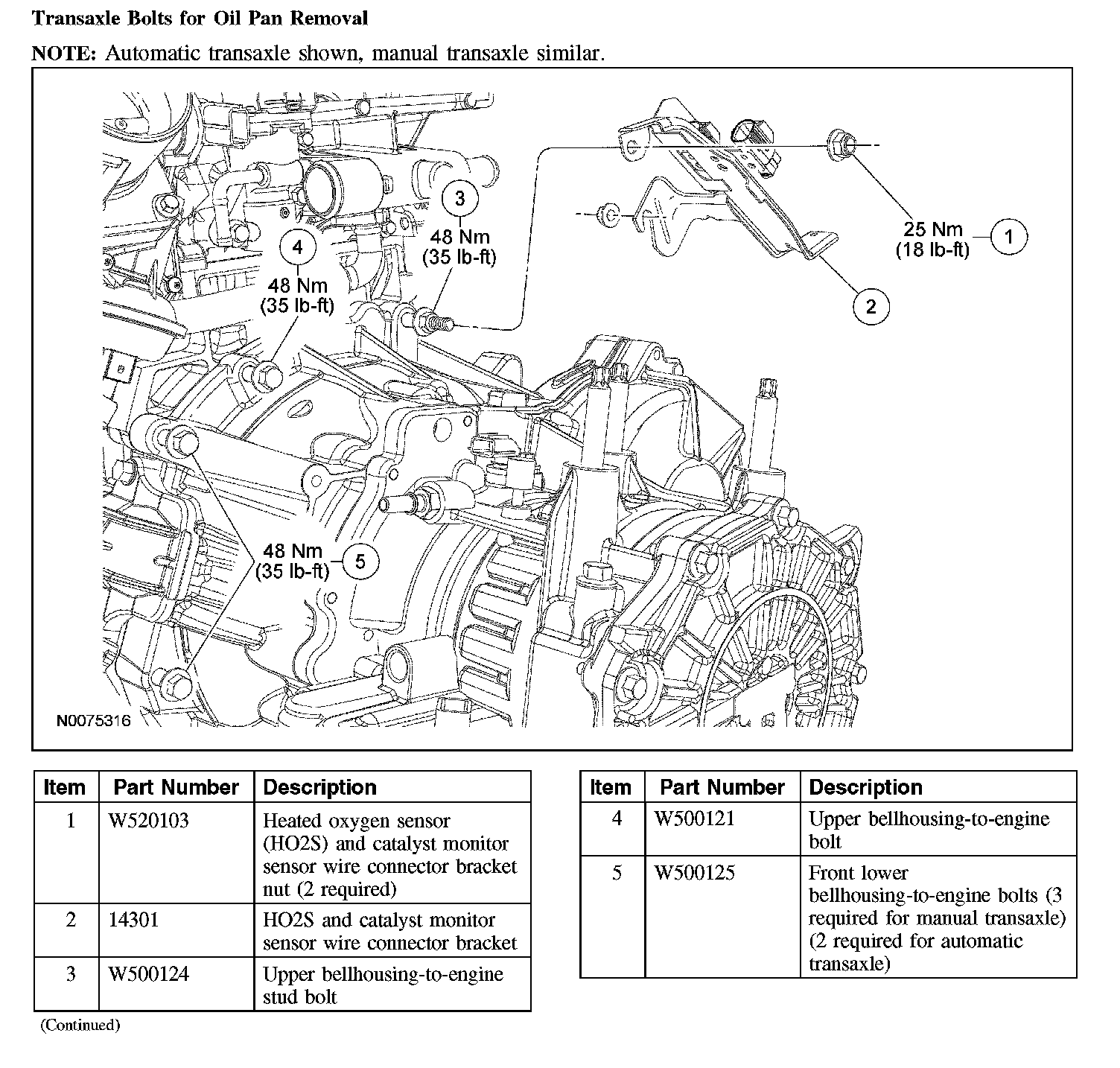

Transaxle Bolts for Oil Pan Removal

Transaxle Bolts for Oil Pan Removal:





Oil Pan, Oil Pump Screen and Pickup Tube

Oil Pan, Oil Pump Screen and Pickup Tube (Part 1):




Oil Pan, Oil Pump Screen and Pickup Tube (Part 2):
