Ignition Switch Lock Cylinder: Service and Repair

IGNITION LOCK CYLINDER







Removal and Installation

NOTE: For non-functional ignition lock cylinders, the steering column lock module has to be replaced.

1. Remove the passive anti-theft system (PATS) transceiver.
2. Remove the ignition lock cylinder.

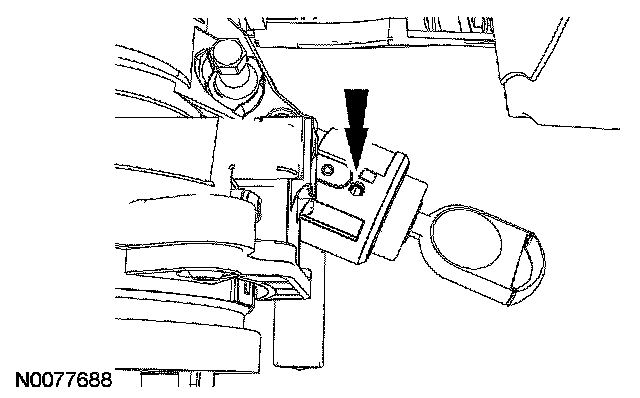

1 Insert and turn the ignition key to the ACC position.
2 Using a suitable tool, press the detent.
3 Remove the lock cylinder.







3. To install, reverse the removal procedure.
