Part 1

Transaxle

Special Tool(s)

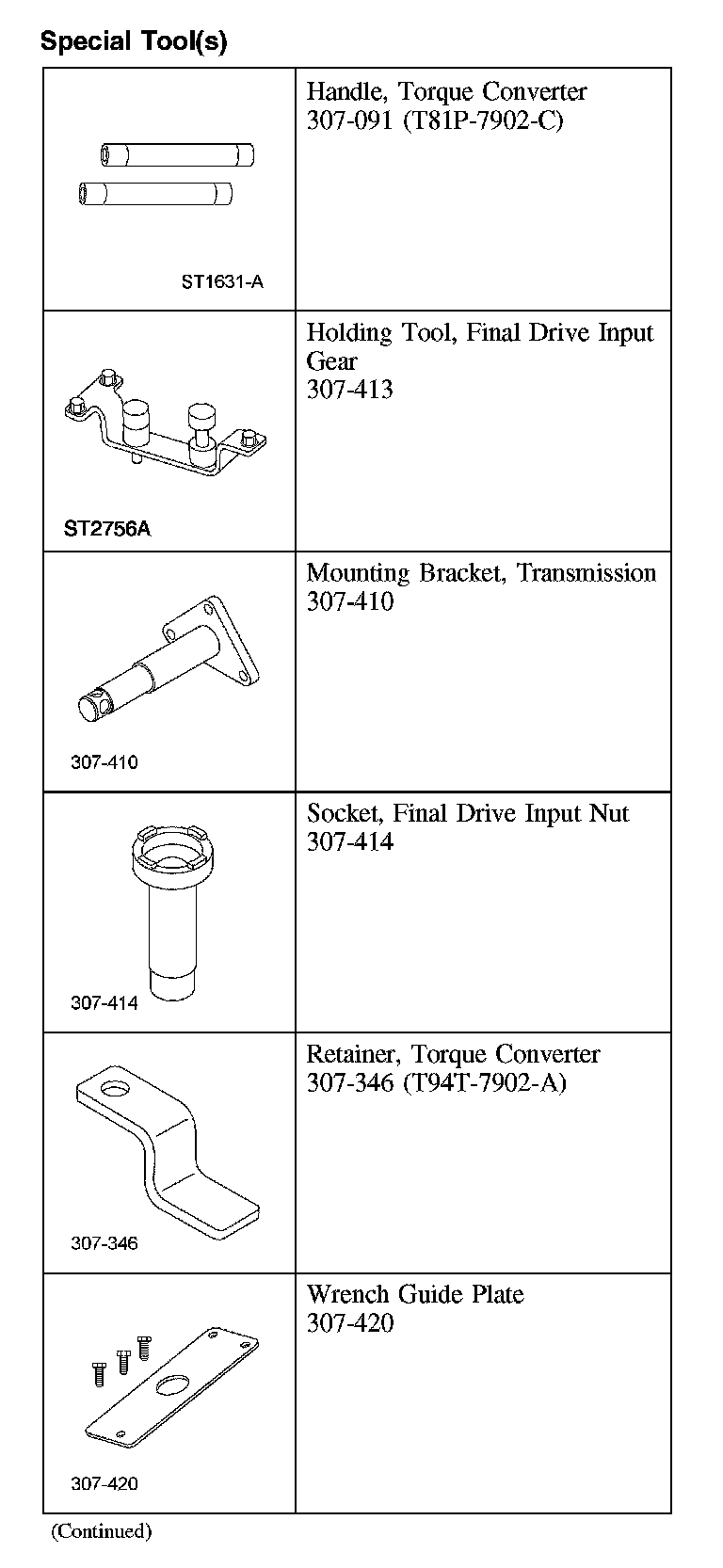

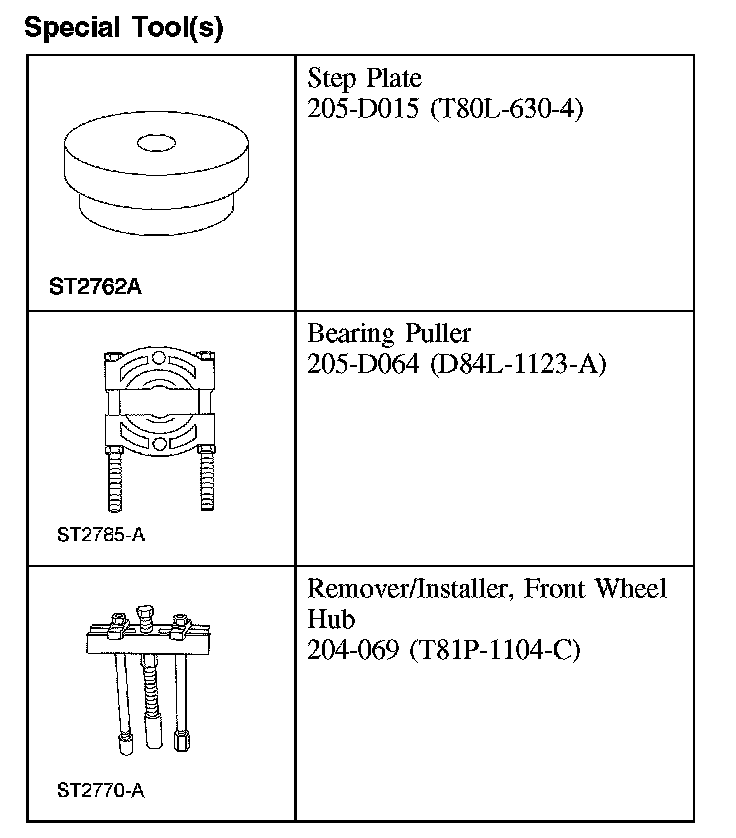

Special Tool(s) (Part 1):

Special Tool(s) (Part 2):

Material

Material:

Disassembly (Steps 1-34)

1. CAUTION: If, during repair work, abrasive particles are found in the transmission fluid (particles from the clutch or metal chips or foreign material), the transaxle must be disassembled completely and thoroughly cleaned. Also, clean the fluid tubes, fluid cooler and torque converter carefully. In the case of extreme soiling of the fluid pipes, install a new fluid cooler and torque converter.

NOTE: In case of clutch abrasion, rinse the torque converter with clean automatic transmission fluid.

Inspect the transaxle during disassembly.

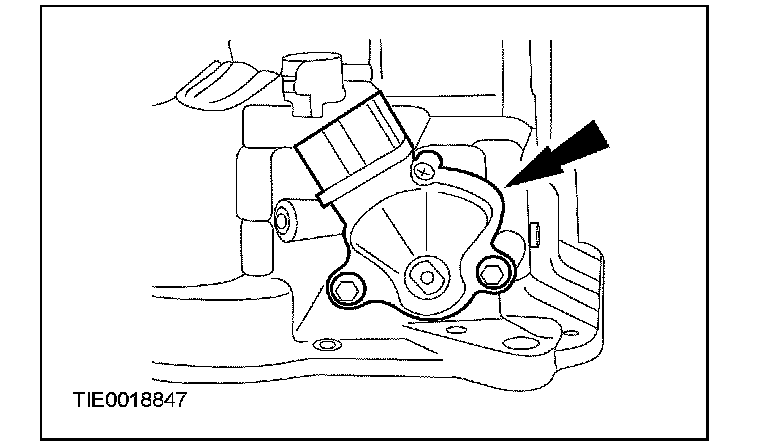

2. Remove the output shaft speed (OSS) sensor.
1 Remove the bolt.
2 Remove the OSS.

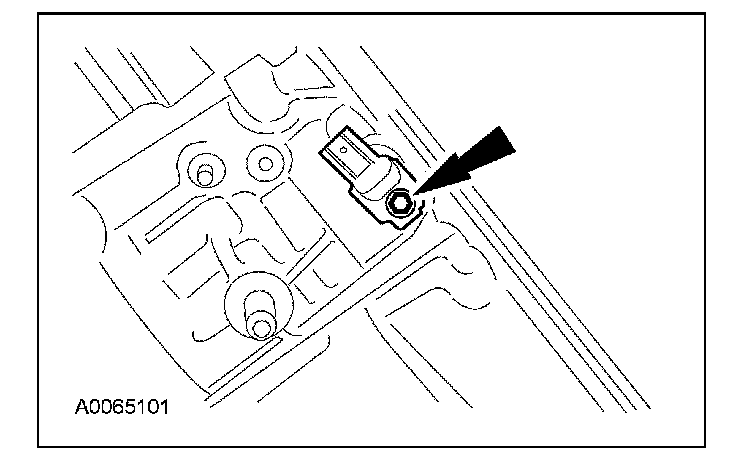

3. Remove the turbine shaft speed (TSS) sensor.

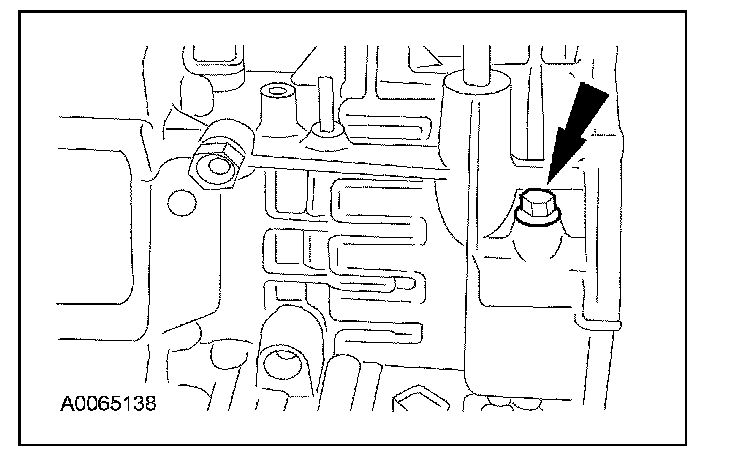

4. CAUTION: Do not use air tools or damage to the transaxle manual control valve internal linkage can occur.

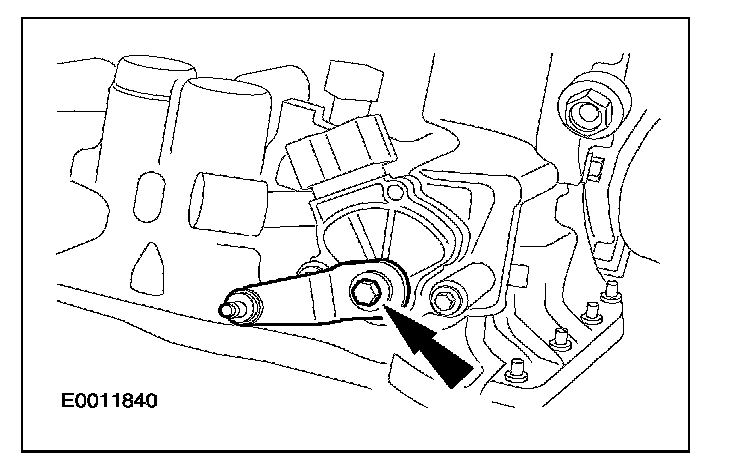

While holding the manual control lever, remove the manual control lever bolt.

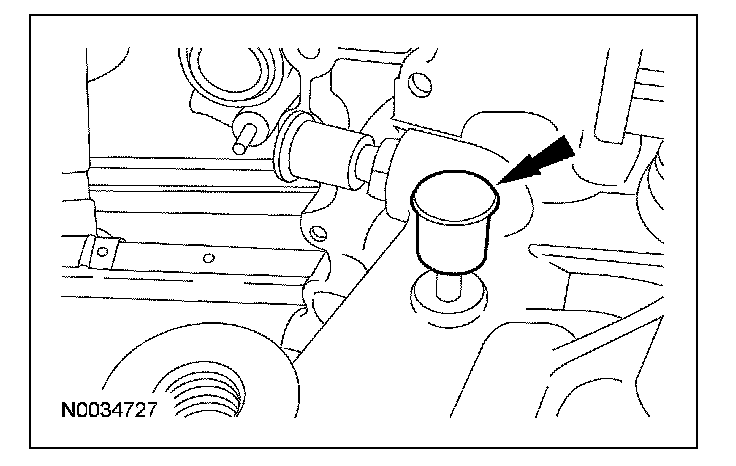

5. Remove the transmission range (TR) sensor.

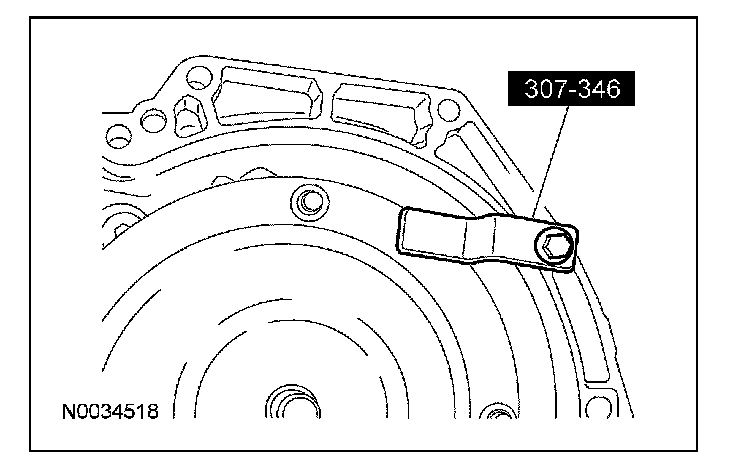

6. Remove the special tool.

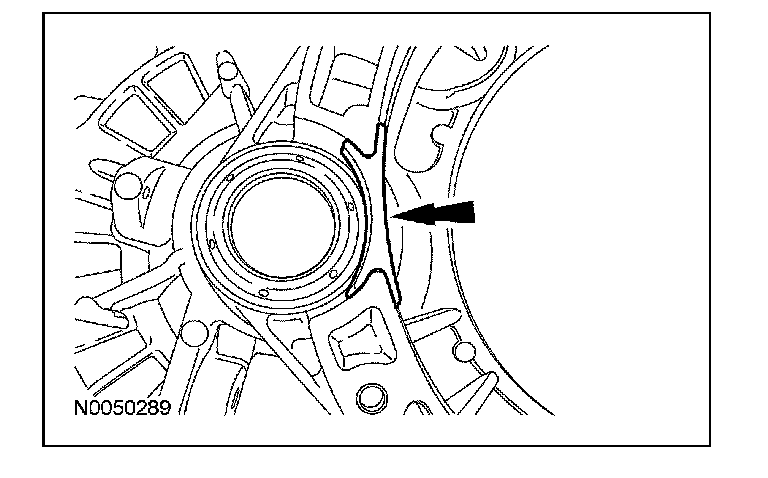

7. Remove the rubber vent cap.

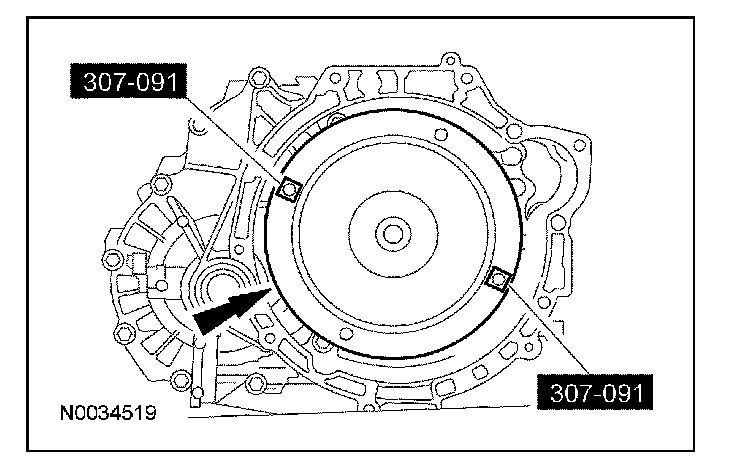

8. CAUTION: Do not tilt the torque converter when removing it, to prevent damaging the torque converter hub.

NOTE: The torque converter is filled with transmission fluid. Drain into a suitable container.

Using the special tool, remove the torque converter.





9. Remove the differential opening cover.





10. Remove the LH and RH axle seals.

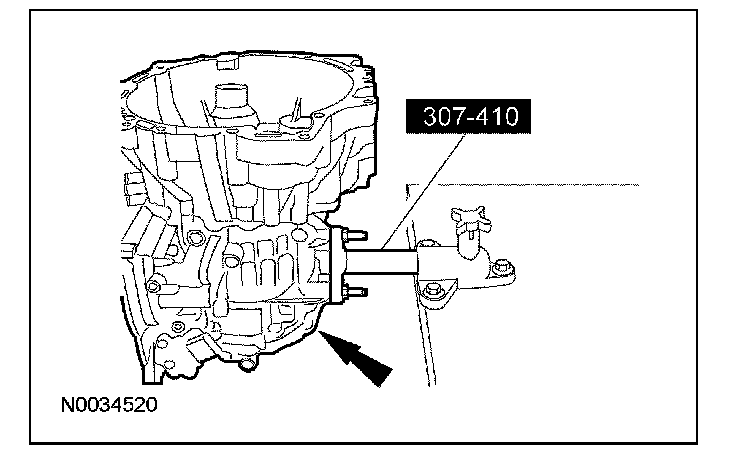

11. Using the special tool, mount the transaxle to a bench.

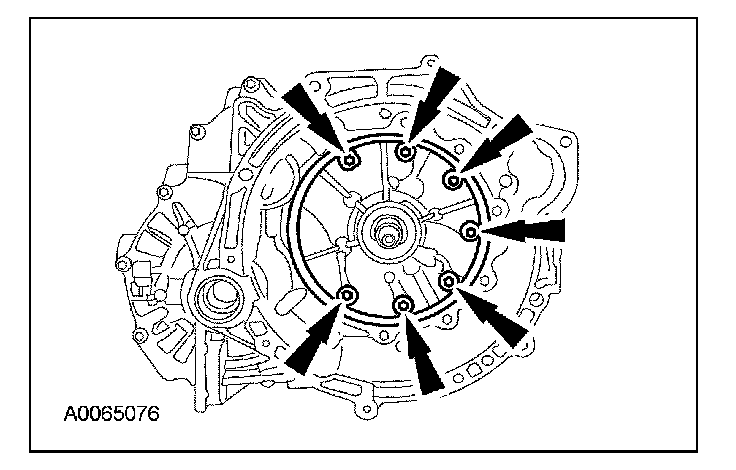

12. Remove the bolts.

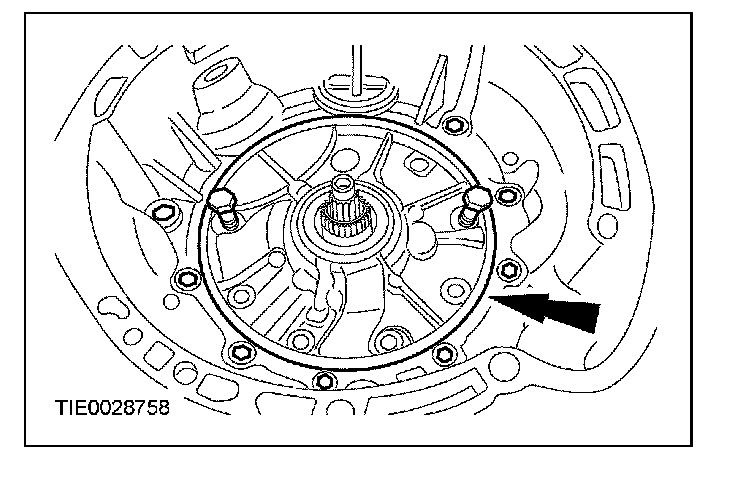

13. Using the two 10-mm (50 mm [2 inch] long) bolts, remove the fluid pump.

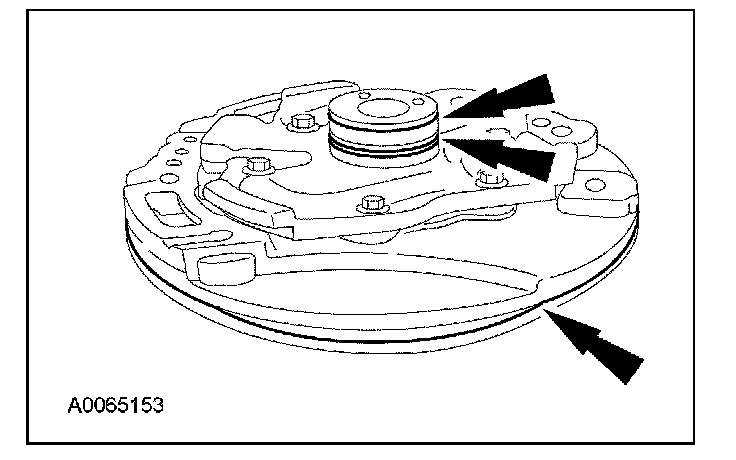

14. Remove the transmission fluid pump seals.

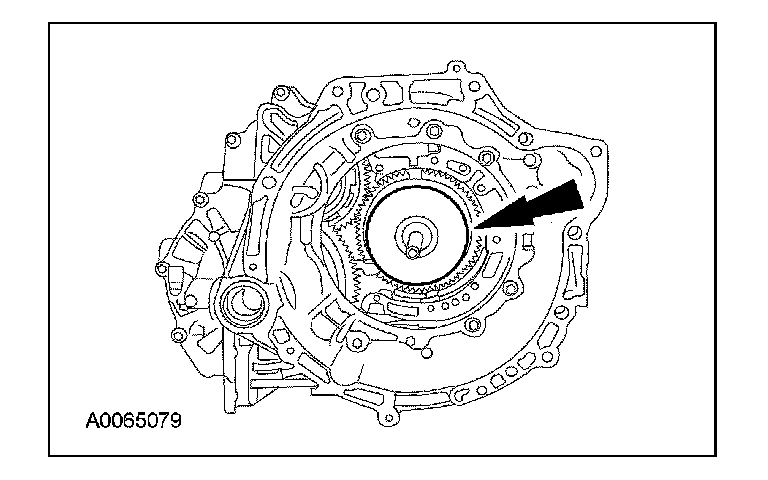

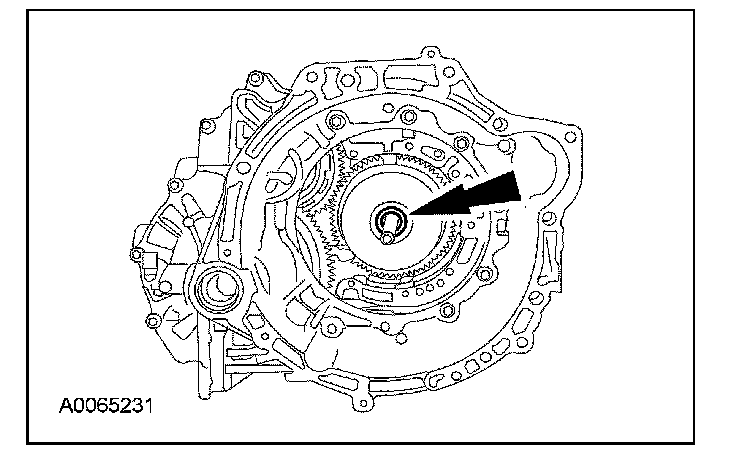

15. Remove the forward clutch thrust washer.

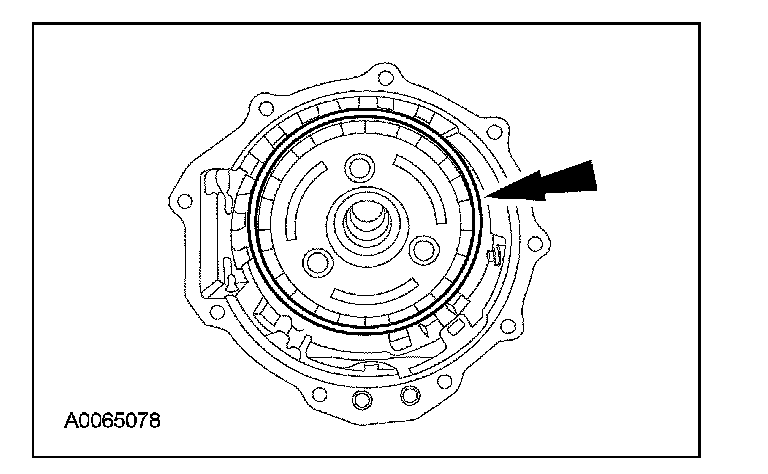

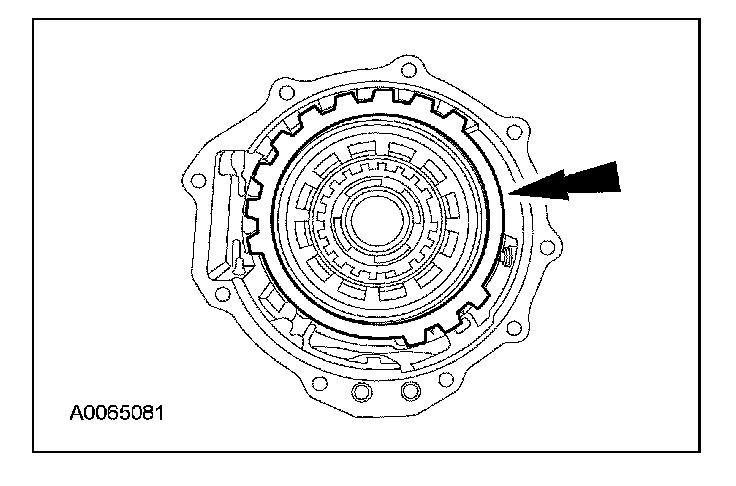

16. Remove the forward clutch assembly.





17. NOTE: Small levers will aid in the removal of the forward clutch hub.

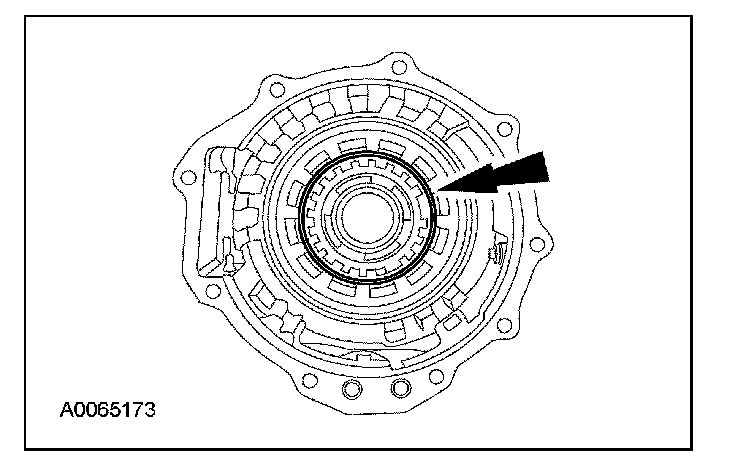

Remove the forward clutch hub.





18. Rotate the transaxle 180 degrees.
19. Remove the end cover.





20. Clean the silicone from the end cover and transaxle case surfaces thoroughly with metal surface prep.
21. Remove the direct clutch hub bearing shim.

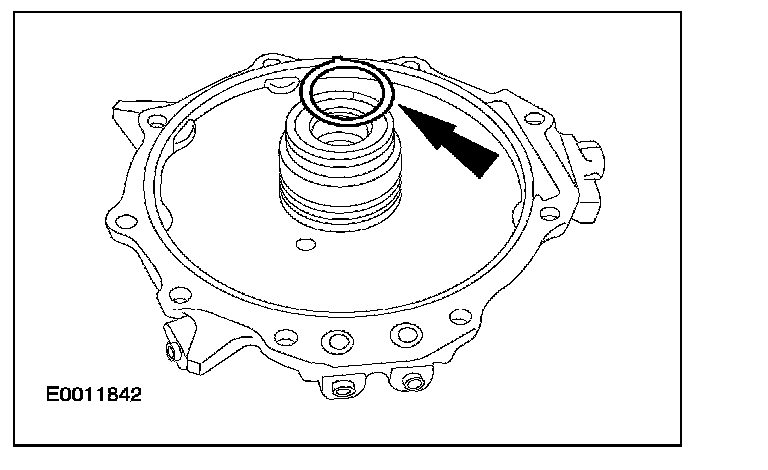

22. Remove the end cover seals.





23. Remove the end cover-to-case seals.





24. Remove the direct clutch cylinder thrust bearing.





25. Remove the intermediate/overdrive band anchor bolt.





26. Remove the intermediate/overdrive band.





27. Remove the intermediate/overdrive drum assembly.





28. Remove the planet gear assembly.

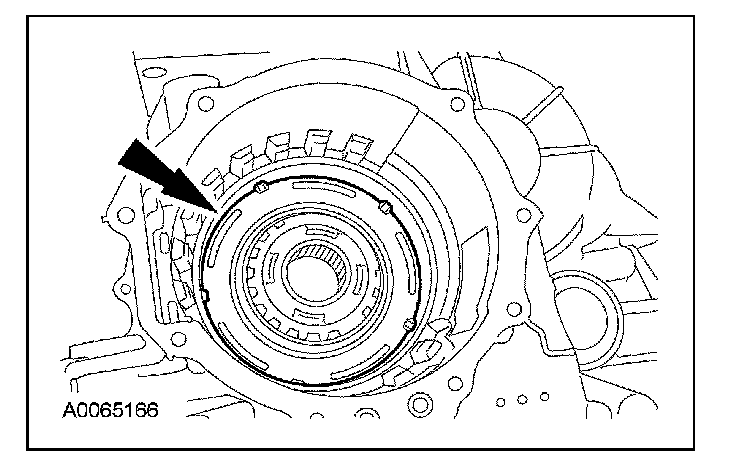

29. Remove the low/reverse clutch plate retaining ring.





30. Remove the low/reverse clutch plates, pressure plate and wave spring.





31. Remove the low one-way clutch retaining ring.





32. Remove the low one-way clutch inner race.





33. Remove the low/reverse clutch return spring.





34. Remove the low/reverse clutch piston.
