Drive Belt: Service and Repair

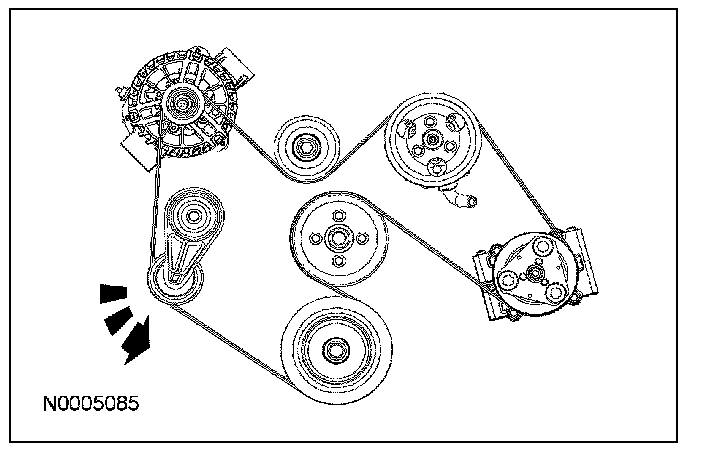

Accessory Drive Belt - 4.0L SOHCFront End Accessory Drive (FEAD) - Exploded View 4.0L SOHC:
Removal and Installation 1.
Using a suitable belt tensioner release tool, rotate the accessory drive belt tensioner counterclockwise and remove the accessory drive belt.
2.
NOTE: Refer to the illustration for correct
drive belt routing.
To install, reverse the removal procedure.
