Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2008
>>
Mustang V8-5.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Coil
>>
Ignition Coil
Ignition Coil

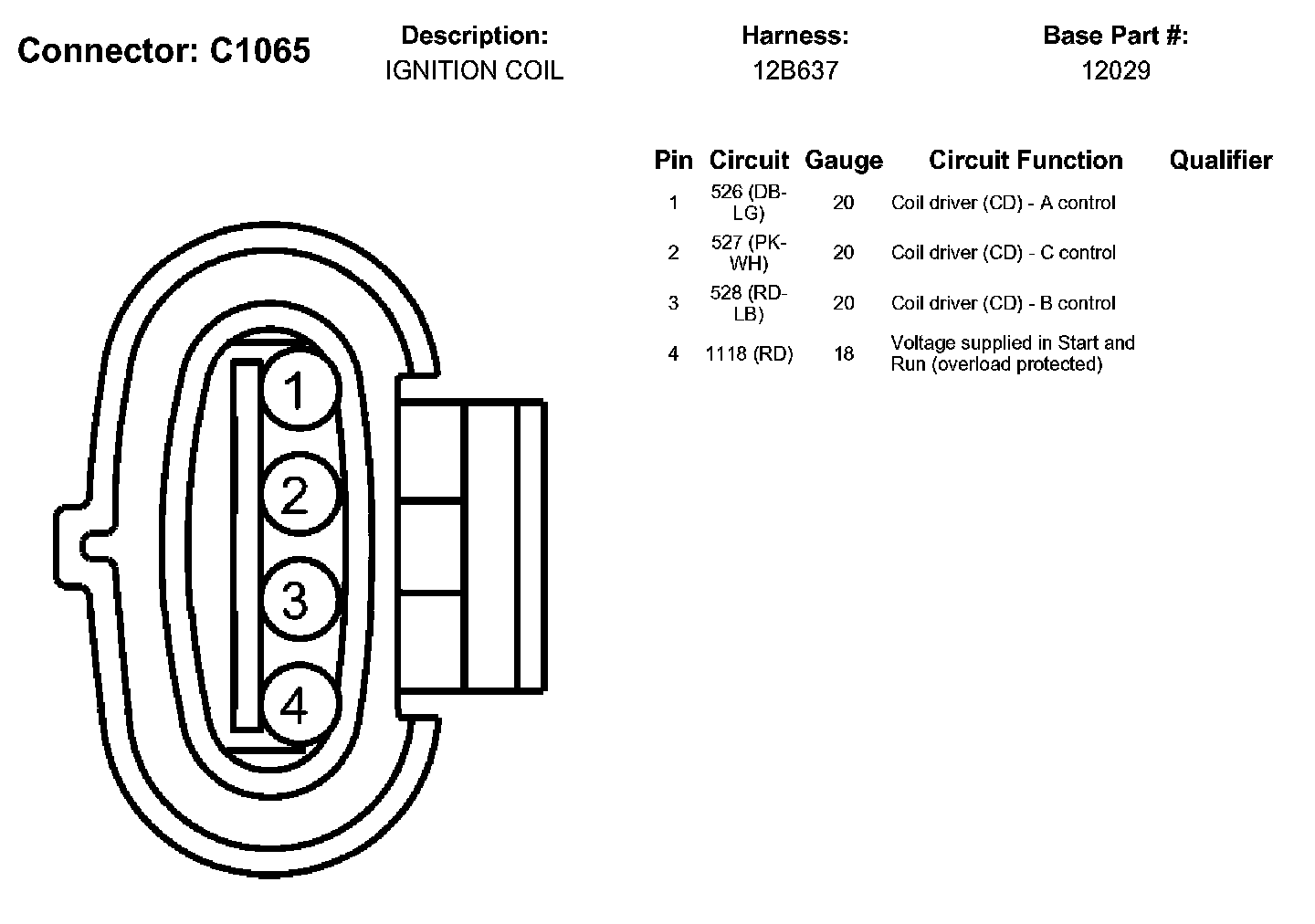

C1065:
