Test A: Steering Has Lack of Assist or Inconsistent Assist

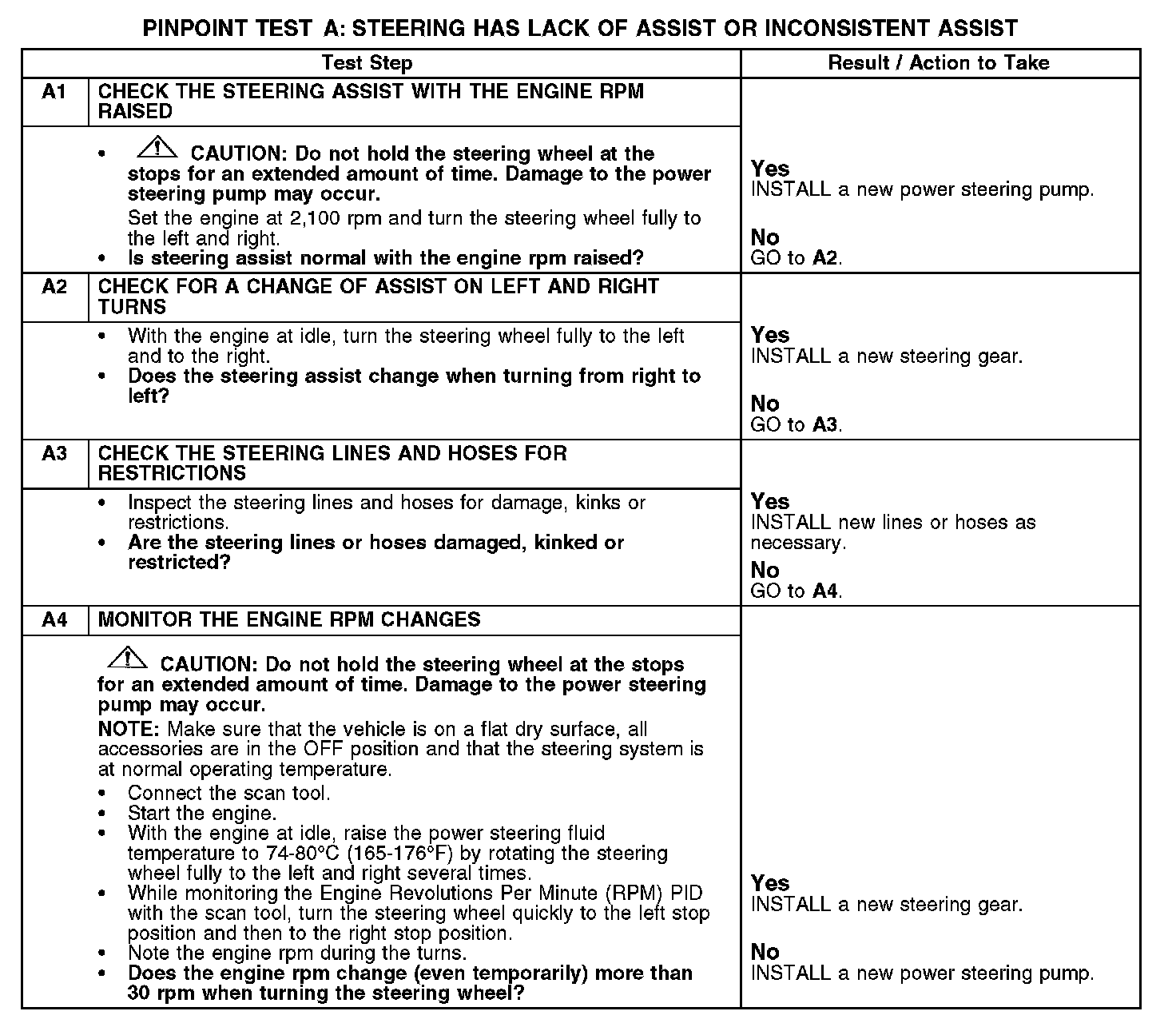

Pinpoint Test A: Steering Has Lack of Assist or Inconsistent Assist

NOTE: Hard steering or lack of assist is experienced when the steering wheel effort exceeds specifications. Hard steering can remain constant through the full turn, occur near the end of a turn or differ right to left. It is important to know the difference between hard steering/lack of assist and poor returnability/sticky steering.

This pinpoint test is intended to diagnose the following:
^ Steering linkage
^ Steering column shaft
^ Steering gear

A1-A4:
