Overdrive Planetary and One-Way

Overdrive Planetary and One-Way

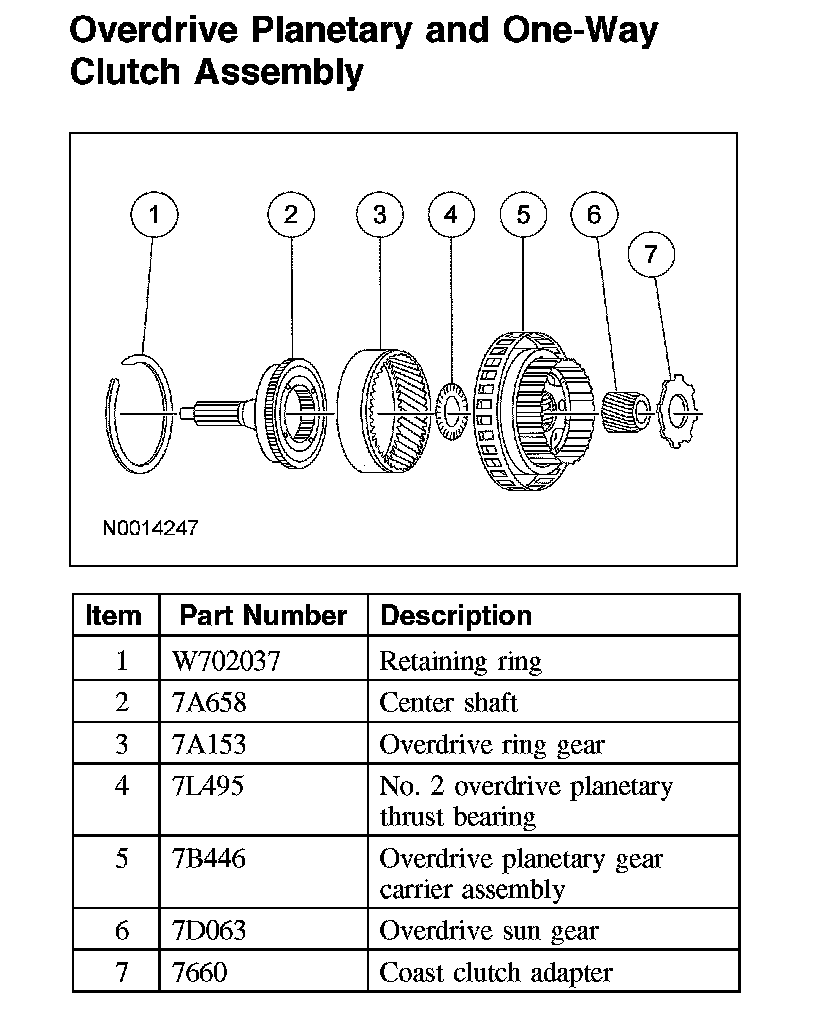

Overdrive Planetary and One-Way Clutch Assembly:

Clutch Assembly

Disassembly

1. NOTE: The overdrive one-way clutch is serviced with the center shaft assembly.

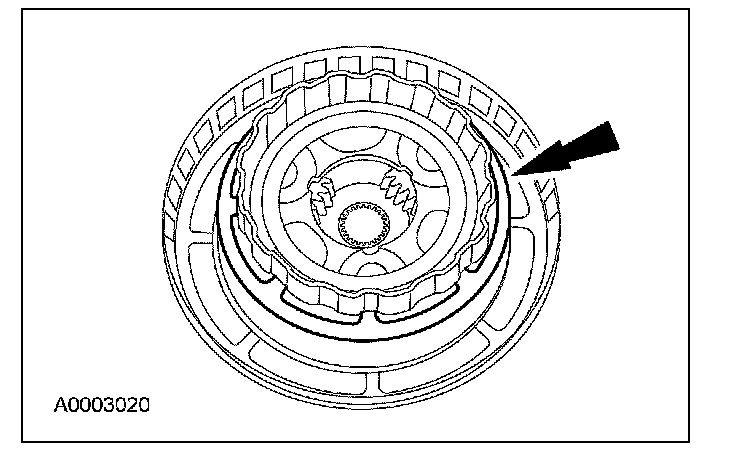

Remove the center shaft from the overdrive ring gear.
1 Remove the overdrive center shaft retaining ring.
2 While rotating counterclockwise remove the center shaft from the ring gear.





2. CAUTION: Do not remove the overdrive one-way clutch. Damage to the clutch may occur if it is removed.

Clean and inspect the overdrive one-way clutch and center shaft.
^ Inspect for cracks in the roller cage and wear on the roller clutch, and the press fit of the one-way clutch to the center shaft.





3. Inspect the one-way clutch.
^ Temporarily insert the overdrive planetary gear carrier assembly into the one-way clutch rollers for verification of the one-way clutch.
^ The planetary gear must rotate counterclockwise and hold when rotated clockwise.
^ Remove the planetary gear carrier assembly.





Assembly
1. Install the center shaft and one-way clutch.
1 Install the center shaft and one-way clutch.
2 Install the center shaft retaining ring.
