Register - Driver Side

REGISTER - DRIVER SIDE

Removal and Installation
1. Remove the audio unit.

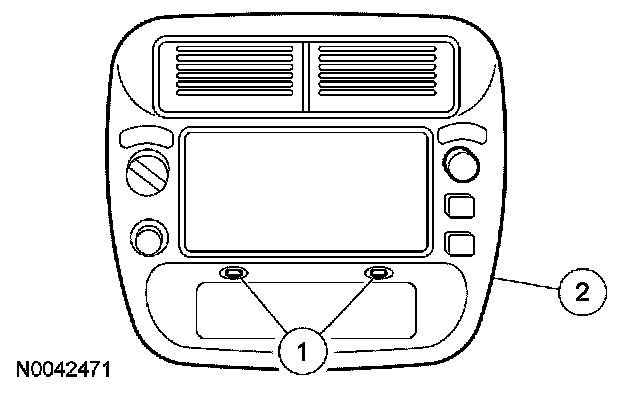

2. Remove the center instrument panel finish panel.
1 Remove the 2 screws.
2 Remove the center instrument panel finish panel.
- Disconnect the electrical connectors.

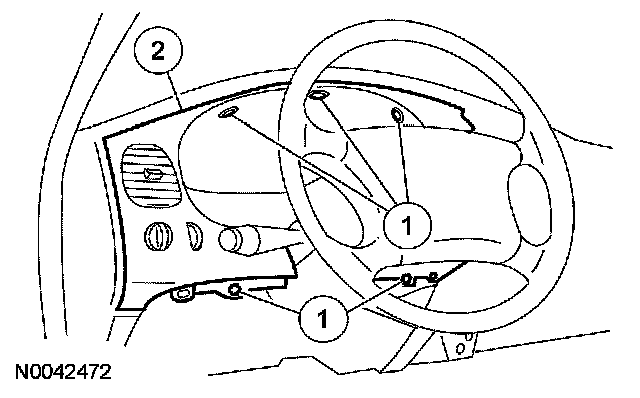

3. Remove the instrument cluster finish panel.
1 Remove the 5 screws.
2 Remove the instrument cluster finish panel.
- Disconnect the electrical connectors.

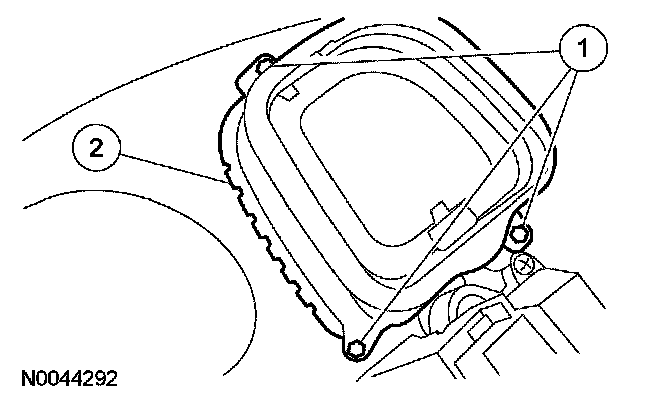

4. Remove the LH instrument panel register.
1 Remove the 3 screws.
2 Remove the driver side register.







5. To install, reverse the removal procedure.
