Register - Passenger Side

REGISTER - PASSENGER SIDE

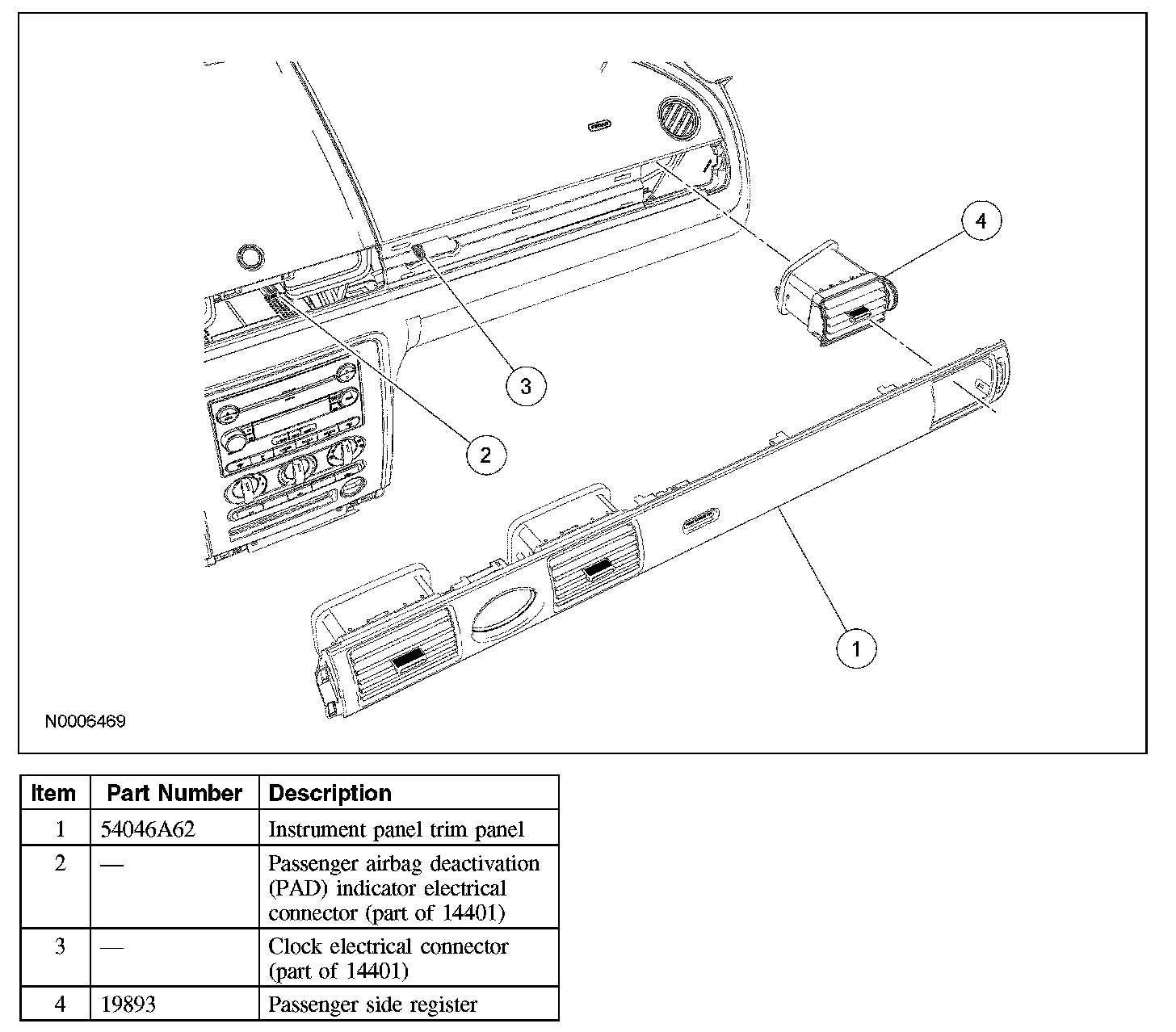

Removal and Installation
1. Remove the instrument cluster finish panel. Dashboard / Instrument Panel
2. Remove the instrument panel trim panel.
3. Disconnect the passenger airbag deactivation (PAD) indicator electrical connector.
4. Disconnect the clock electrical connector (if equipped).
5. Release the 4 clips and remove the passenger side register.
6. To install, reverse the removal procedure.
