Air Duct: Service and Repair

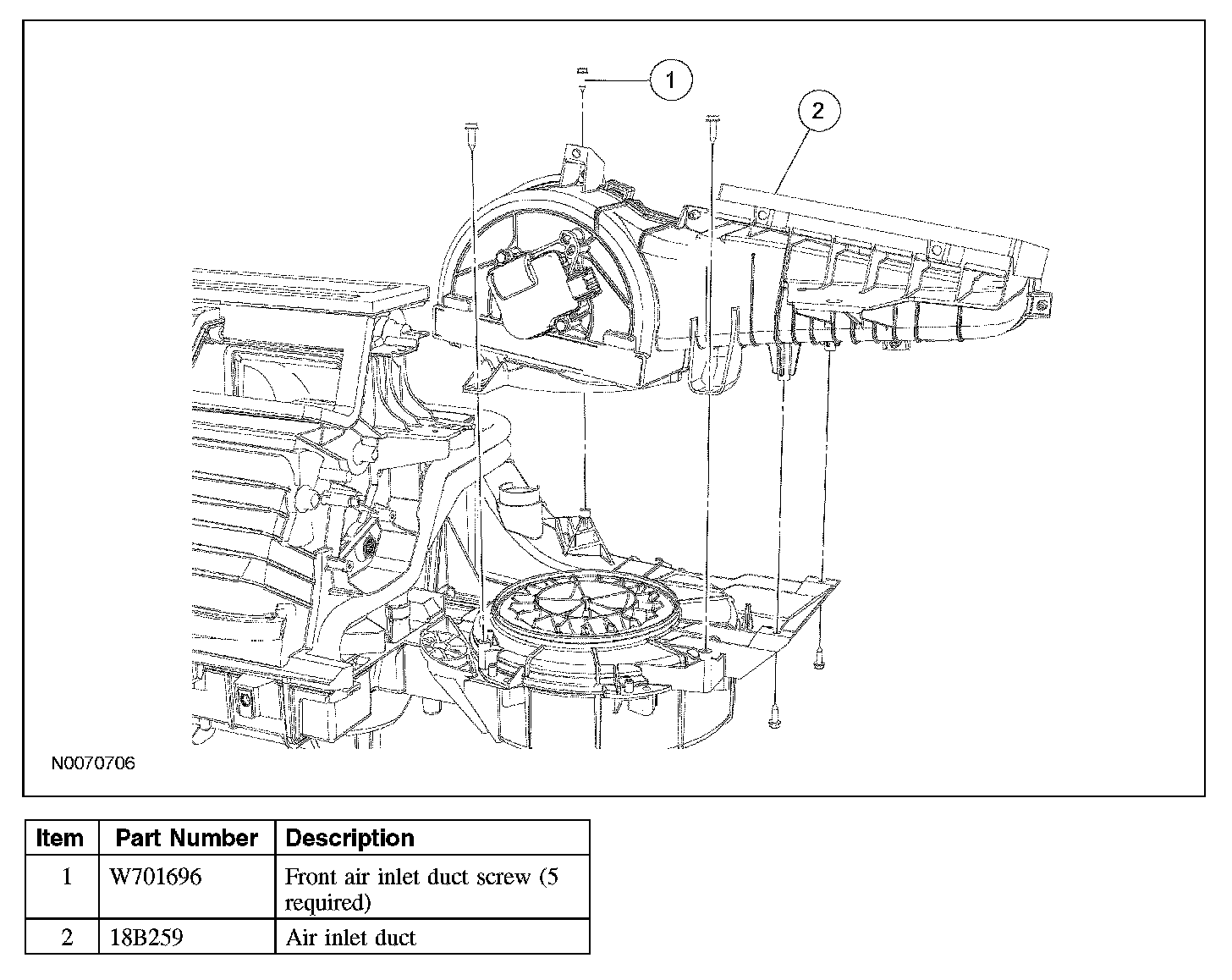

AIR INLET DUCTRemoval and Installation 1.
Remove the
heater core and evaporator core housing.
Housing Assembly HVAC 2.
Remove the 5 air inlet duct screws.
3.
Remove the air inlet duct.
4.
To install, reverse the removal procedure.
