Exterior Mirror Cover




Exterior Mirror Cover

Removal

1. Position the exterior mirror glass in the full downward position.

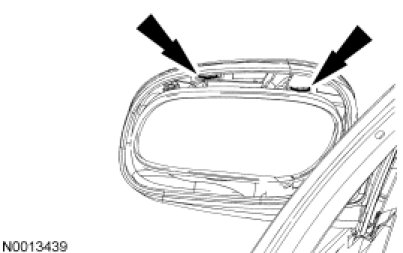

2. Using a suitable tool, release the 2 locking tabs from the exterior mirror cover.





3. Position the exterior mirror glass in the full in position.

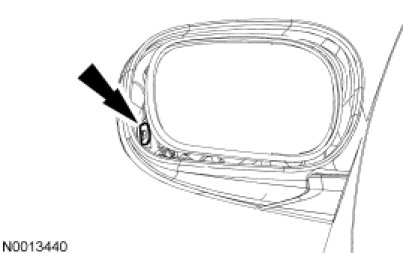

4. Using a suitable tool, release the locking tab and remove the exterior mirror cover.





Installation

1. Position the exterior mirror cover on the exterior mirror.

2. Place a hand against the back of the exterior mirror cover and press the cover in place until it is fully seated.
