Blower Motor: Service and Repair




Blower Motor









Removal and Installation

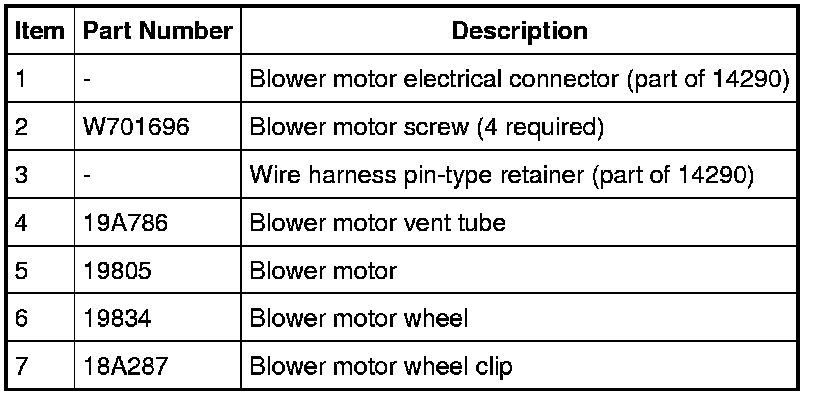

1. Disconnect the blower motor electrical connector.

2. Detach the wire harness pin-type retainer above the blower motor.

3. Remove the blower motor vent tube.

4. Remove 4 blower motor screws.

5. Remove the blower motor.

6. NOTICE: Prior to removing a wheel that is to be reused, clean any corrosion from the blower motor shaft to prevent damage to the wheel mounting shaft.

Remove the blower motor wheel clip.

7. Remove the blower motor wheel.

8. To install, reverse the removal procedure.
