Output Shaft Speed (OSS) Sensor

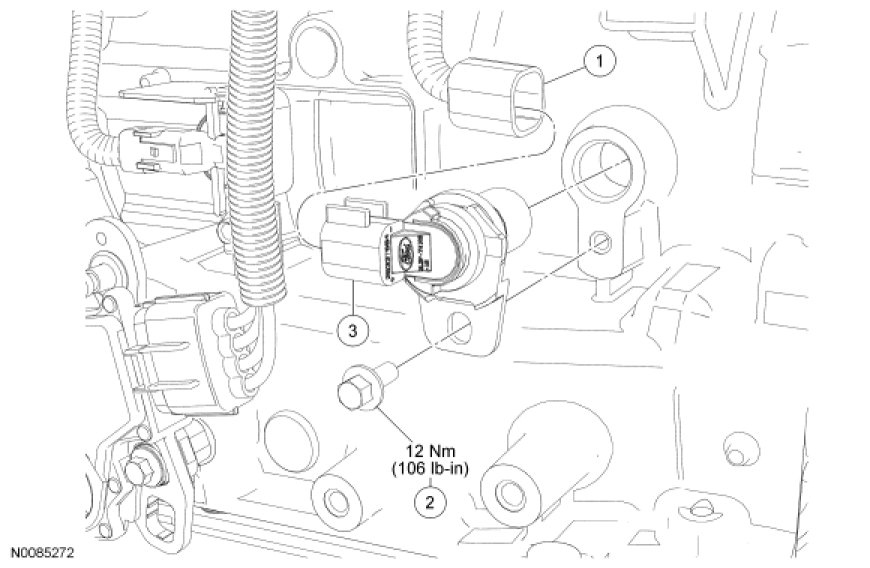

4R70E/4R75EOutput Shaft Speed (OSS) SensorRemoval and Installation 1.
With the vehicle in NEUTRAL, position it on a hoist.
2.
Disconnect the Output Shaft Speed (OSS) sensor connector.
3.
Remove the OSS sensor bolt and the sensor.
-
To install, tighten to 12 Nm (106 lb-in).
4.
To install, reverse the removal procedure.
