P1116
P1116
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

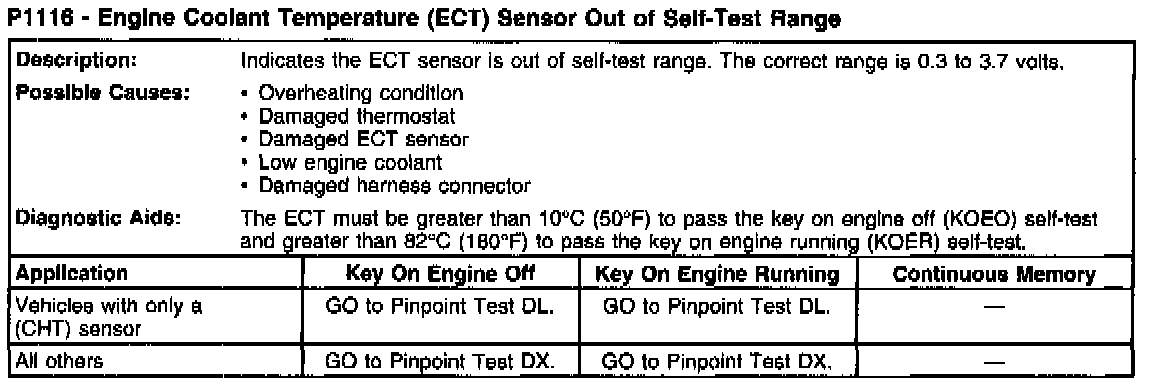

P1116 - Engine Coolant Temperature (ECT) Sensor Out of Self-Test Range:
