Exterior Mirror Glass

Exterior Mirror Glass

Removal

1. Position the exterior mirror glass in a upward position to obtain a gap at the bottom edge of the mirror.

2. WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

Disengage the exterior mirror glass.
- Insert a flat-blade screwdriver between the exterior mirror glass retaining tabs and the exterior mirror glass backing plate at the lower outboard corner, and rotate to separate the retaining tabs from the exterior mirror glass backing plate.

- Continue to insert and rotate the screwdriver until the remaining exterior mirror glass retaining tabs separate from the exterior mirror glass backing plate.

- Carefully pull the bottom outboard edge of the exterior mirror glass away from the exterior mirror housing.





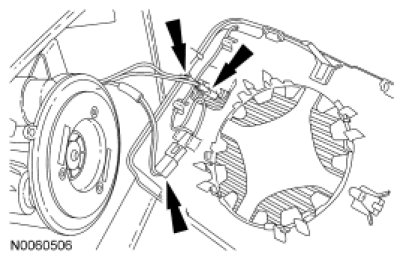

3. If equipped, disconnect the heated mirror and auto-dimming electrical connectors and remove the exterior mirror glass.





Installation

1. If equipped, connect the heated mirror and auto-dimming electrical connectors.





2. WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

Position the exterior mirror glass onto the exterior mirror motor.

3. NOTE: An audible click will be heard during installation.

Firmly press the exterior mirror glass until it snaps onto the exterior mirror motor.

4. Rotate the exterior mirror glass in all directions after the installation to make sure that all of the exterior mirror glass retaining clips are completely fastened.
