Wiper Pivot Arm - Rear

Wiper Pivot Arm - Rear

Removal and Installation

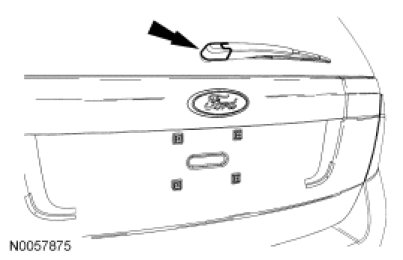

1. Open the rear wiper pivot arm nut cover.

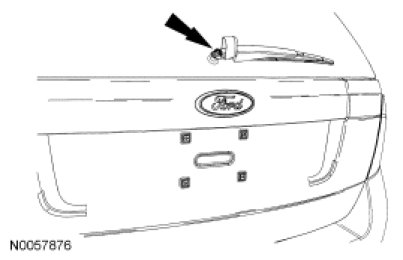

2. Remove the nut and the rear wiper pivot arm.
- To install, tighten to 12 Nm (106 lb-in).

3. To install, reverse the removal procedure.
- To adjust the rear wiper pivot arm, refer to Wiper Blade and Pivot Arm Adjustment - Rear Window Wiper Blade and Pivot Arm Adjustment - Rear Window.
