Register - Center

Register - Center, Edge

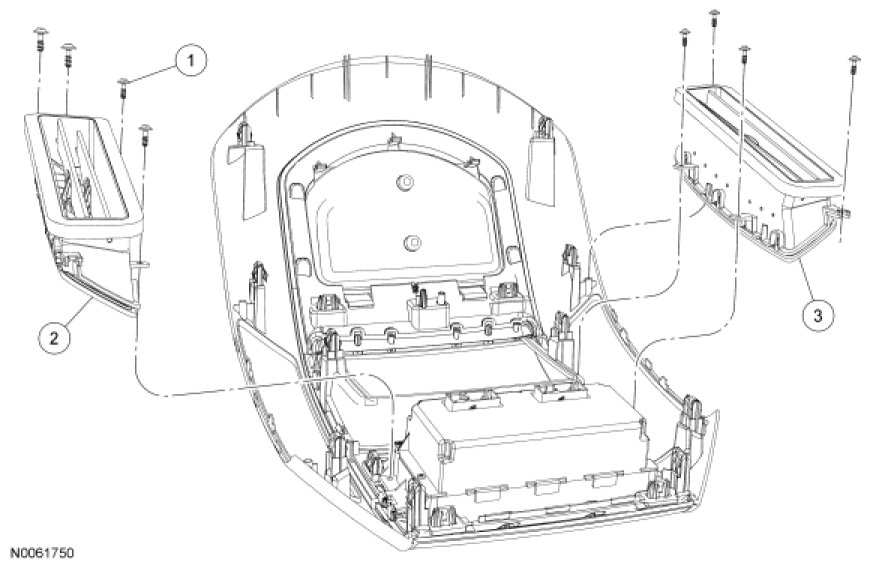

Removal and Installation

1. Remove the center instrument panel finish panel.

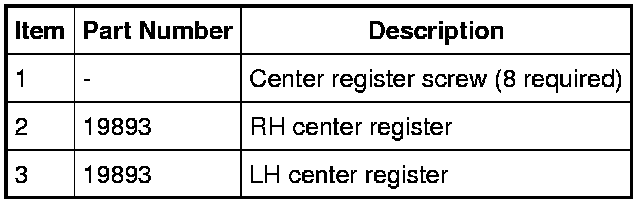

2. Remove the 8 center register screws.

3. Remove the center registers.

4. To install, reverse the removal procedure.
