Register - Driver and Passenger Side

Register - Driver and Passenger Side, Edge









Removal and Installation

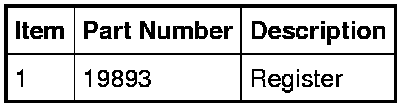

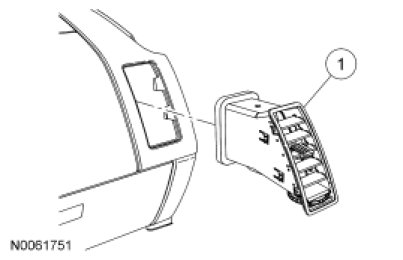

NOTE: Passenger side register shown, driver side similar.

1. NOTICE: Do not pry on the outer register trim bezel. The clips on the outer register trim bezel break if pried on to remove the register.

Working through the register vein openings, insert a suitable hook shaped pick behind each of the 4 register clips while gently pulling the register rearward with the hook to disengage the clip.

2. Remove the driver or passenger side instrument panel register.

3. To install, reverse the removal procedure.
