Rear Lamp Assembly - Liftgate

Rear Lamp Assembly - Liftgate

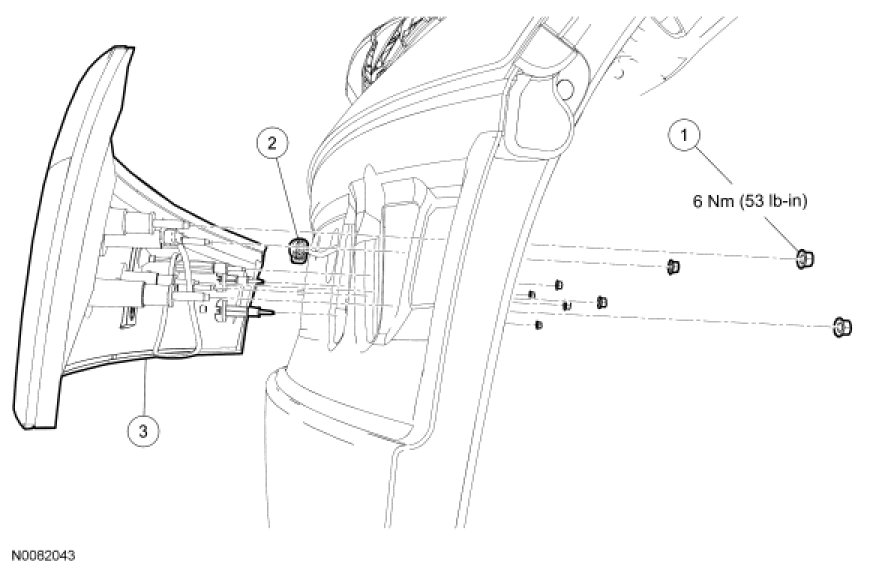

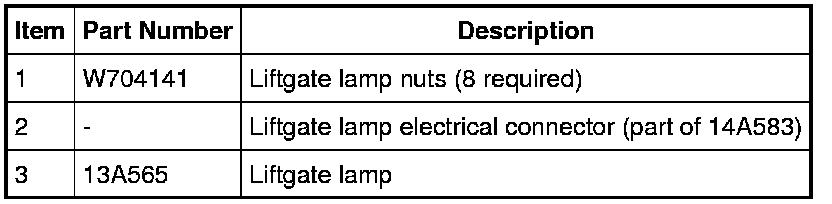

Removal and Installation

1. Remove the liftgate trim panel.

2. Disconnect the liftgate lamp electrical connector.

3. Remove the 8 nuts and the liftgate lamp.
- To install, tighten to 6 Nm (53 lb-in).

4. To install, reverse the removal procedure.
