Camshaft Bearing

NOTICE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions. If not reassembled in their original positions, severe engine damage may occur.

LH
Install the 8 camshaft caps and the 16 bolts.

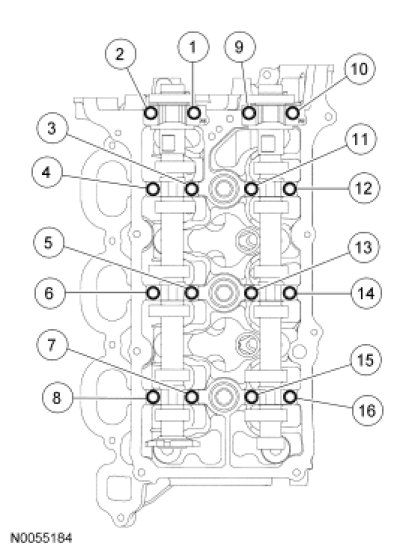

Tighten in the sequence shown to 10 Nm (89 lb-in).





RH
Install the 8 camshaft caps and the 16 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).
