Steering Column Shroud

Steering Column Shroud









Removal and Installation

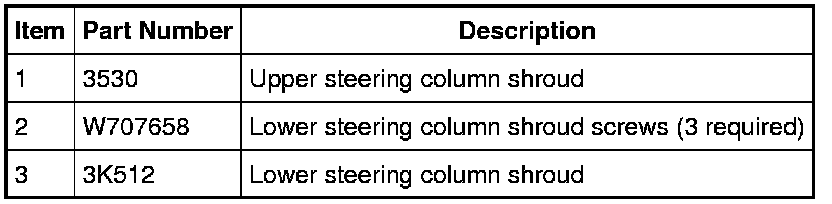

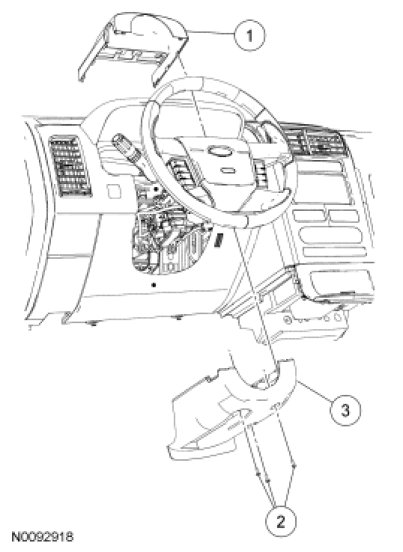

1. NOTE: Release the upper steering column shroud by pressing inward on the sides and lifting upwards.

Remove the upper steering column shroud.

2. Release the tilt lever, remove the 3 lower steering column shroud screws and the shroud.

3. To install, reverse the removal procedure.
