Transmission Reference Manual




6F50

Hydraulic System

Transmission Fluid Level

The transmission fluid level is checked with the transaxle at normal operating temperature between 80°C and 93°C (175°F and 200°F).

The transmission fluid level indicator is part of the transmission fluid filler tube located on the main control cover.

The correct transmission fluid level is between the MIN and MAX in the cross hatches of the transmission fluid level indicator.

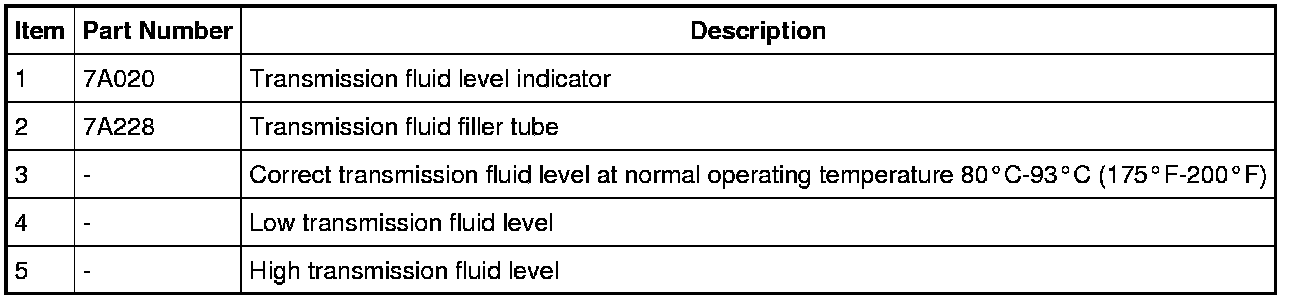

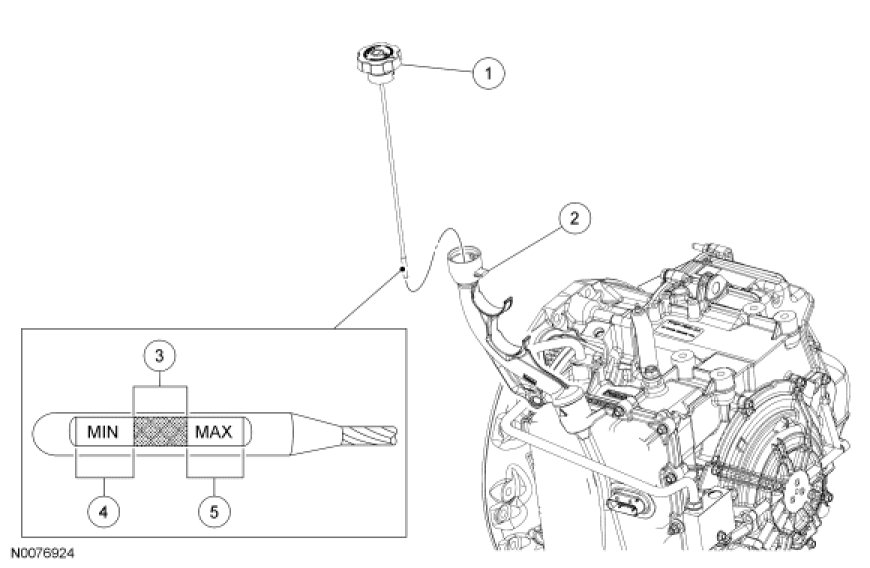

Transmission Fluid Level Indicator
