Throttle Body: Service and Repair

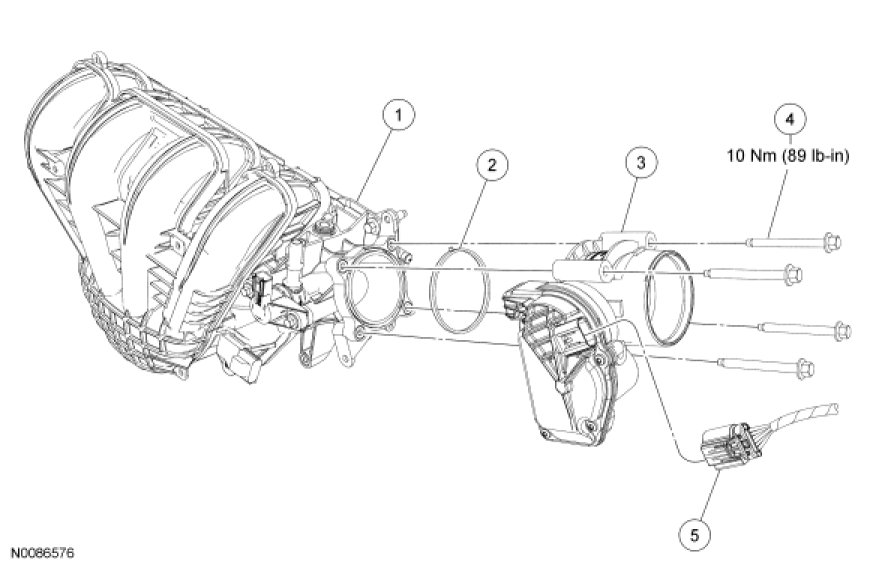

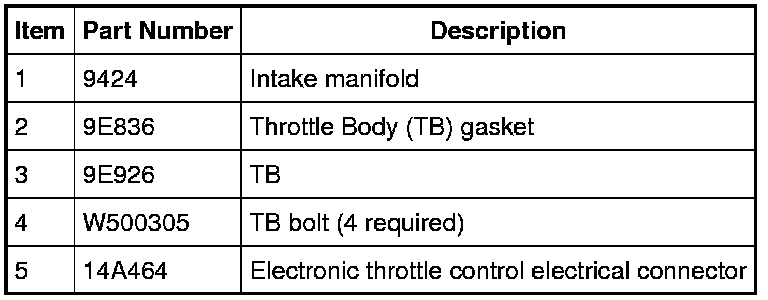

Throttle Body









1. Remove the Air Cleaner (ACL) outlet pipe.

2. Disconnect the electrical throttle control electrical connector.

3. Remove the 4 bolts and the Throttle Body (TB).
- Discard the TB gasket.

- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
- Install a new TB gasket.
