Removal

WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTICE: Do not allow brake fluid to overflow from the master cylinder reservoir. Brake fluid may damage the high-voltage components.

NOTE: The rear brake pads will wear at approximately twice the rate of the front brake pads.

1. If necessary, using a suitable suction device, remove the brake fluid from the master cylinder reservoir until it is half filled.

2. Remove the wheel and tire.

3. NOTICE: If the brake pad anti-rattle spring is to be removed, do not force the spring off the brake caliper or damage to the spring can occur.

NOTICE: Do not use any tools to remove the spring, use hand force only. Do not use excessive force or damage to the spring can occur.

NOTE: The LH side brake pad anti-rattle spring must be installed with the 2-tabbed end in the upper brake caliper cavity.

For the LH brake caliper, release the lower portion of the brake pad anti-rattle spring.
- Apply force to the center of the spring and pull outward at the bottom of the spring to remove it from the lower brake caliper cavity.





4. Rotate the spring upward and remove it from the brake caliper.





5. NOTE: The RH side brake pad anti-rattle spring must be installed with the 2-tabbed end in the lower brake caliper cavity.

For the RH brake caliper, release the upper portion of the brake pad anti-rattle spring.

- Apply force to the center of the spring and pull outward at the top of the spring to remove it from the upper brake caliper cavity.

6. Rotate the spring downward and remove it from the brake caliper.





7. NOTICE: Do not allow the caliper to hang from the brake hose or damage to the hose can occur.

Remove the 2 guide pin bushing caps and the 2 brake caliper guide pin bolts, position the caliper aside.

- Support the caliper using mechanic's wire.

8. Remove the 2 brake pads from the caliper.

9. Inspect the brake pads for wear and contamination, install new pads as necessary.

10. NOTICE: Protect the piston and boots when pushing the caliper piston into the caliper piston bores or damage to the piston or boots may occur.

If installing new brake pads, using a C-clamp and worn brake pad, compress the brake caliper piston into the brake caliper.

11. Inspect the brake disc and resurface or install new as necessary.

Installation

1. Using specified brake parts cleaner, clean, dry and inspect the brake caliper anchor plate. Apply a light coat of specified lubricant to the 4 brake pad contact points on the anchor plate.





2. NOTE: Make sure that the brake flexible hose is not twisted.

Install the brake pads onto the caliper and position the brake caliper onto the anchor plate.

3. Install the 2 brake caliper guide pin bolts and the 2 bushing caps.
- Tighten the bolts to 50 Nm (37 lb-ft).

4. NOTE: The 2-tabbed end of the brake pad anti-rattle spring must be installed first.

Install the brake pad anti-rattle spring using the following procedure:

1. Insert the tab of the spring into the brake caliper cavity.

2. Twist the tab into the cavity (LH side in the upper brake caliper cavity, RH side in the lower brake caliper cavity).





5. Rotate the brake pad anti-rattle spring and position the upper portion onto the anchor plate.

6. Position the lower portion of the brake pad anti-rattle spring onto the anchor plate.

7. Push down and inward until the upper and lower ends of the brake pad anti-rattle spring are latched and seated in the brake caliper cavities.

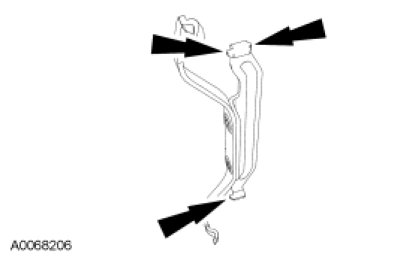

8. NOTICE: The latch MUST be positioned as shown or damage to component may occur.

Verify that the brake pad anti-rattle spring is correctly latched by pulling on the spring.





9. Install the wheel and tire.

10. Fill the brake master cylinder reservoir with clean, specified brake fluid.
- Apply brakes several times to verify correct brake operation.
