Refrigerant Control Solenoid Valve: Service and Repair




Battery Zone Valve









Removal and Installation

NOTE: The battery zone valve is not interchangeable with the passenger zone valve.

1. Remove the auxiliary climate control housing. For additional information, refer to Auxiliary Climate Control Housing Auxiliary Climate Control Housing.

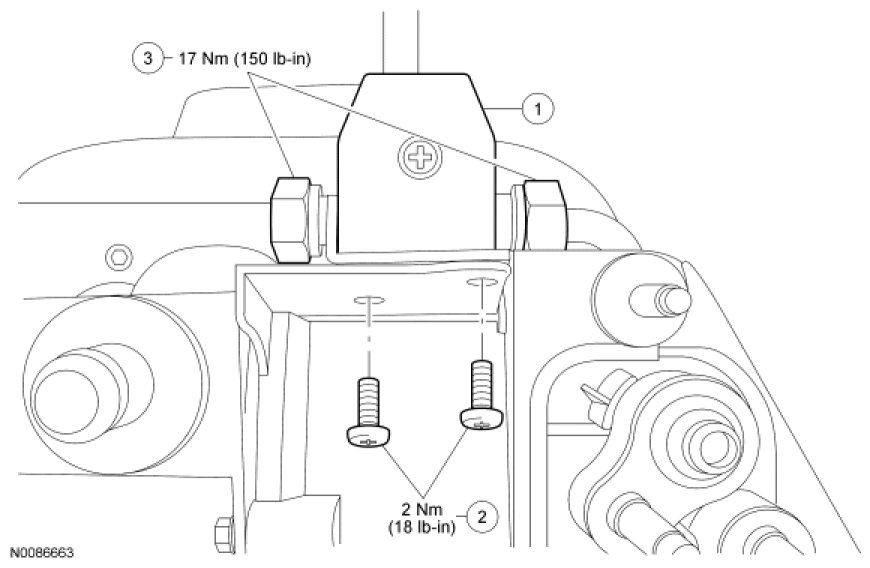

2. Remove the 2 battery zone valve screws.
- To install, tighten to 2 Nm (18 lb-in).

3. Loosen the nuts and disconnect the battery zone valve tube-O fittings.
- Discard the O-ring seals.

- To install, tighten to 17 Nm (150 lb-in).

4. Disconnect the electrical connector and remove the battery zone valve.

5. To install, reverse the removal procedure.
- Install new O-ring seals.
