Pinpoint Test N: One Turn Signal/Hazard Lamp Is Inoperative/Always On
Turn Signal and Hazard Lamps
Pinpoint Tests
Pinpoint Test N: One Turn Signal/Hazard Lamp Is Inoperative/Always On
Refer to Wiring Diagram Set 90 (Escape/Mariner, Escape Hybrid/Mariner Hybrid), Turn Signal/Stop/Hazard Lamps for schematic and connector information. Diagrams By Number
Normal Operation - Early Build
When the Smart Junction Box (SJB) detects the multifunction switch in the LH TURN position, the SJB provides voltage through circuit CLS21 (BU/GN) to the LH front turn lamp (and the side turn lamp for Mariner). When the SJB detects the multifunction switch in the RH TURN position, the SJB provides voltage through circuit CLS25 (YE/VT) to the RH front turn lamp (and the side turn lamp for Mariner). Circuit GD120 (BK/GN) provides ground. The rear turn lamps are controlled utilizing the rear stoplamp circuitry.
Late Build
When the Smart Junction Box (SJB) detects the multifunction switch in the LH TURN position, the SJB provides voltage to the LH front turn lamp through circuit CLS21 (BU/GN) and the LH side turn lamp (Mariner) through circuit CLS13 (YE/BU) . When the SJB detects the multifunction switch in the RH TURN position, the SJB provides voltage to the RH front turn lamp through circuit CLS25 (YE/VT) and the RH side turn lamp (Mariner) through circuit CLS14 (BU/OG). Circuit GD120 (BK/GN) provides ground. The rear turn lamps are controlled utilizing the rear stoplamp circuitry.
B2A2A-B2032:
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Bulb holder
- SJB
PINPOINT TEST N: ONE TURN SIGNAL/HAZARD LAMP IS INOPERATIVE/ALWAYS ON
NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
-------------------------------------------------
N1 CHECK THE STOPLAMPS
- Apply and release the brake pedal while observing the stoplamps.
- Do the stoplamps operate correctly?
Yes
GO to N2.
No
REFER to Stoplamps Testing and Inspection.
-------------------------------------------------
N2 DETERMINE IF A TURN LAMP IS ALWAYS ON
- Ignition ON.
- Monitor the turn lamps while placing the multifunction switch in the RH TURN and then LH TURN positions.
- Is any turn lamp always on?
Yes
GO to N3.
No
For early build vehicles, GO to N4.
For late build vehicles, GO to N11.
-------------------------------------------------
N3 CHECK THE SJB TURN LAMP OUTPUT CIRCUIT FOR A SHORT TO VOLTAGE
- Ignition OFF.
- Disconnect: SJB C2280f.
- Ignition ON.
- Does the turn lamp in question continue to illuminate?
Yes
For the LH front turn lamp, REPAIR circuit CLS21 (BU/GN) for a short to voltage. CLEAR the DTCs. REPEAT the self-test.
For the RH front turn lamp, REPAIR circuit CLS25 (YE/VT) for a short to voltage. CLEAR the DTCs. REPEAT the self-test.
For the LH side turn lamp (late build Mariner only), REPAIR circuit CLS13 (YE/BU) for a short to voltage. CLEAR the DTCs. REPEAT the self-test.
For the RH side turn lamp (late build Mariner only), REPAIR circuit CLS14 (BU/OG) for a short to voltage. CLEAR the DTCs. REPEAT the self-test.
No
GO to N17.
-------------------------------------------------
N4 USE THE RECORDED DTCs FROM THE SJB SELF-TEST (EARLY BUILD VEHICLES)
- Check the recorded results from the SJB on-demand self-test.
- Is DTC B2A28 or DTC B2A2A present?
Yes
For Mariner, GO to N5.
For Escape, GO to N6.
No
GO to N8.
-------------------------------------------------
N5 CHECK THE SIDE TURN BULB HOLDER FOR A SHORT TO GROUND (EARLY BUILD VEHICLES)
- Disconnect: Inoperative Side Turn Lamp.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: SJB Self-Test.
- Clear the DTCs and repeat the self-test (required to enable the turn lamp output driver if DTC B106E is present).
- Activate the hazard flasher lamp function.
- Does the front turn lamp flash on and off?
Yes
INSTALL a new side turn lamp bulb holder. TEST the system for normal operation.
No
GO to N6.
-------------------------------------------------
N6 CHECK THE FRONT TURN BULB HOLDER FOR A SHORT TO GROUND (EARLY BUILD VEHICLES)
- Ignition OFF.
- Disconnect: Inoperative Front Turn Lamp.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: SJB Self-Test.
- Clear the DTCs and repeat the self-test (required to enable the turn lamp output driver if DTC B106E is present).
- Activate the hazard flasher lamp function.
- Measure the voltage between the LH front turn lamp C1023-3, circuit CLS21 (BU/GN), harness side and ground; or between the RH front turn lamp C1043-3, circuit CLS25 (YE/VT), harness side and ground.
- Does the voltage alternate from 0 to greater than 10 volts?
Yes
INSTALL a new front turn lamp bulb holder. TEST the system for normal operation.
No
GO to N7.
-------------------------------------------------
N7 CHECK THE SJB TURN LAMP OUTPUT CIRCUIT FOR A SHORT TO GROUND (EARLY BUILD VEHICLES)
- Ignition OFF.
- Disconnect: SJB C2280f.
- Measure the resistance between the SJB C2280f-21 (LH front turn lamp), circuit CLS21 (BU/GN), harness side and ground; or between the SJB C2280f-23 (RH front turn lamp), circuit CLS25 (YE/VT), harness side and ground.
- Is the resistance greater than 10,000 ohms?
Yes
GO to N17.
No
REPAIR circuit CLS21 (BU/GN) (LH turn lamp) or circuit CLS25 (YE/VT) (RH turn lamp) for a short to ground. After the repair:
If no DTCs are present, TEST the system for normal operation.
If DTC B106E is present, CLEAR the DTCs and REPEAT the self-test (required to enable the turn lamp output driver if DTC B106E is present). TEST the system for normal operation.
If DTC B106F is present, INSTALL a new SJB. TEST the system for normal operation.
-------------------------------------------------
N8 CHECK FOR VOLTAGE TO THE TURN LAMP (EARLY BUILD VEHICLES)
- Ignition OFF.
- Disconnect: Inoperative Turn Lamp.
- Activate the hazard flasher lamp function.
- Measure the voltage between the inoperative turn lamp, harness side and ground as follows
- Does the voltage alternate between 0 and greater than 10 volts?
Yes
GO to N9.
No
GO to N10.
-------------------------------------------------
N9 CHECK FOR VOLTAGE TO THE TURN LAMP USING THE CONNECTOR GROUND (EARLY BUILD VEHICLES)

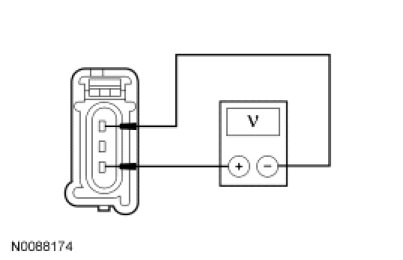

- Measure the voltage between the inoperative turn lamp pins, harness side as follows
- Does the voltage alternate between 0 and greater than 10 volts?
Yes
INSTALL a new bulb holder. CLEAR the DTCs. REPEAT the self-test
No
REPAIR circuit GD120 (BK/GN) for an open. CLEAR the DTCs. REPEAT the self-test
-------------------------------------------------
N10 CHECK THE SJB TURN LAMP OUTPUT CIRCUIT FOR AN OPEN (EARLY BUILD VEHICLES)
- Turn the hazard lamp function off.
- Disconnect: SJB C2280f.
- Measure the resistance between the inoperative turn lamp, harness side and the SJB, harness side as follows:
- Is the resistance less than 5 ohms?
Yes
GO to N17.
No
REPAIR circuit CLS21 (BU/GN) (LH turn) or circuit CLS25 (YE/VT) (RH turn) for an open. CLEAR the DTCs. REPEAT the self-test.
-------------------------------------------------
N11 USE THE RECORDED DTCs FROM THE SJB SELF-TEST (LATE BUILD VEHICLES)
- Check the recorded results from the SJB on-demand self-test.
- Is DTC B2A27, B2A29, B2031 or B2032 present?
Yes
GO to N12.
No
For a front turn lamp, GO to N15.
For a side turn lamp, VERIFY the SJB fuse 21 (15A) is OK. If OK, GO to N15. If not OK, REFER to the Wiring Diagrams to identify the possible causes of the circuit short. After the repair:
If no DTCs are present, TEST the system for normal operation.
If DTC B106E is present, CLEAR the DTCs and REPEAT the self-test (required to enable the turn lamp output driver if DTC B106E is present). TEST the system for normal operation.
If DTC B106F is present, INSTALL a new SJB. TEST the system for normal operation.
-------------------------------------------------
N12 CHECK FOR VOLTAGE TO THE INOPERATIVE TURN LAMP (LATE BUILD VEHICLES)
- Ignition OFF.
- Disconnect: Inoperative Turn Lamp.
- Activate the hazard flasher lamp function.
- For a front turn lamp, measure the voltage between the LH front turn lamp C1023-3, circuit CLS21 (BU/GN), harness side and ground; or between the RH front turn lamp C1043-3, circuit CLS25 (YE/VT), harness side and ground.
- For a side turn lamp (Mariner only), measure the voltage between the LH side turn lamp C1123-1, circuit CLS13 (YE/BU), harness side and ground; or between the RH side turn lamp C1122-1, circuit CLS14 (BU/OG), harness side and ground.
- Does the voltage alternate between 0 and greater than 10 volts?
Yes
GO to N13.
No
GO to N14.
-------------------------------------------------
N13 CHECK FOR VOLTAGE TO THE TURN LAMP USING THE CONNECTOR GROUND (LATE BUILD VEHICLES)
- For a front turn lamp, measure the voltage between the LH front turn lamp C1023-3, circuit CLS21 (BU/GN), harness side and the LH front turn lamp C1023-1, circuit GD120 (BK/GN), harness side; or between the RH front turn lamp C1043-3, circuit CLS25 (YE/VT), harness side and the RH front turn lamp C1043-1, circuit GD120 (BK/GN), harness side.
- For a side turn lamp (Mariner only), measure the voltage between the LH side turn lamp C1123-1, circuit CLS13 (YE/BU), harness side and the LH side turn lamp C1123-2, circuit GD120 (BK/GN), harness side; or between the RH side turn lamp C1122-1, circuit CLS14 (BU/OG), harness side and the RH side turn lamp C1122-2, circuit GD120 (BK/GN), harness side.
- Does the voltage alternate between 0 and greater than 10 volts?
Yes
INSTALL a new bulb holder. CLEAR the DTCs. REPEAT the self-test
No
REPAIR circuit GD120 (BK/GN) for an open. CLEAR the DTCs. REPEAT the self-test
-------------------------------------------------
N14 CHECK THE SJB TURN LAMP OUTPUT CIRCUIT FOR AN OPEN (LATE BUILD VEHICLES)
- Turn the hazard lamp function off.
- Disconnect: SJB C2280f.
- Measure the resistance between the inoperative turn lamp, harness side and the SJB, harness side as follows:
- Is the resistance less than 5 ohms?
Yes
GO to N17.
No
REPAIR circuit CLS21 (BU/GN) (LH front turn), circuit CLS25 (YE/VT) (RH front turn), circuit CLS13 (YE/BU) (LH side turn) or circuit CLS14 (BU/OG) (RH side turn) for an open. CLEAR the DTCs. REPEAT the self-test.
-------------------------------------------------
N15 CHECK THE BULB HOLDER FOR A SHORT TO GROUND (LATE BUILD VEHICLES)
- Ignition OFF.
- Disconnect: Inoperative Turn Lamp.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: SJB Self-Test.
- Clear the DTCs and repeat the self-test (required to enable the turn lamp output driver if DTC B106E is present).
- Activate the hazard flasher lamp function.
- For a front turn lamp, measure the voltage between the LH front turn lamp C1023-3, circuit CLS21 (BU/GN), harness side and ground; or between the RH front turn lamp C1043-3, circuit CLS25 (YE/VT), harness side and ground.
- For a side turn lamp (Mariner only), measure the voltage between the LH side turn lamp C1123-1, circuit CLS13 (YE/BU), harness side and ground; or between the RH side turn lamp C1122-1, circuit CLS14 (BU/OG), harness side and ground.
- Does the voltage alternate from 0 to greater than 10 volts?
Yes
INSTALL a new bulb holder. TEST the system for normal operation.
No
GO to N16.
-------------------------------------------------
N16 CHECK THE SJB TURN LAMP OUTPUT CIRCUIT FOR A SHORT TO GROUND
- Ignition OFF.
- Disconnect: SJB C2280f.
- Measure the resistance between the SJB, harness side and ground as follows:
- Is the resistance greater than 10,000 ohms?
Yes
GO to N17.
No
REPAIR circuit CLS21 (BU/GN) (LH front turn lamp), circuit CLS25 (YE/VT) (RH front turn lamp), circuit CLS13 (YE/BU) (LH side turn lamp) or circuit CLS14 (BU/OG) (RH side turn lamp) for a short to ground. After the repair:
If no DTCs are present, TEST the system for normal operation.
If DTC B106E is present, CLEAR the DTCs and REPEAT the self-test (required to enable the turn lamp output driver if DTC B106E is present). TEST the system for normal operation.
If DTC B106F is present, INSTALL a new SJB. TEST the system for normal operation.
-------------------------------------------------
N17 CHECK FOR CORRECT SJB OPERATION
- Ignition OFF.
- Disconnect all the SJB connectors.
- Check for:
- corrosion
- damaged pins
- pushed-out pins
- Connect all the SJB connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
Yes
INSTALL a new SJB. TEST the system for normal operation.
No
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
-------------------------------------------------
