Fuel Tank and Filler Pipe - Exploded View

Fuel Tank and Filler Pipe - Exploded View

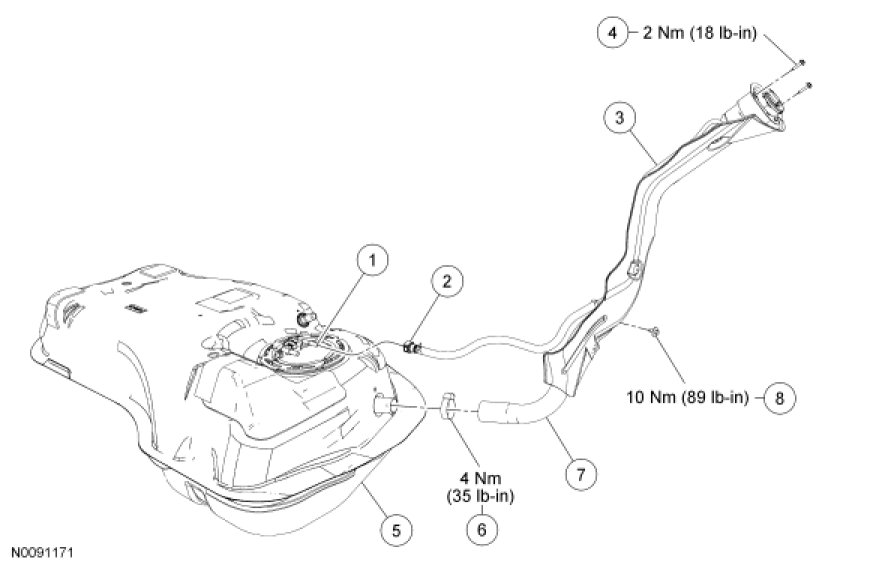

Fuel Tank Filler Pipe Assembly











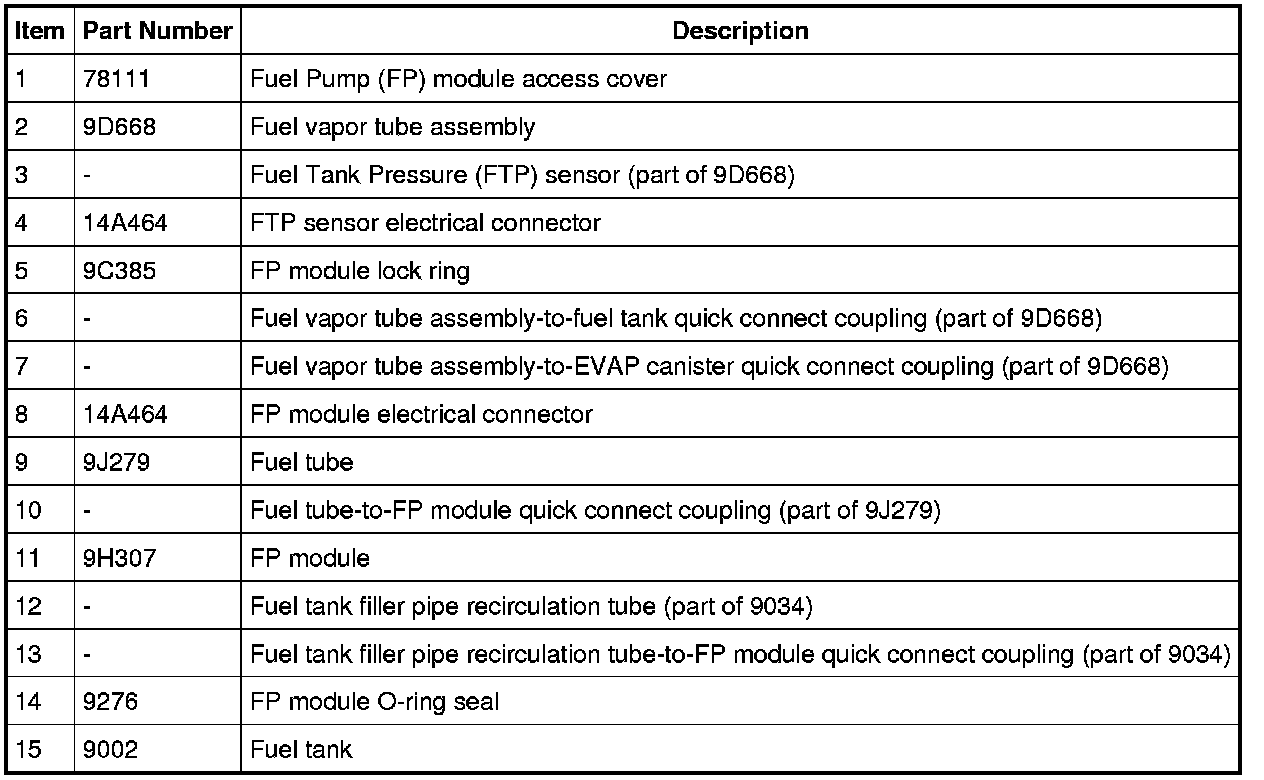

Fuel Tank and Fuel Pump (FP) module











Fuel Tank Supports









1. For additional information, refer to the procedures.
