B14-B23
Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)
Pinpoint Test - Restraints Control Module (RCM)
Pinpoint Test B: DTCs B0001:11, B0001:12, B0001:13 and B0001:1A
Refer to Wiring Diagram Set 46 (Escape/Mariner, Escape Hybrid/Mariner Hybrid), Supplemental Restraint System for schematic and connector information. Diagrams By Number
Normal Operation
The Restraints Control Module (RCM) continuously monitors driver air bag stage 1 (Driver Frontal Stage 1 Deployment Control) circuits for the following faults:
- Resistance out of range
- Unexpected voltage
- Short to ground

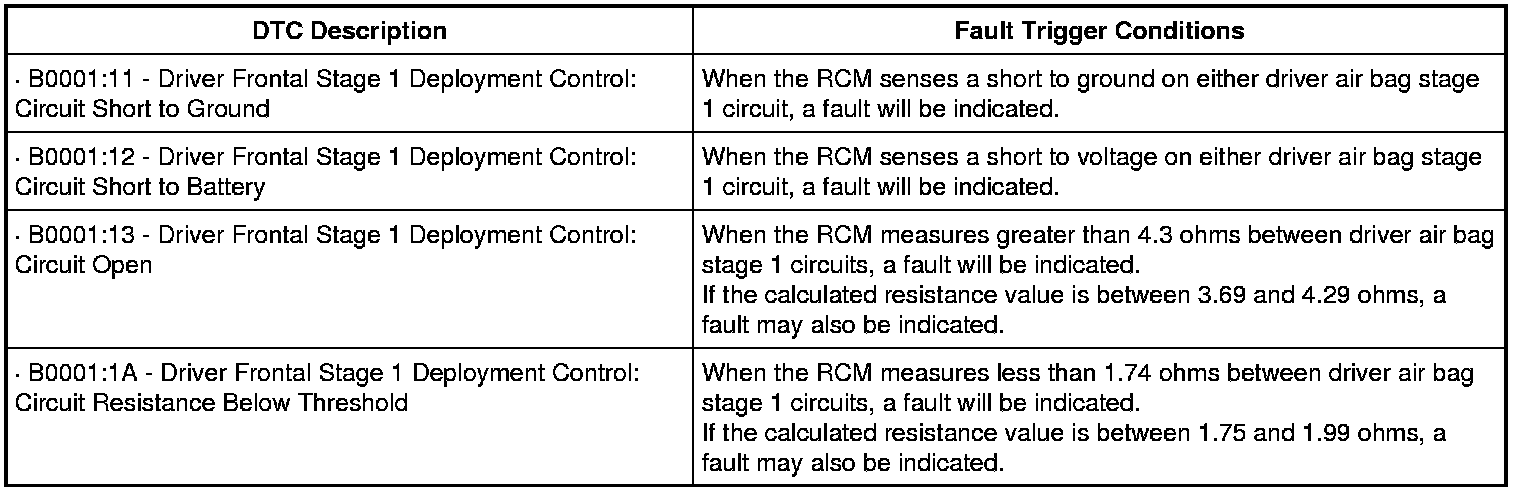

If a fault is detected, the RCM will store DTC B0001:11, B0001:12, B0001:13 or B0001:1A in memory and send a message to the Instrument Cluster (IC) module to illuminate the air bag warning indicator.
The RCM analyzes the deployment loop resistance and uses this measurement in combination with an age correction factor to determine if a fault exists. The value displayed in the PID is the deployment loop resistance as measured by the RCM. If the value displayed is lower or higher than the desired range of 2-3.68 ohms, the RCM can set a DTC. As the deployment loop resistance drifts farther outside the desired range, the chance for a DTC increases. The RCM fault trigger is adjusted as the vehicle ages so the exact threshold for a DTC will change over time. Small variations in resistance can occur due to the effect of road vibrations on terminal fit and/or temperature changes. These variables can result in an intermittent fault. For this reason, the test will require the PID value to be between 2 ohms and 3.68 ohms before the fault is considered repaired, regardless if the module is reporting an on-demand DTC at time of diagnosis. Following this direction will help ensure that minor changes in resistance do not create a repeat concern. This test will use a process of elimination to diagnose each part of the deployment loop circuit including:
- Wiring
- Connections
- Clockspring
- Driver air bag module
- RCM
B0001:1A-B0001:13:
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Clockspring
- Driver air bag module
- RCM
PINPOINT TEST B: DTCs B0001:11, B0001:12, B0001:13 AND B0001:1A
WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy(R) and cause serious personal injury or death.
WARNING: Never probe the electrical connectors on air bag, Safety Canopy(R) or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
NOTICE: Use the correct probe adapter(s) from the Flex Probe Kit when taking measurements. Failure to use the correct probe adapter(s) may damage the connector.
Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test. Inspection and Verification
NOTE: Supplemental Restraint System (SRS) components should only be disconnected or reconnected when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
-------------------------------------------------
B14 CHECK DRIVER AIR BAG STAGE 1 CIRCUITS FOR A SHORT TO VOLTAGE
- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Disconnect: RCM C2041a and C2041b.
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.

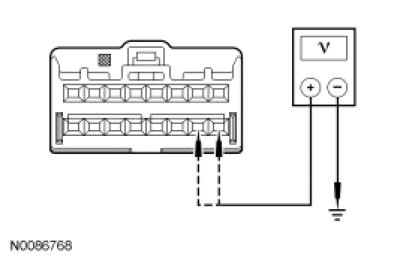

- Measure the voltage between clockspring:
- C218-9, circuit CR101 (VT/BN), harness side and ground.
- C218-10, circuit RR101 (YE/GN), harness side and ground.
- Is voltage present on either circuit?
Yes
Due to the shorting bar feature in the RCM electrical connector, the fault can exist in either circuit. Do not remove or defeat the shorting bar.
REPAIR circuit CR101 (VT/BN) or RR101 (YE/GN). GO to B23.
No
GO to B18.
-------------------------------------------------
B15 CONFIRM DRIVER AIR BAG MODULE FAULT
NOTE: Make sure all restraint system components and the RCM electrical connectors are connected before carrying out the self-test. If not, DTCs will be recorded.
- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Remove the fused jumper wire from the air bag module electrical connector, if installed previously.
- Install the driver air bag module. Refer to Driver Air Bag Module Driver Air Bag Module.
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was the original DTC retrieved on-demand during self-test?
Yes
INSTALL a new driver air bag module. REFER to Driver Air Bag Module Driver Air Bag Module. GO to B22.
No
In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test.
For DTC B0001:13 or B0001:1A, GO to B19.
For DTC B0001:11, GO to B20.
For DTC B0001:12, GO to B21.
-------------------------------------------------
B16 CHECK DRIVER AIR BAG STAGE 1 CIRCUITS FOR HIGH RESISTANCE (OPEN INDICATED)
- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Disconnect: Clockspring C218.
- Disconnect: RCM C2041a and C2041b.
- Measure the resistance between RCM C2041a, harness side and clockspring C218, harness side using the following chart.
- Are the resistances less than 0.5 ohm?
Yes
GO to B17.
No
REPAIR circuit CR101 (VT/BN) or RR101 (YE/GN). GO to B23.
-------------------------------------------------
B17 CONFIRM THE CLOCKSPRING FAULT
NOTE: Make sure all restraint system components and the RCM electrical connectors are connected before carrying out the self-test. If not, DTCs will be recorded.
- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Connect: Clockspring C218.
- Remove the fused jumper wire from the air bag module electrical connector, if installed previously.
- Install the driver air bag module. Refer to Driver Air Bag Module Driver Air Bag Module.
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was the original DTC retrieved on-demand during self-test?
Yes
INSTALL a new clockspring. REFER to Clockspring Service and Repair. GO to B23.
No
In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test.
For DTC B0001:13 or B0001:1A, GO to B20.
For DTC B0001:11, GO to B21.
For DTC B0001:12, GO to B22.
-------------------------------------------------
B18 CONFIRM THE RCM FAULT
NOTE: Make sure all restraint system components and the RCM electrical connectors are connected before carrying out the self-test. If not, DTCs will be recorded.
- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Prior to reconnecting any previously disconnected SRS component:
- inspect connector(s) (including any in-line connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
- inspect wire harness for any damage, pinched, cut or pierced wires.
- inspect C2041a and C2041b connector position assurance lever/lock for correct operation. Refer to Restraints Control Module (RCM) Service and Repair.
- repair any concerns found. Refer to Wiring Diagram Set 5 (Escape/Mariner, Escape Hybrid/Mariner Hybrid), Connector Repair Procedures for schematic and connector information. Diagrams By Number
- Remove the fused jumper wire from the air bag module electrical connector, if installed previously.
- If previously removed, install the driver air bag module. Refer to Driver Air Bag Module Driver Air Bag Module.
- Connect: Clockspring C218 (if previously disconnected).
- Connect: RCM C2041a and C2041b.
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was the original DTC retrieved on-demand during self-test?
Yes
INSTALL a new RCM. REFER to Restraints Control Module (RCM) Service and Repair. GO to B23.
No
In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test.
For DTC B0001:13 or B0001:1A, GO to B19.
For DTC B0001:11, GO to B20.
For DTC B0001:12, GO to B21.
-------------------------------------------------
B19 CHECK DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL RESISTANCE (DEPLOY_00_R) PID FOR AN INTERMITTENT LOW RESISTANCE OR OPEN CIRCUIT FAULT
- Enter the following diagnostic mode on the scan tool: DataLogger - RCM .
- Enter the following diagnostic mode on the scan tool: DEPLOY_00_R PID.
- NOTE: A resistance PID that reads between 1.75 and 1.99 ohms or between 3.69 and 4.29 ohms may or may not set a DTC, yet indicates a strong potential for a fault to occur. Thoroughly check wire harness(es) connectors and terminals as they are the likely source of the fault condition.
- Attempt to recreate the fault by wiggling connectors (including any in-line connectors) and flexing the wire harness, tilting and rotating the steering wheel frequently.
- Does the PID value read less than 2 ohms or greater than 3.68 ohms?
Yes
For PID value less than 2 ohms, GO to B4.
For PID value greater than 3.68 ohms, GO to B7.
No
GO to B22.
-------------------------------------------------
B20 CHECK DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL FOR AN INTERMITTENT SHORT TO GROUND FAULT
- Ignition ON.
- Attempt to recreate the fault by wiggling connectors (including any in-line connectors) and flexing the wire harness, tilting and rotating the steering wheel frequently.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was DTC B0001:11 retrieved on-demand during self-test?
Yes
DEPOWER the SRS and REPAIR as necessary.
Refer to Wiring Diagram Set 5 (Escape/Mariner, Escape Hybrid/Mariner Hybrid), Connector Repair Procedures for schematic and connector information. Diagrams By Number
GO to B23.
No
GO to B22.
-------------------------------------------------
B21 CHECK DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL FOR AN INTERMITTENT SHORT TO BATTERY FAULT
- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Remove the driver air bag module. Refer to Driver Air Bag Module Driver Air Bag Module.
- Repower the SRS. Do not prove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Attempt to recreate the fault by wiggling connectors (including any in-line connectors) and flexing the wire harness, tilting and rotating the steering wheel frequently.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was DTC B0001:12 retrieved on-demand during self-test?
Yes
DEPOWER the SRS and REPAIR as necessary.
Refer to Wiring Diagram Set 5 (Escape/Mariner, Escape Hybrid/Mariner Hybrid), Connector Repair Procedures for schematic and connector information. Diagrams By Number
GO to B23.
No
GO to B22.
-------------------------------------------------
B22 CHECK HARNESS AND CONNECTORS
- Ignition OFF.
- Depower the SRS. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Remove the driver air bag module:
- inspect connector(s) (including any in-line connectors) for corrosion, loose or spread terminals and loose or frayed wire connections at terminals.
- inspect wire harness for any damage, pinched, cut or pierced wires.
- Inspect C2041a and C2041b connector position assurance lever/lock for correct operation. Refer to Restraints Control Module (RCM) Service and Repair.
- Were any concerns found?
Yes
REPAIR as necessary.
Refer to Wiring Diagram Set 5 (Escape/Mariner, Escape Hybrid/Mariner Hybrid), Connector Repair Procedures for schematic and connector information. Diagrams By Number
GO to B23.
No
The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test. GO to B23.
-------------------------------------------------
B23 CHECK FOR ADDITIONAL SRS DTCs
- Ignition OFF.
- WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
- Reconnect all SRS components (if previously disconnected).
- If previously directed to depower the SRS, repower the SRS. Do notprove out the SRS at this time. Refer to Supplemental Restraint System (SRS) Depowering and Repowering Supplemental Restraint System (SRS) Depowering and Repowering.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - Restraints.
- NOTE: When selecting Restraints from the Self Test menu, DTCs will be retrieved from the RCM and OCSM.
- Are any RCM and/or OCSM DTCs retrieved?
Yes
Do not clear any DTCs until all DTCs have been resolved. GO to the DTC Charts for pinpoint test direction. [1][2]Diagnostic Trouble Code Descriptions
No
CLEAR all RCM and OCSM CMDTCs. PROVE OUT the SRS. Repair is complete. RETURN the vehicle to the customer.
-------------------------------------------------
