Power Running Board (PRB)

Power Running Board (PRB)

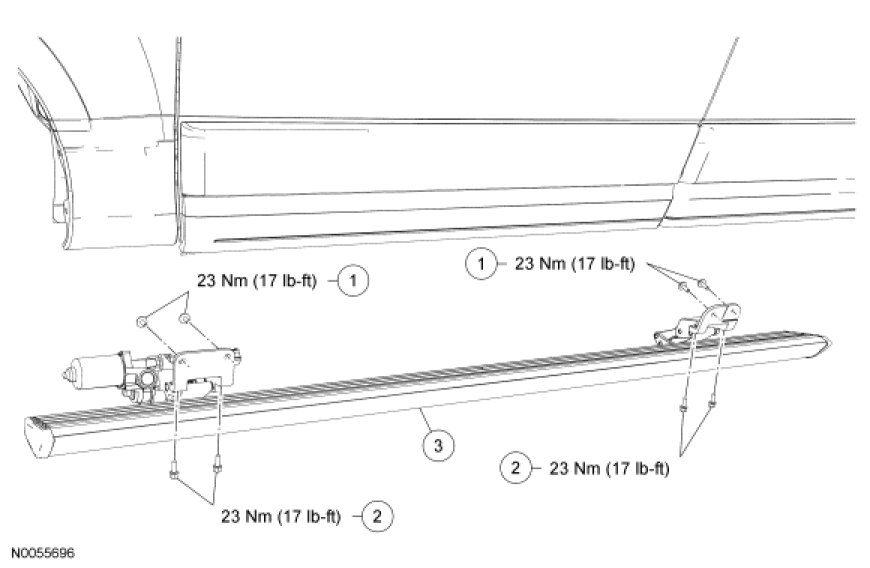

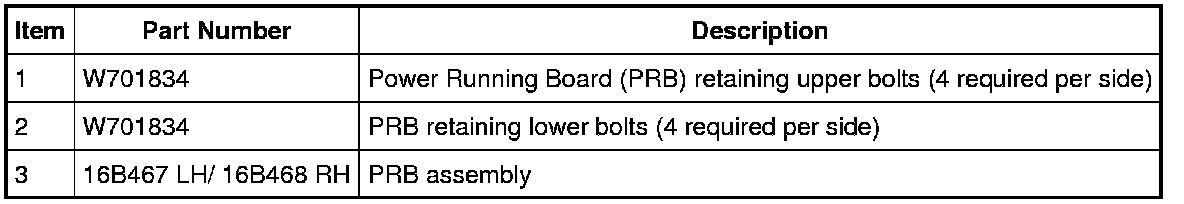

NOTE: LH shown, RH similar.










Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. NOTE: If the Power Running Board (PRB) cannot be extracted, extend the running board by hand.

Extend the PRB.

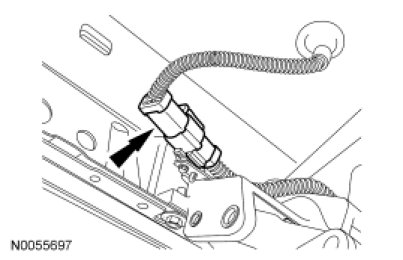

3. Disconnect the PRB motor electrical connector.





4. NOTICE: An assistant is required to hold the Power Running Board (PRB) before removing the lower bolts.

NOTE: Only 3 bolts shown.

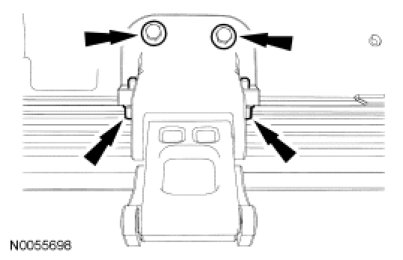

Remove the front PRB upper and lower bolts.

- To install, tighten to 23 Nm (17 lb-ft).

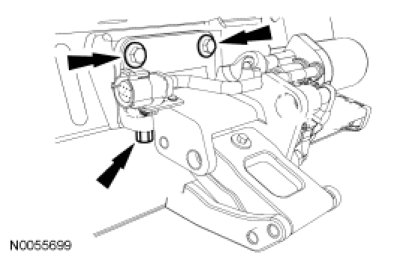

5. Remove the rear PRB upper and lower bolts and remove the PRB assembly.
- To install, tighten to 23 Nm (17 lb-ft).





6. To install, reverse the removal procedure.
