Diagnostic Trouble Code (DTC) Chart

Diagnostic Trouble Code (DTC) Chart

NOTE: Most powertrain (P-code) DTCs are diagnosed in Computers and Control Systems Information. If the P-code retrieved is not listed below, refer to Computers and Control Systems Information to continue diagnostics.

NOTE: The Smart Junction Box (SJB) is also known as the Generic Electronic Module (GEM).

NOTE: Some of these modules utilize a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens, or shorts to ground. Continuous memory DTCs have an additional 2-character DTC status code suffix to assist in determining DTC history.

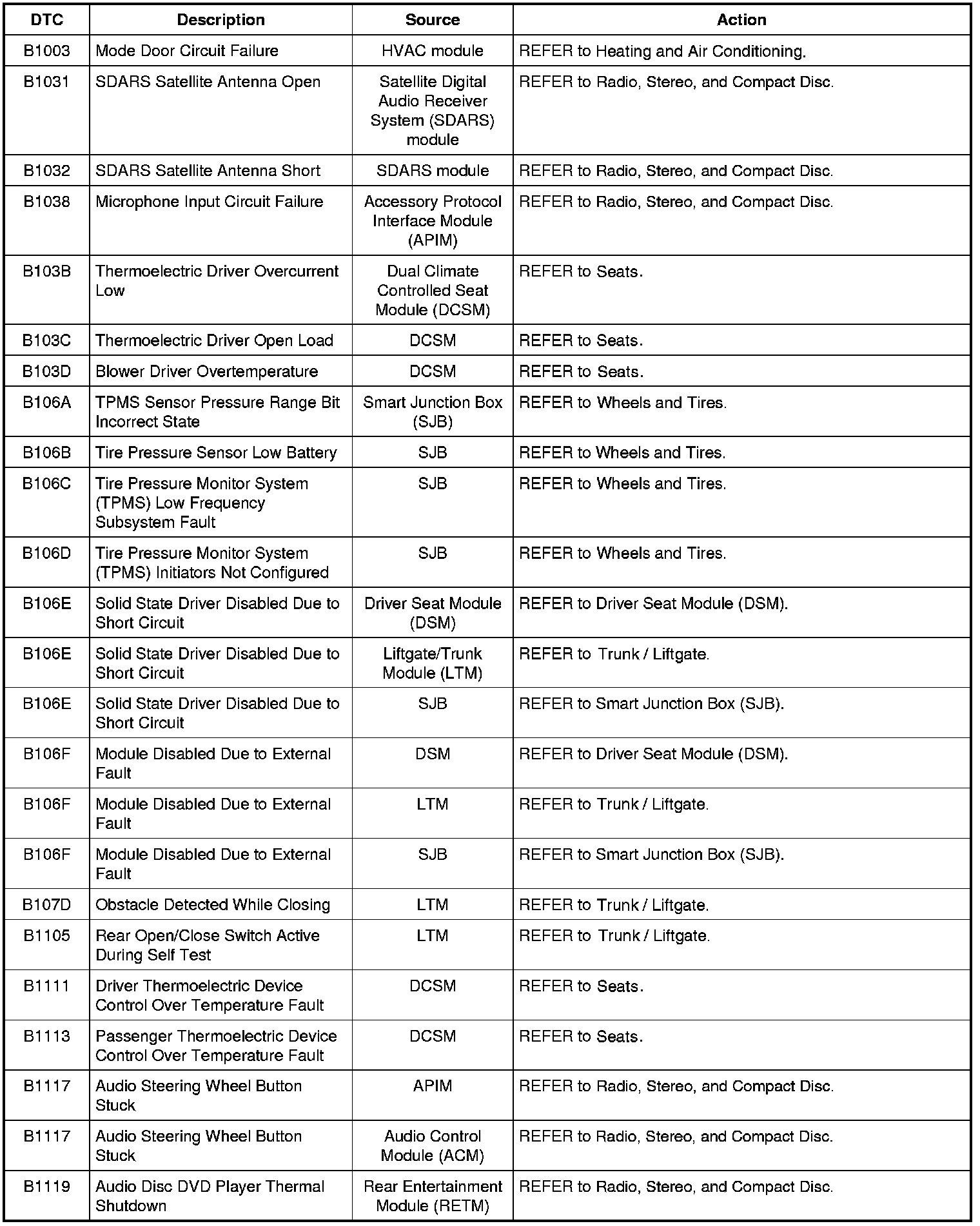

B103B-B1119:

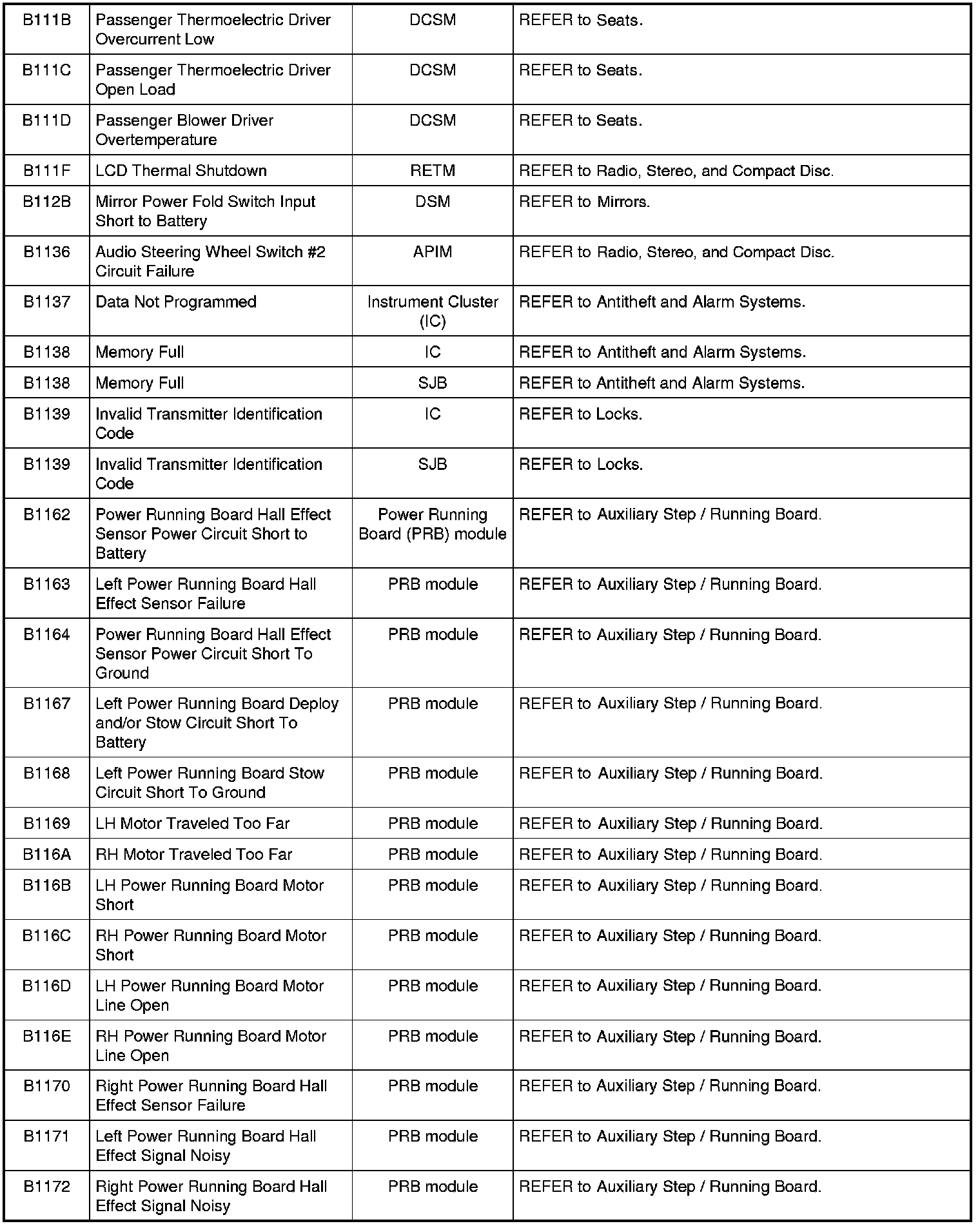

B111B-B1172:

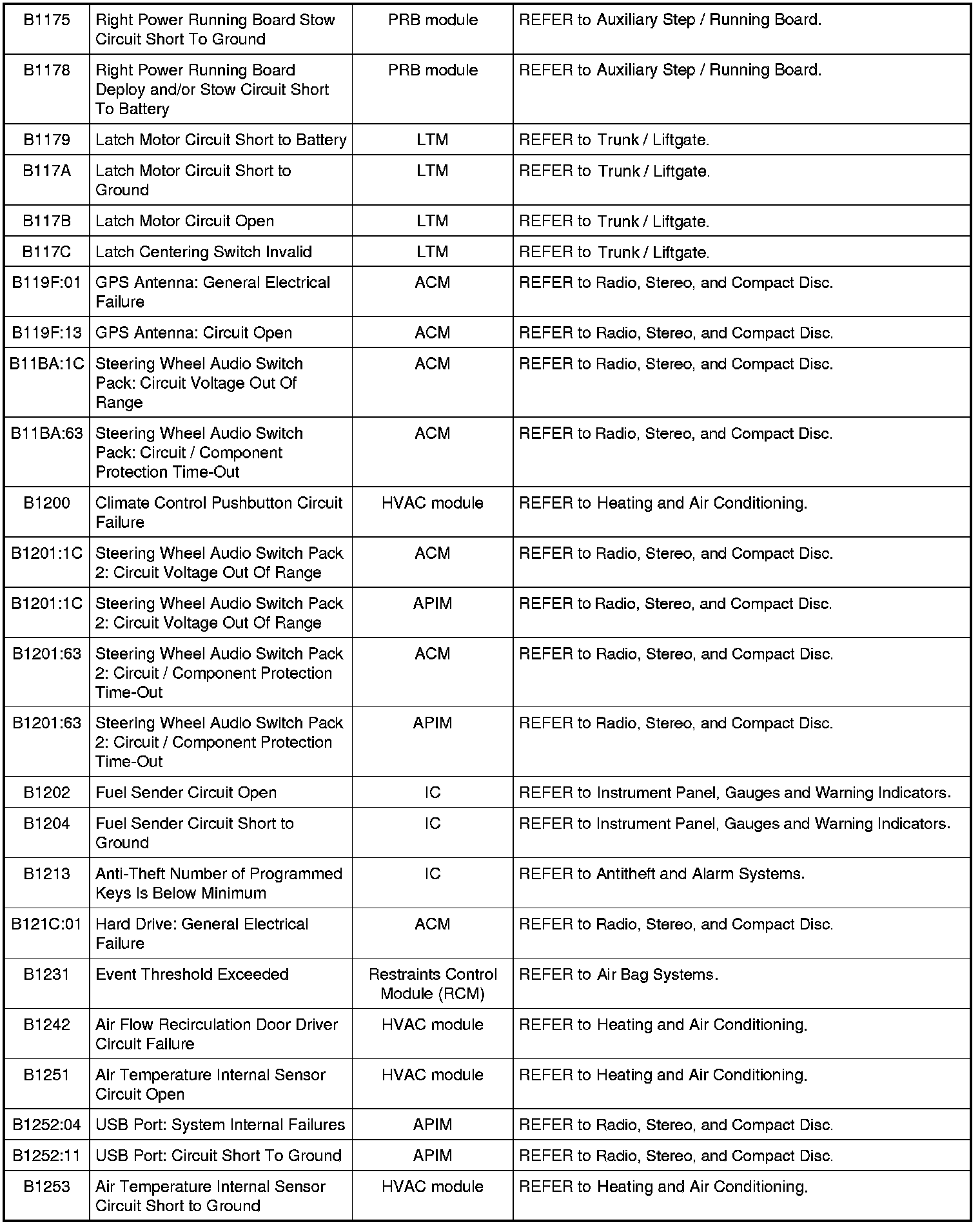

B11BA:1C-B1253:

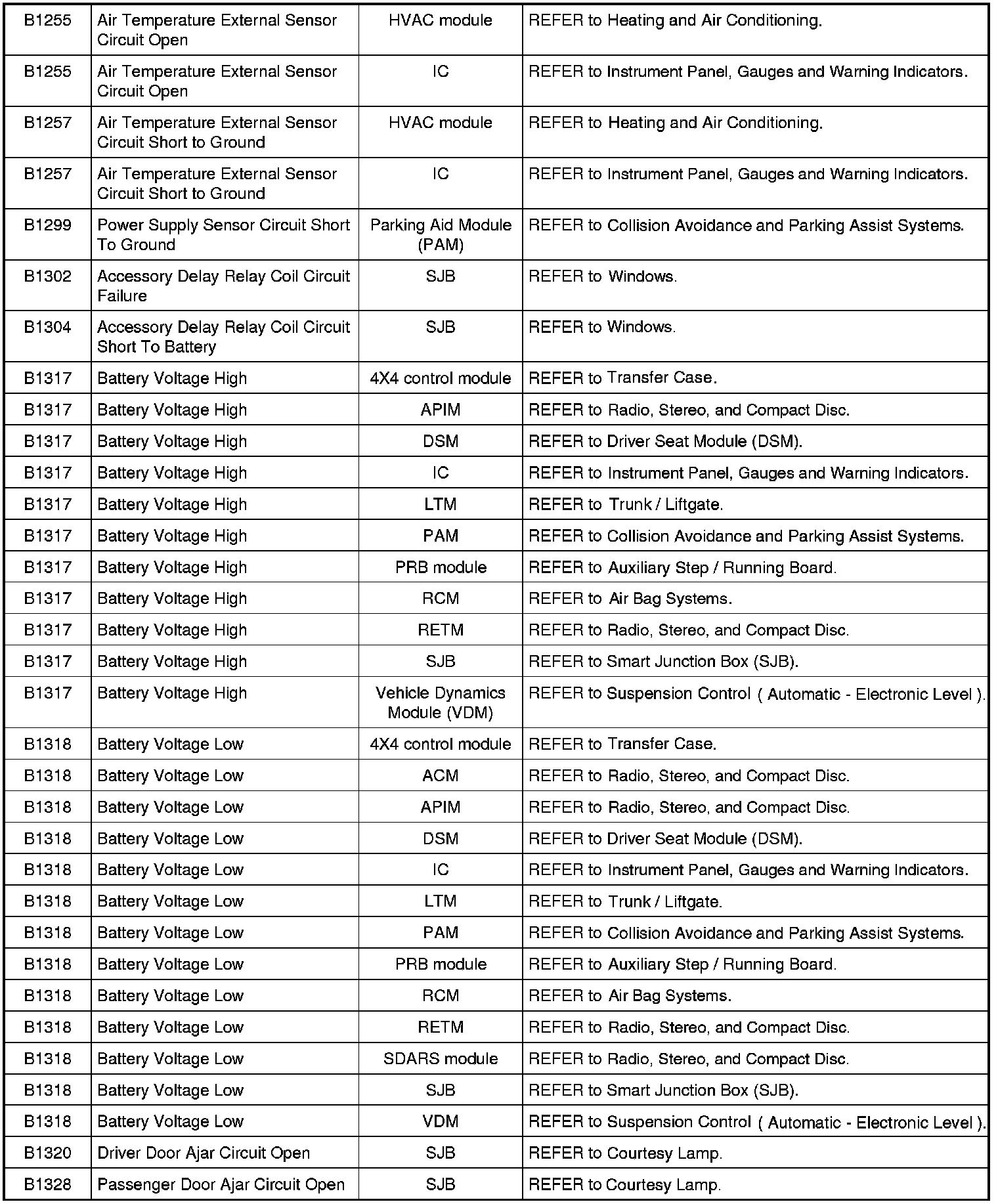

B1255-B1328:

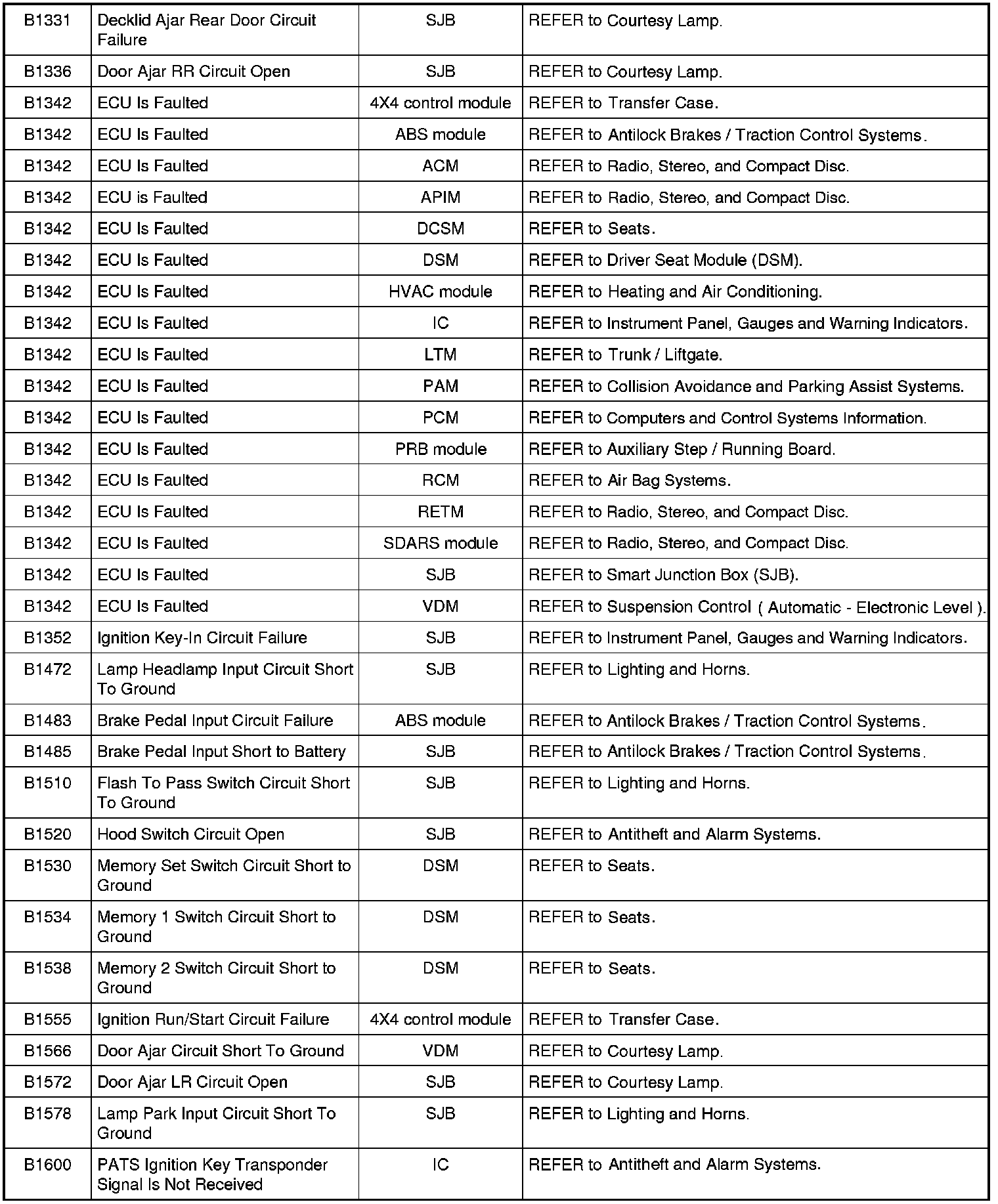

B1331-B1600:

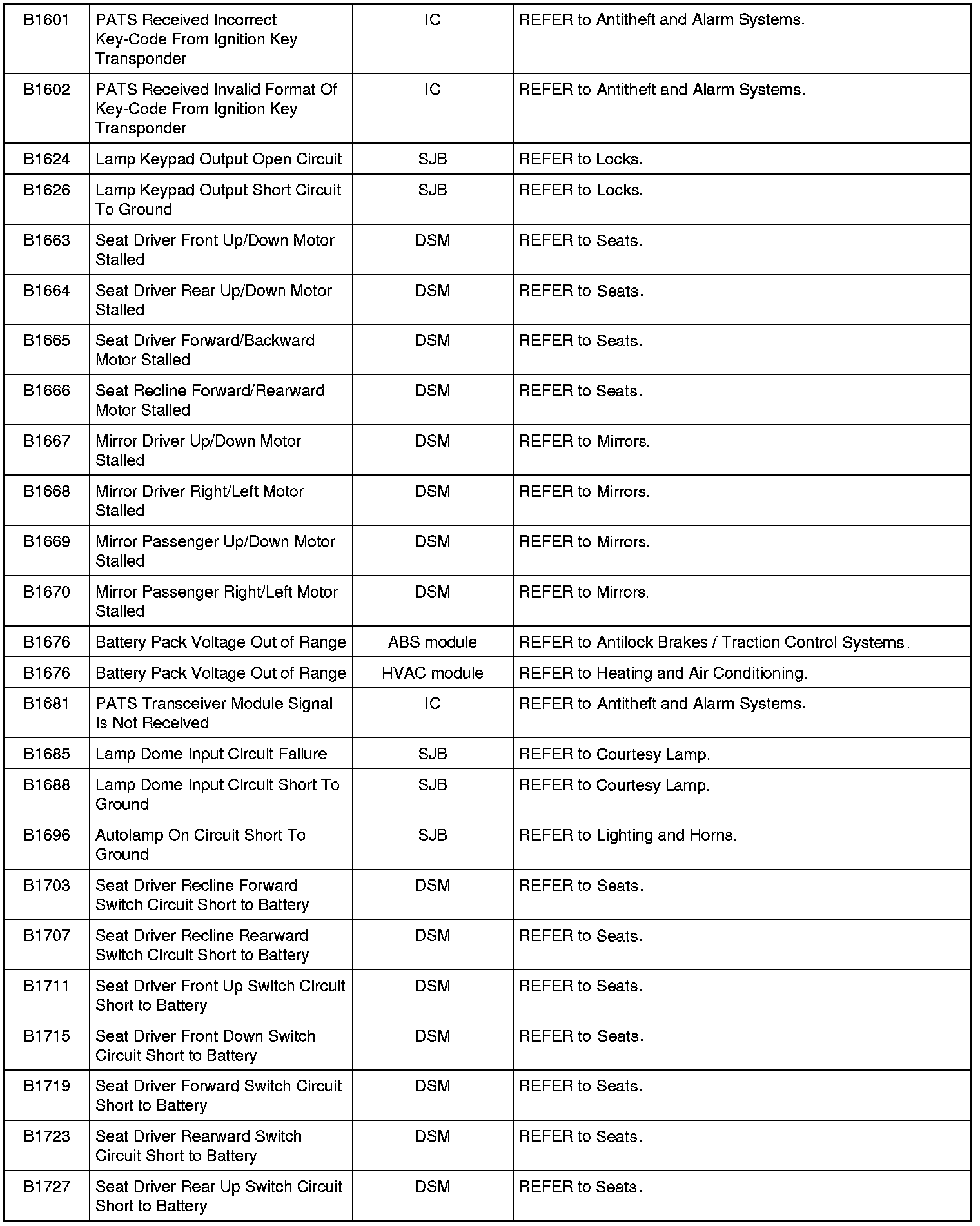

B1601-B1727:

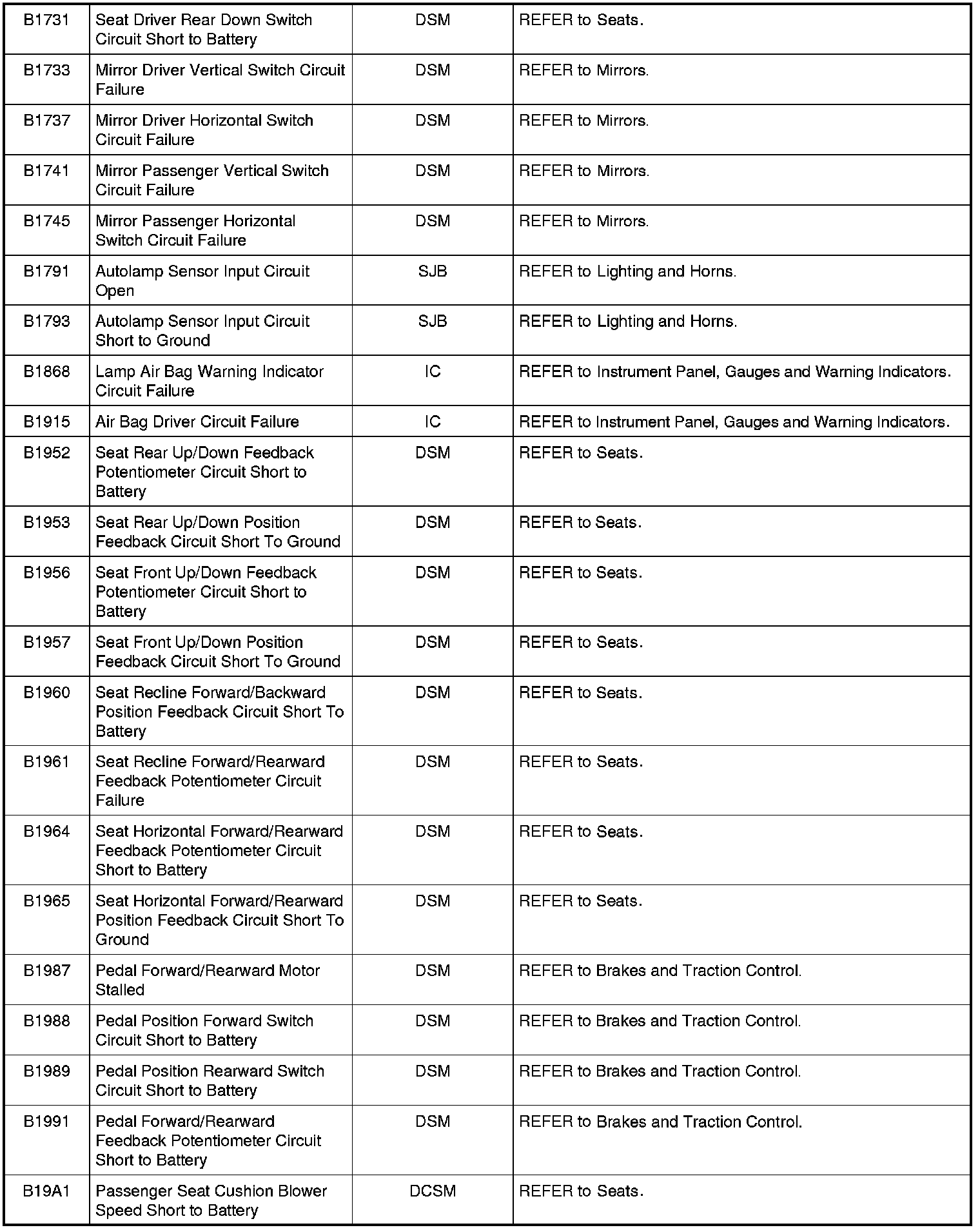

B19A1-B1991:

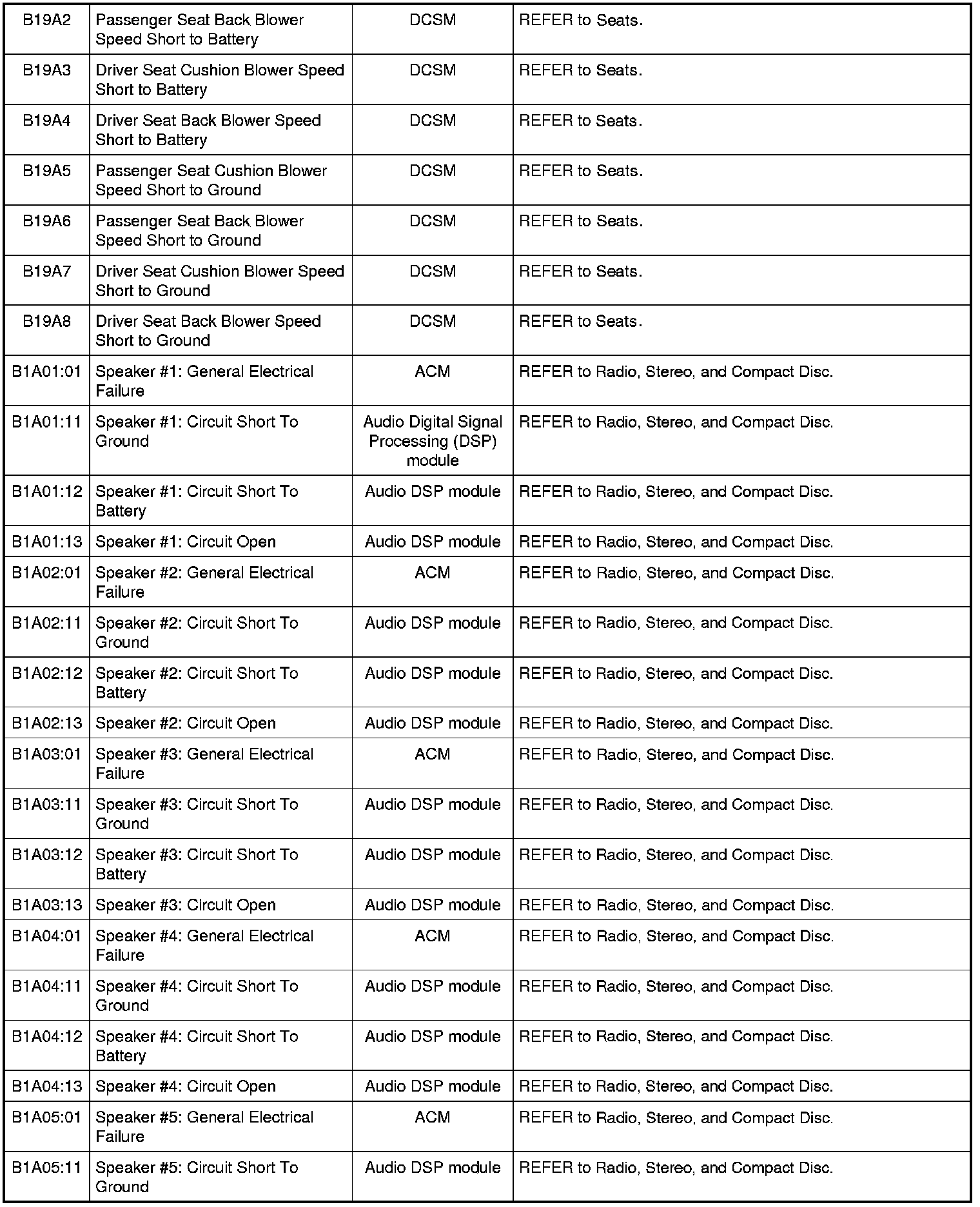

B1A01:01-B19A8:

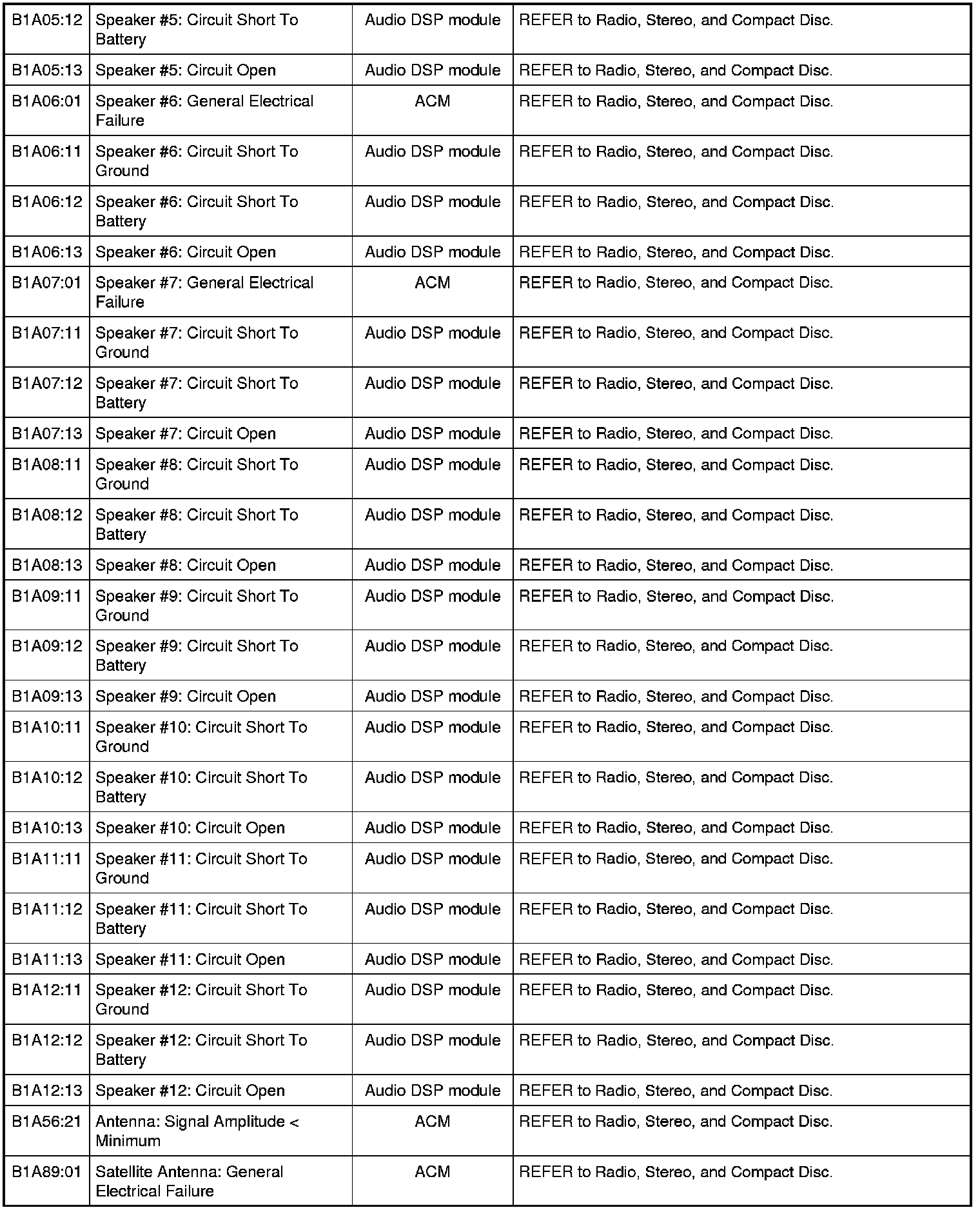

B1A05:12-B1A89:01:

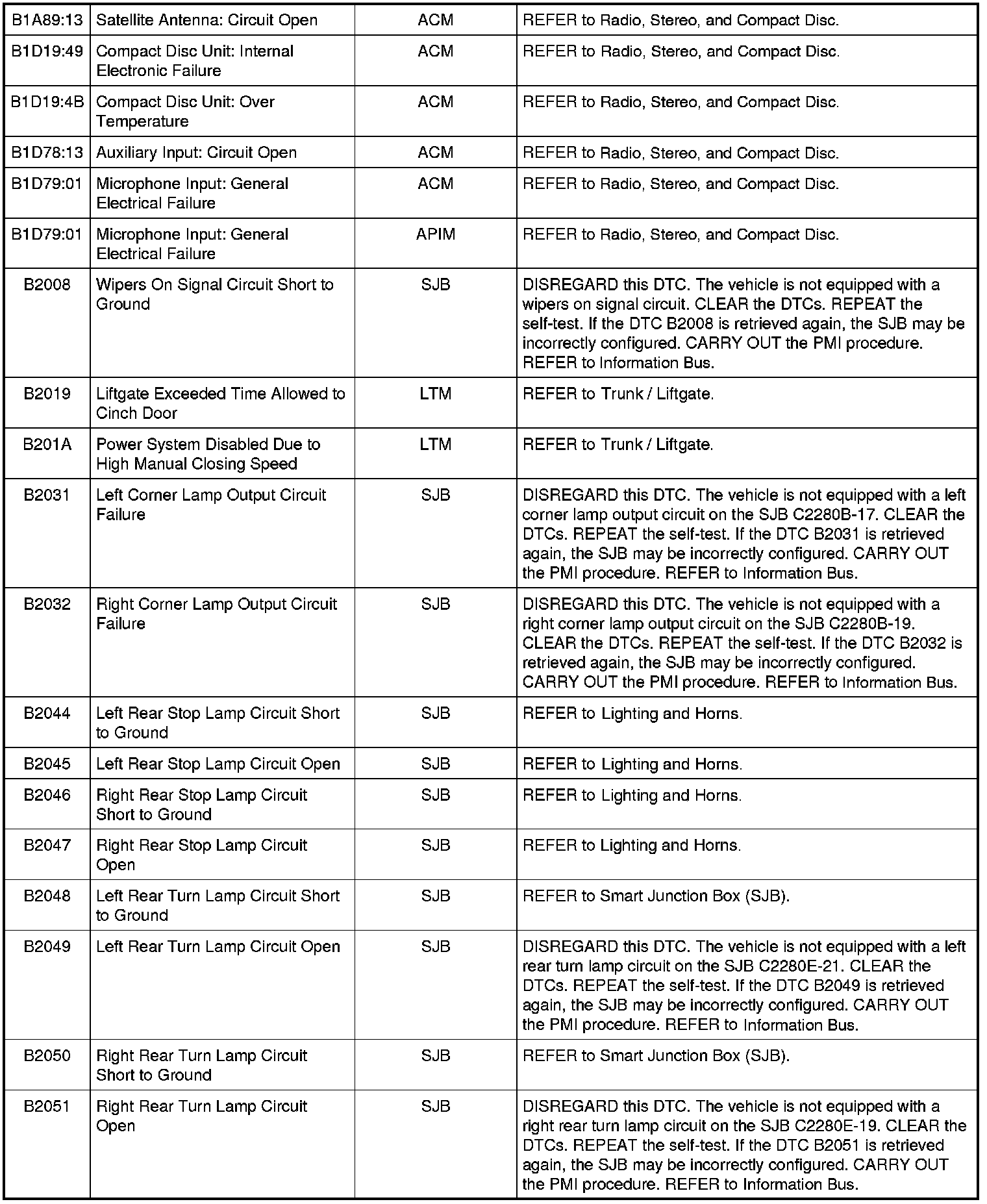

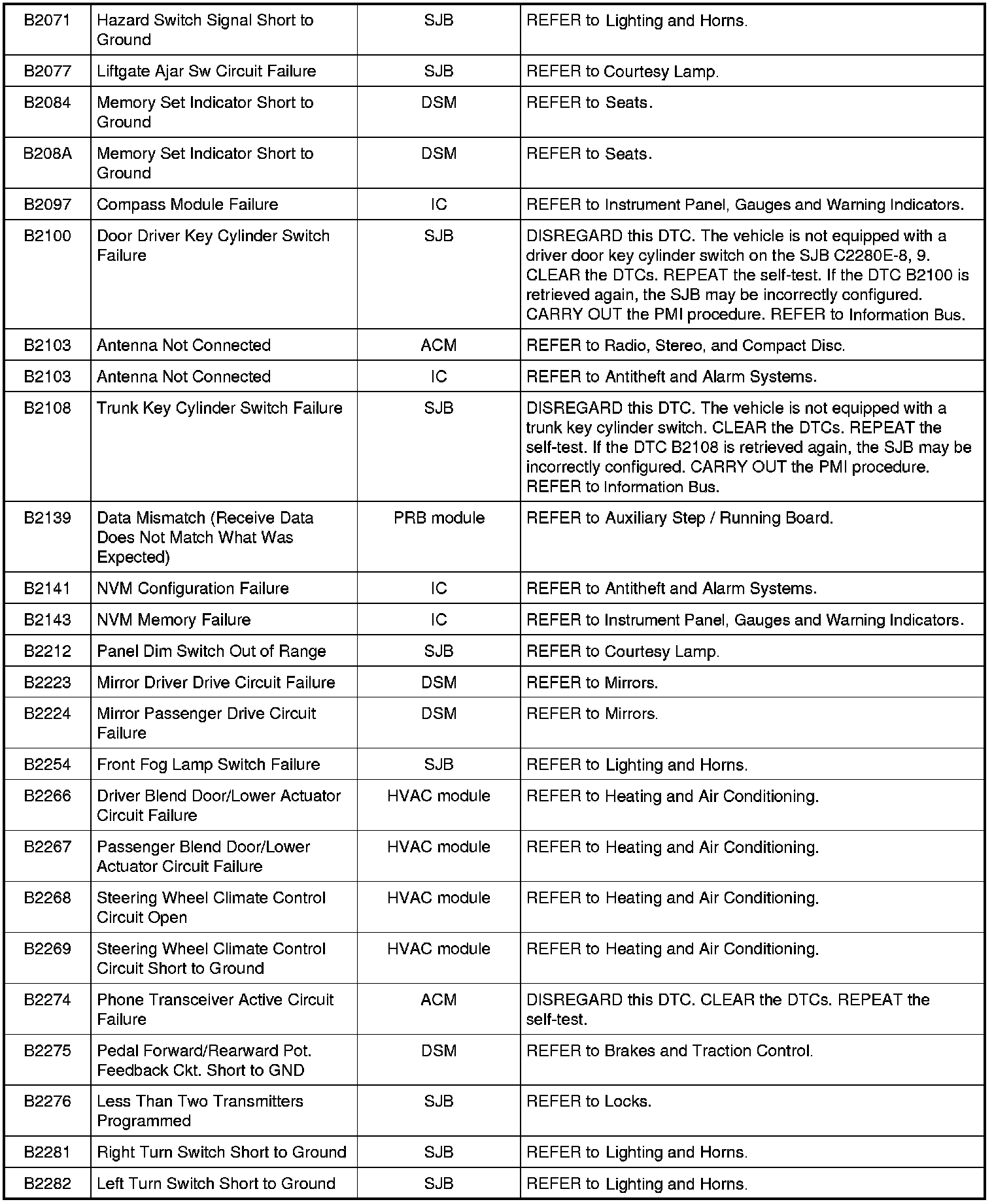

B1A89:13-B2051:

B208A-B2282:

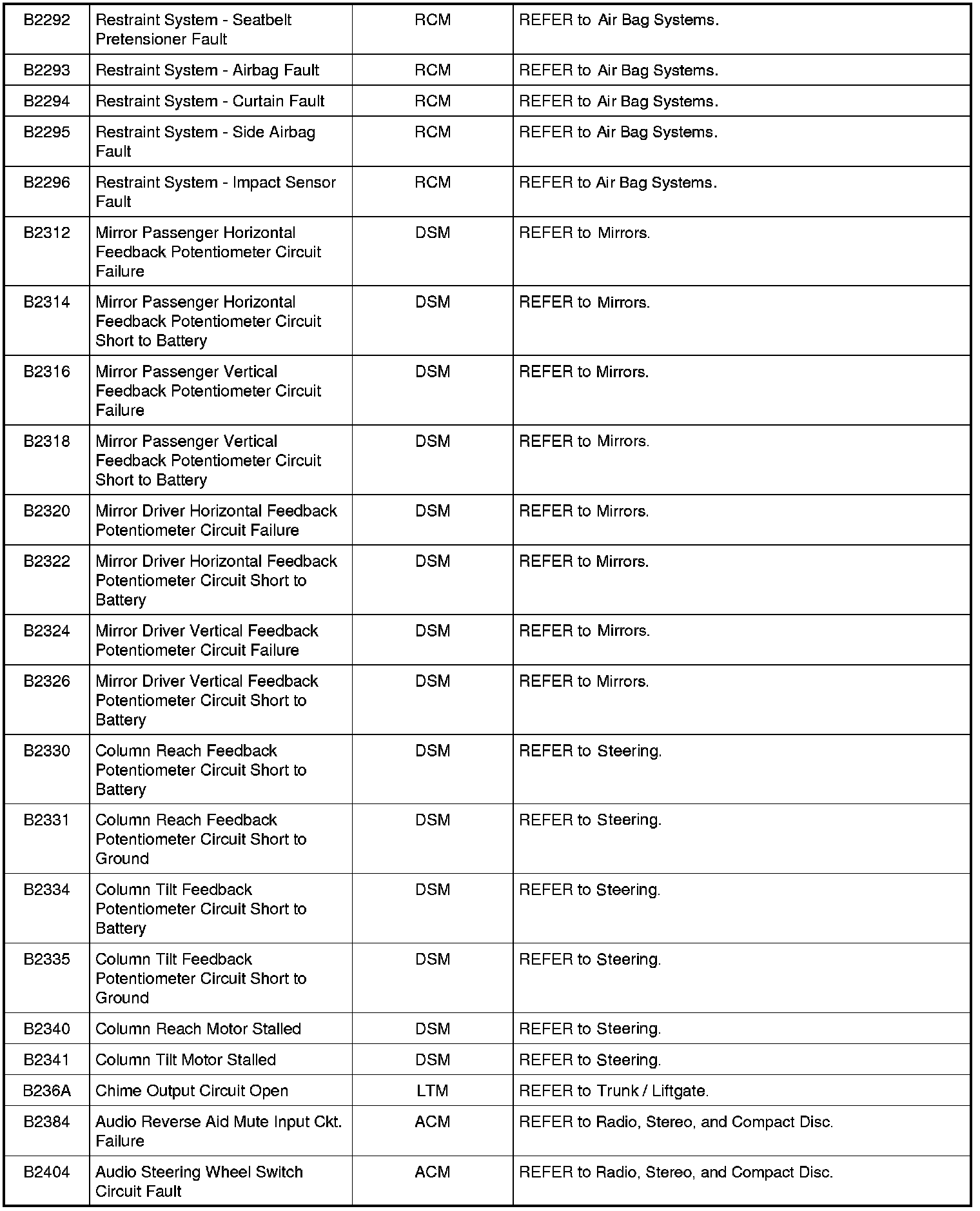

B236A-B2404:

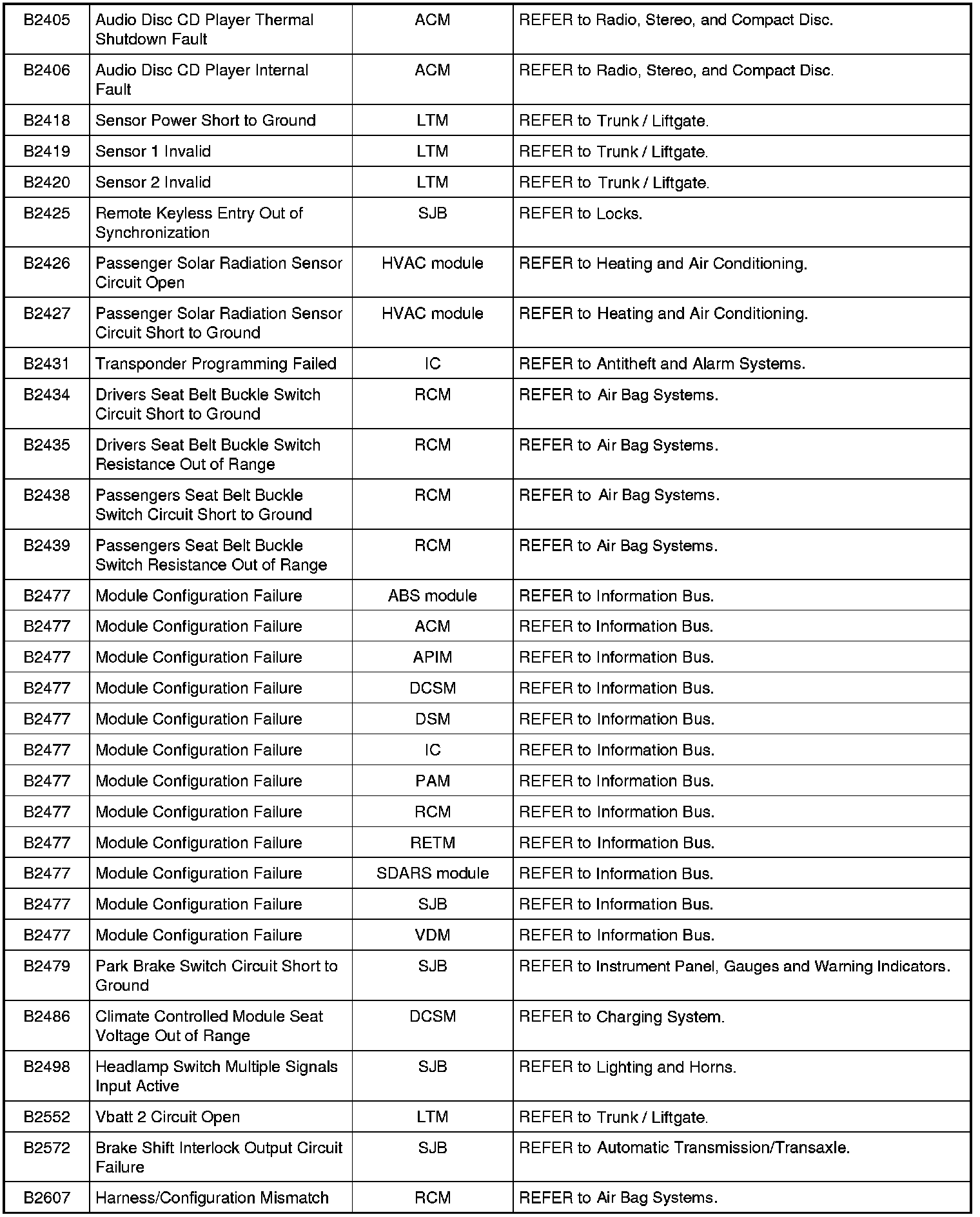

B2405-B2607:

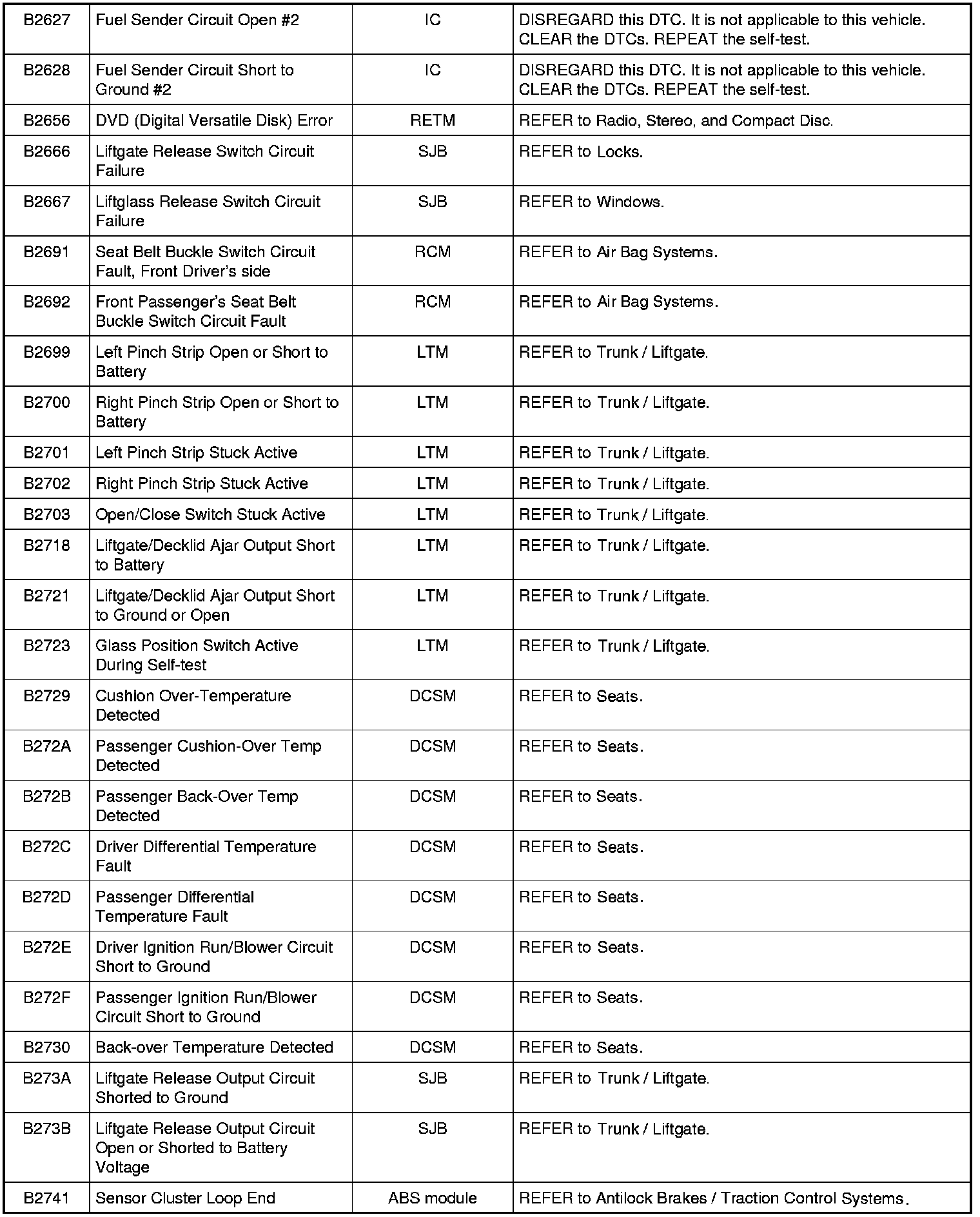

B272A-B2741:

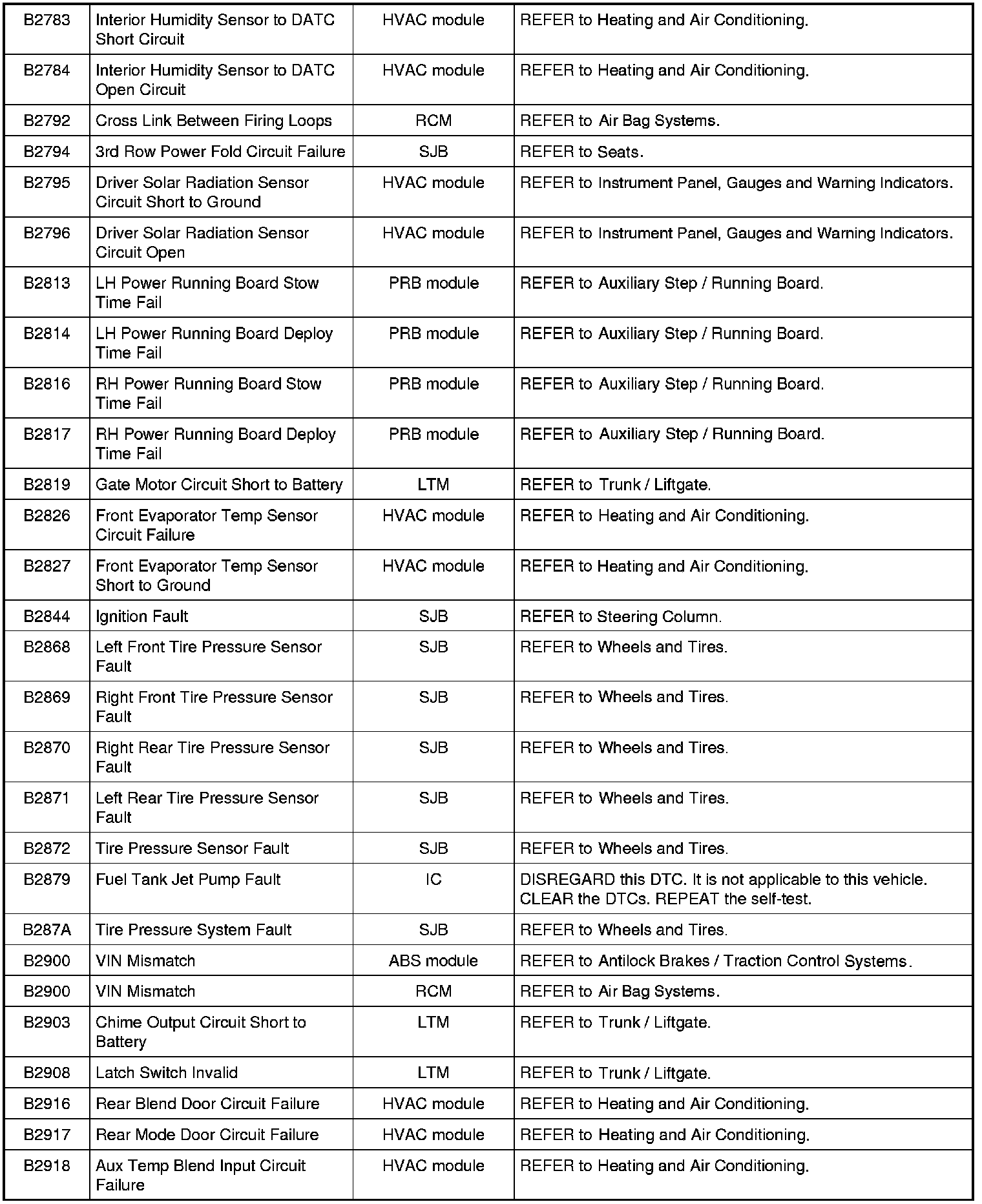

B287A-B2918:

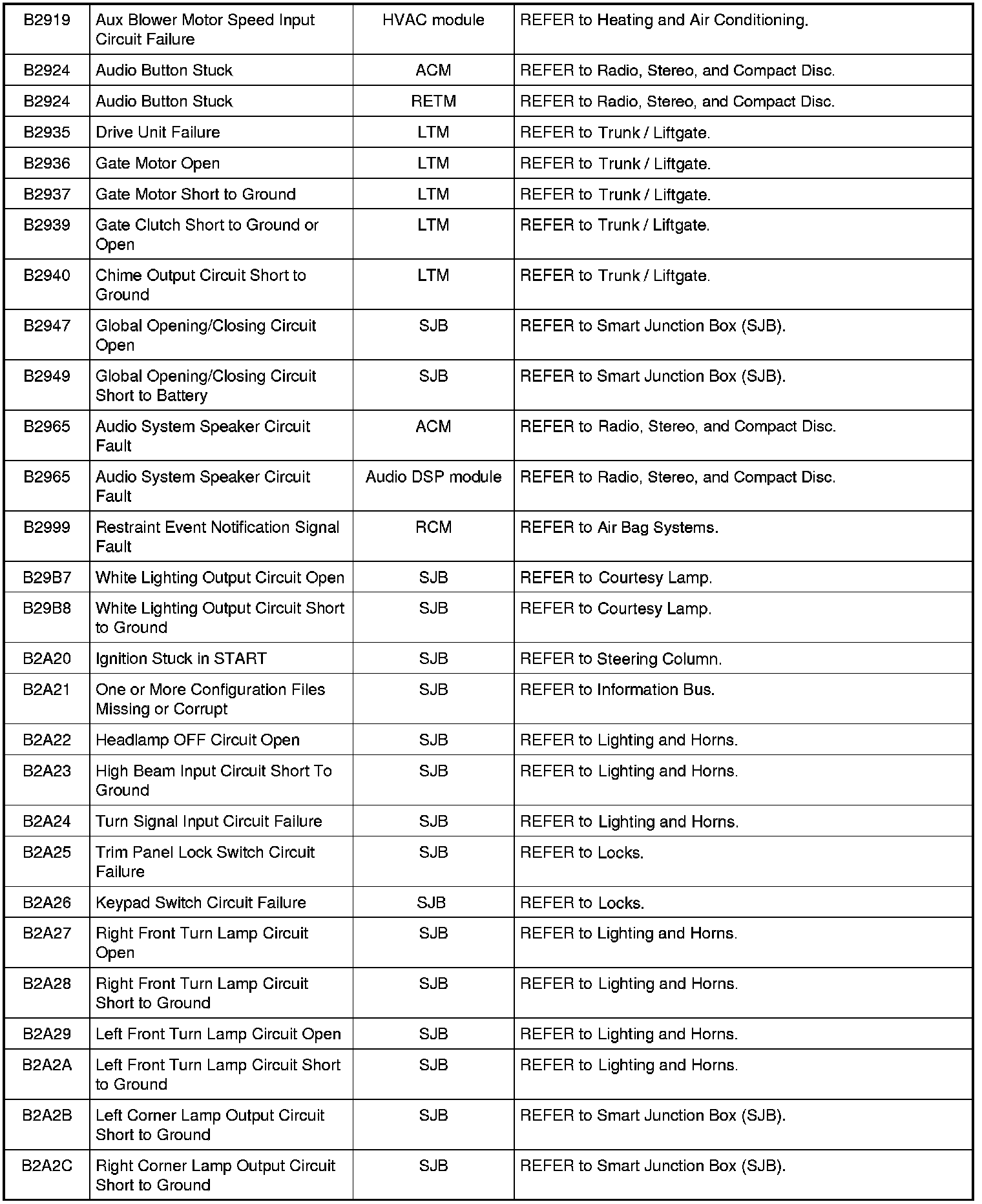

B2A2A-B2999:

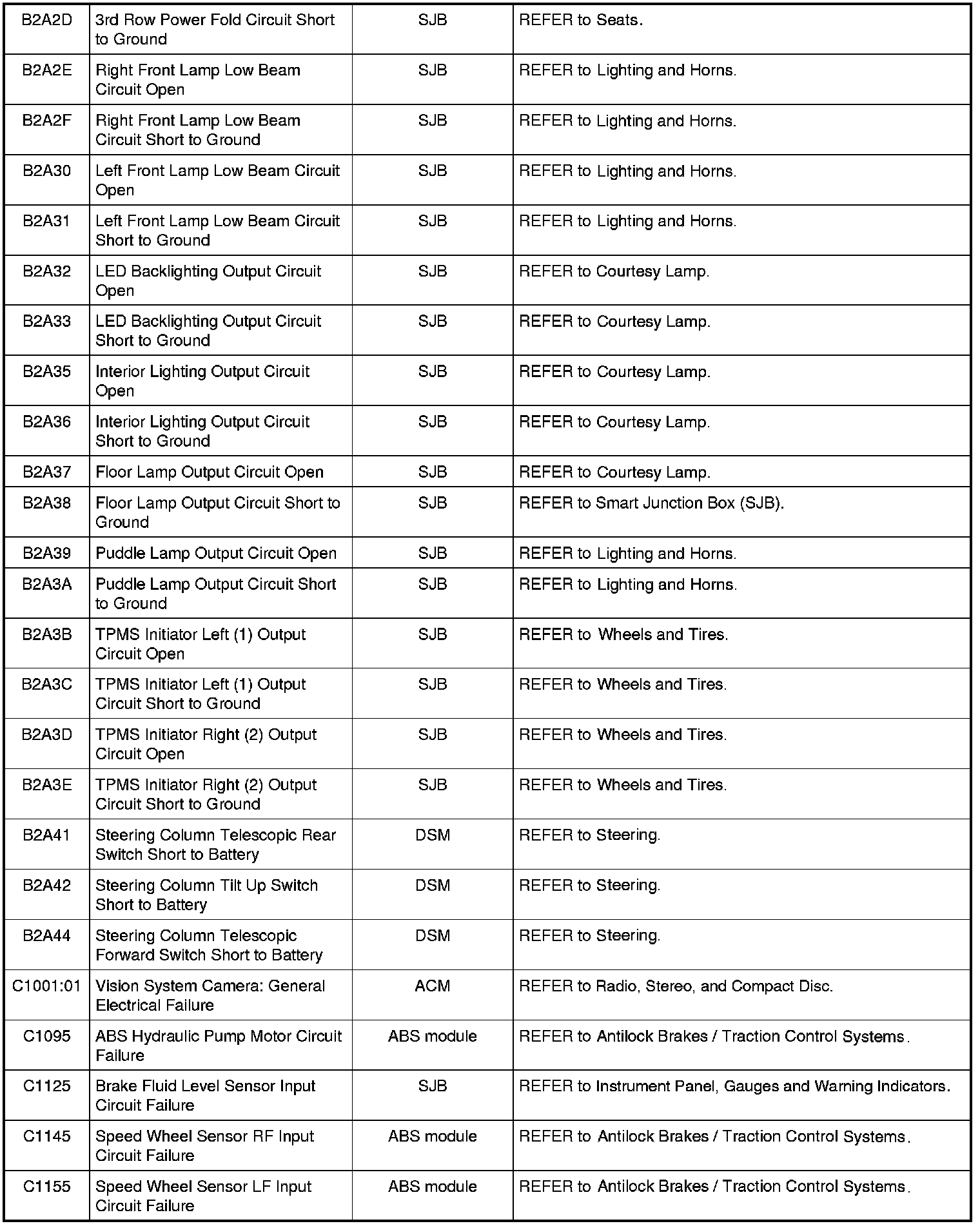

B2A3A-B2A44 / C1001:01-C1155:

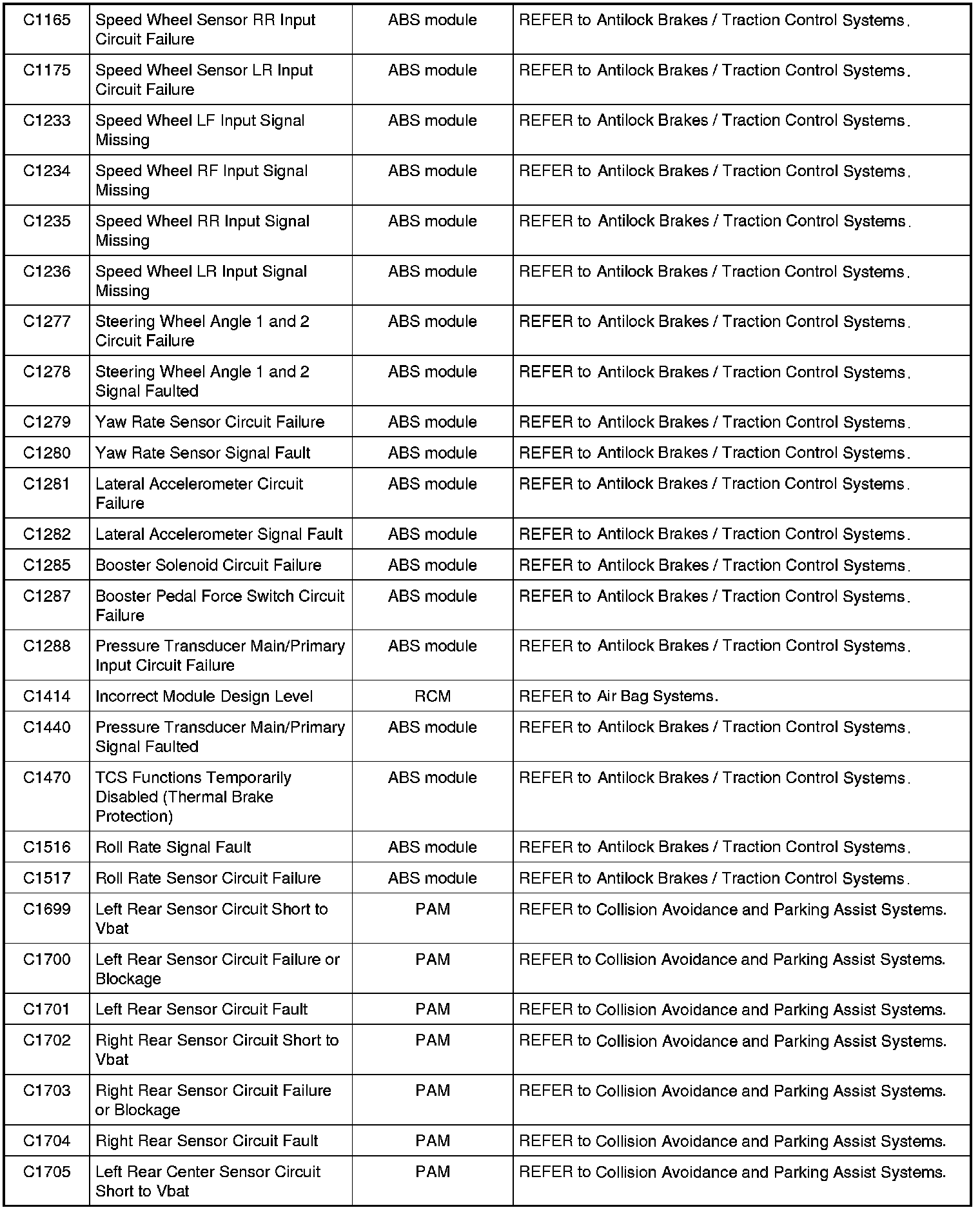

C1165-C1705:

C1706-C1790:

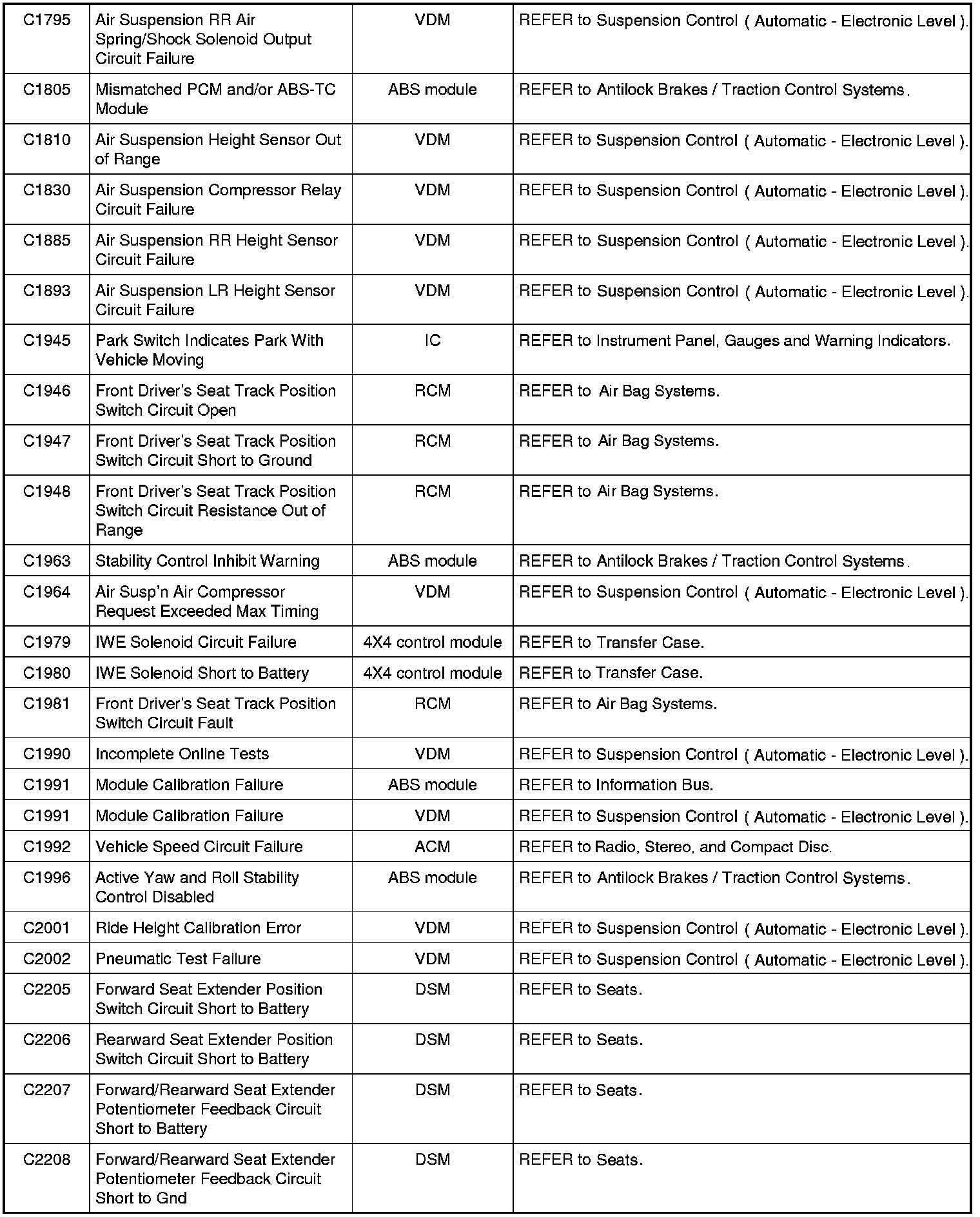

C1795-C2208:

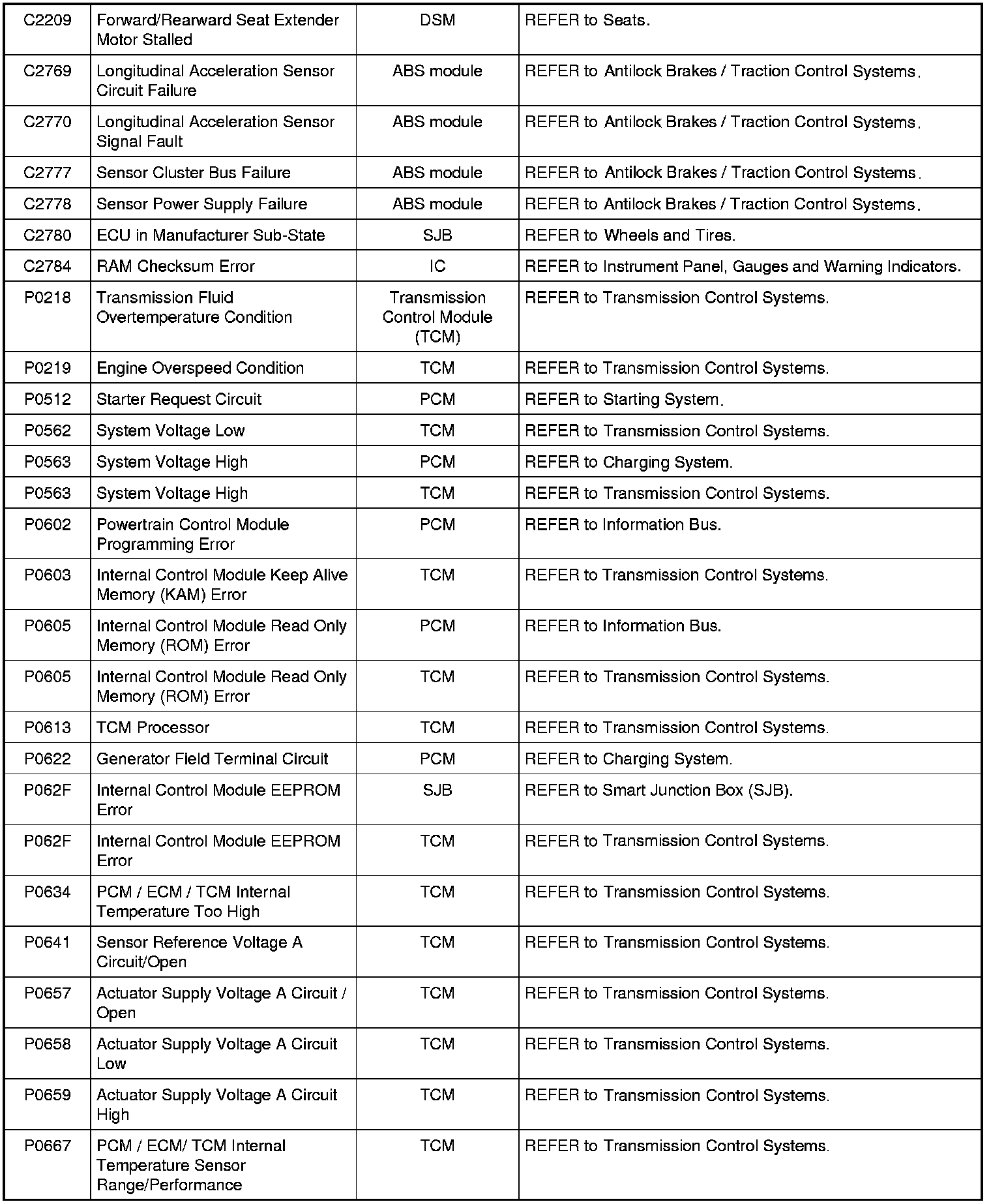

C2209-C2784 / P062F-P0667:

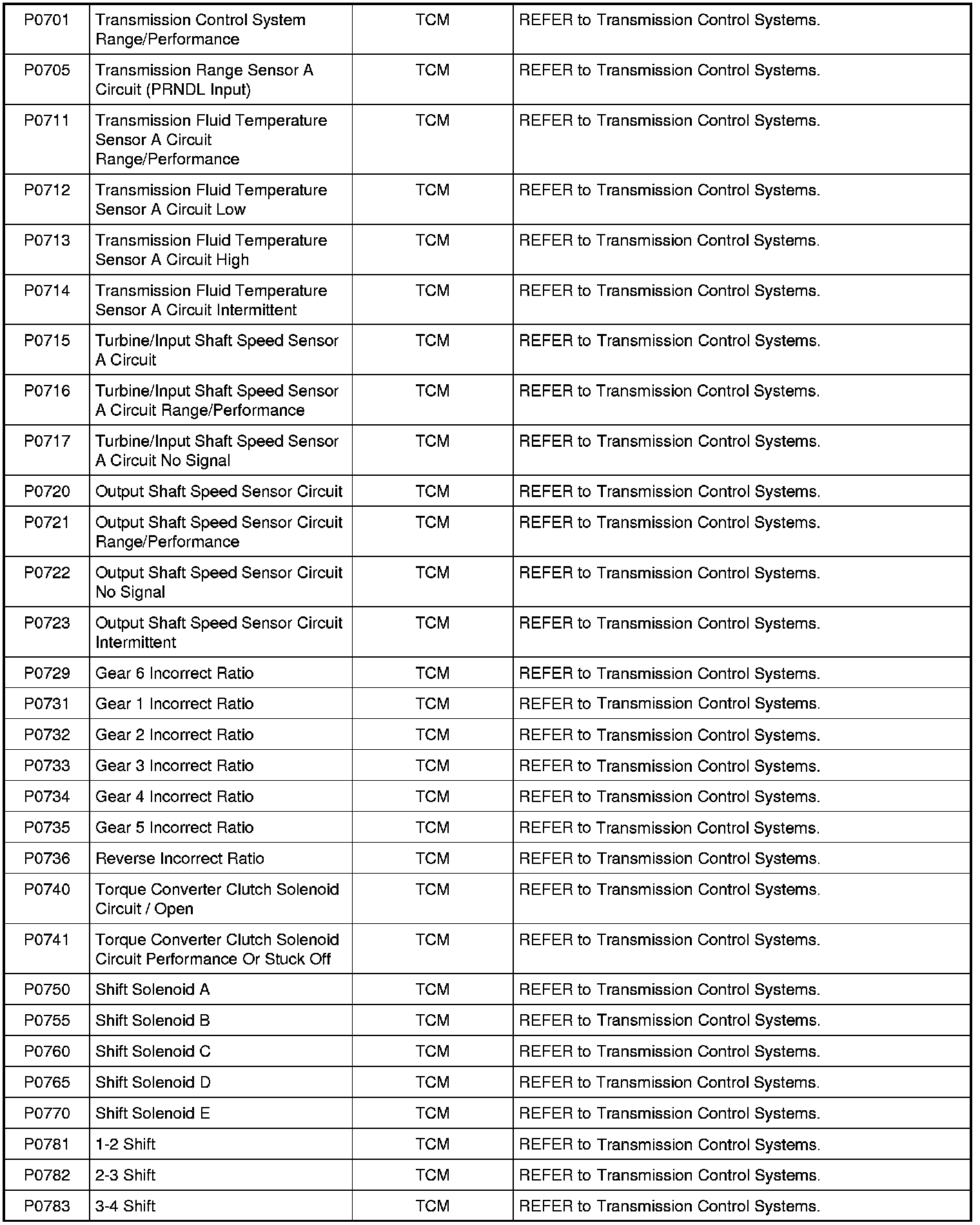

P0701-P0783:

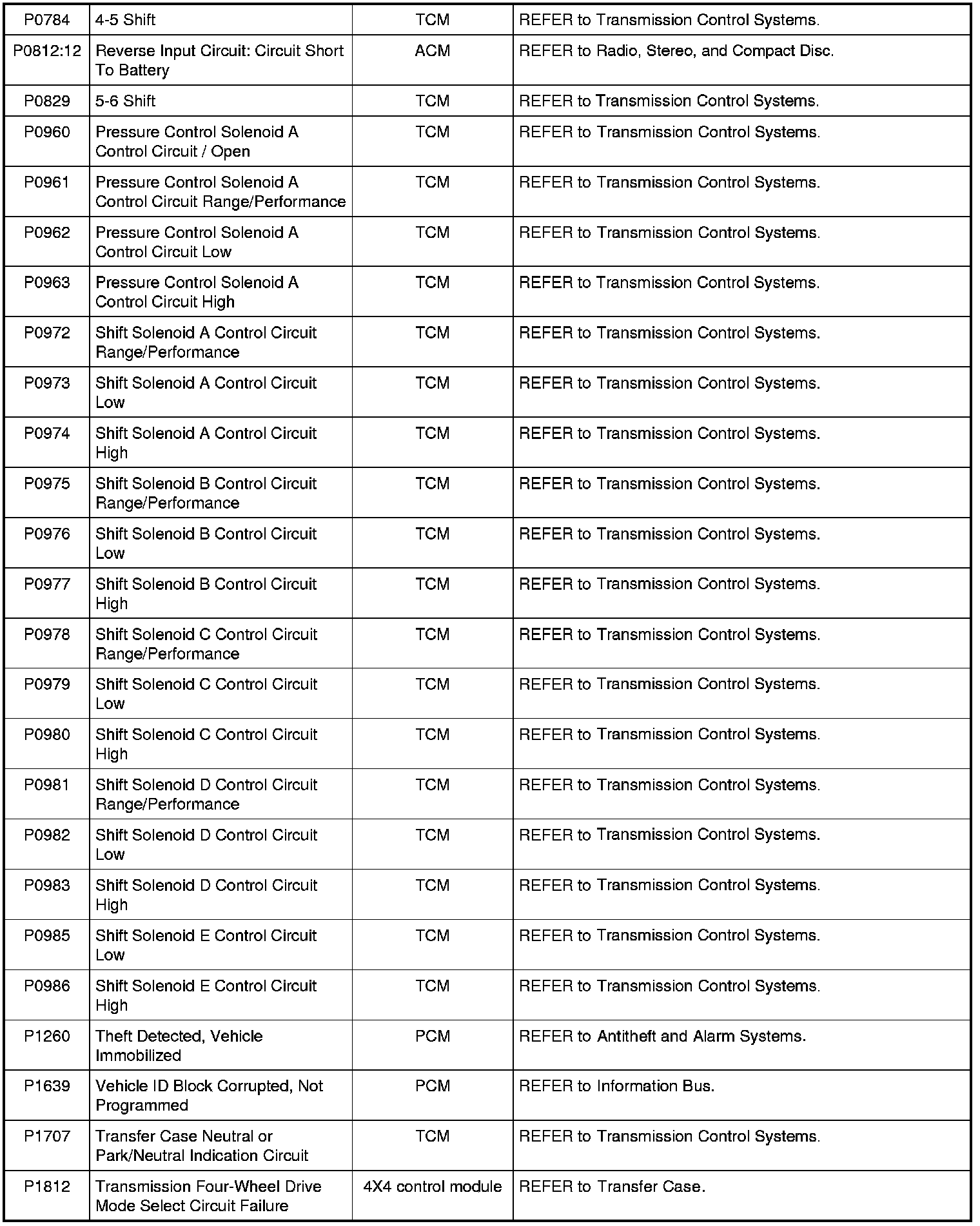

P0784-P1812:

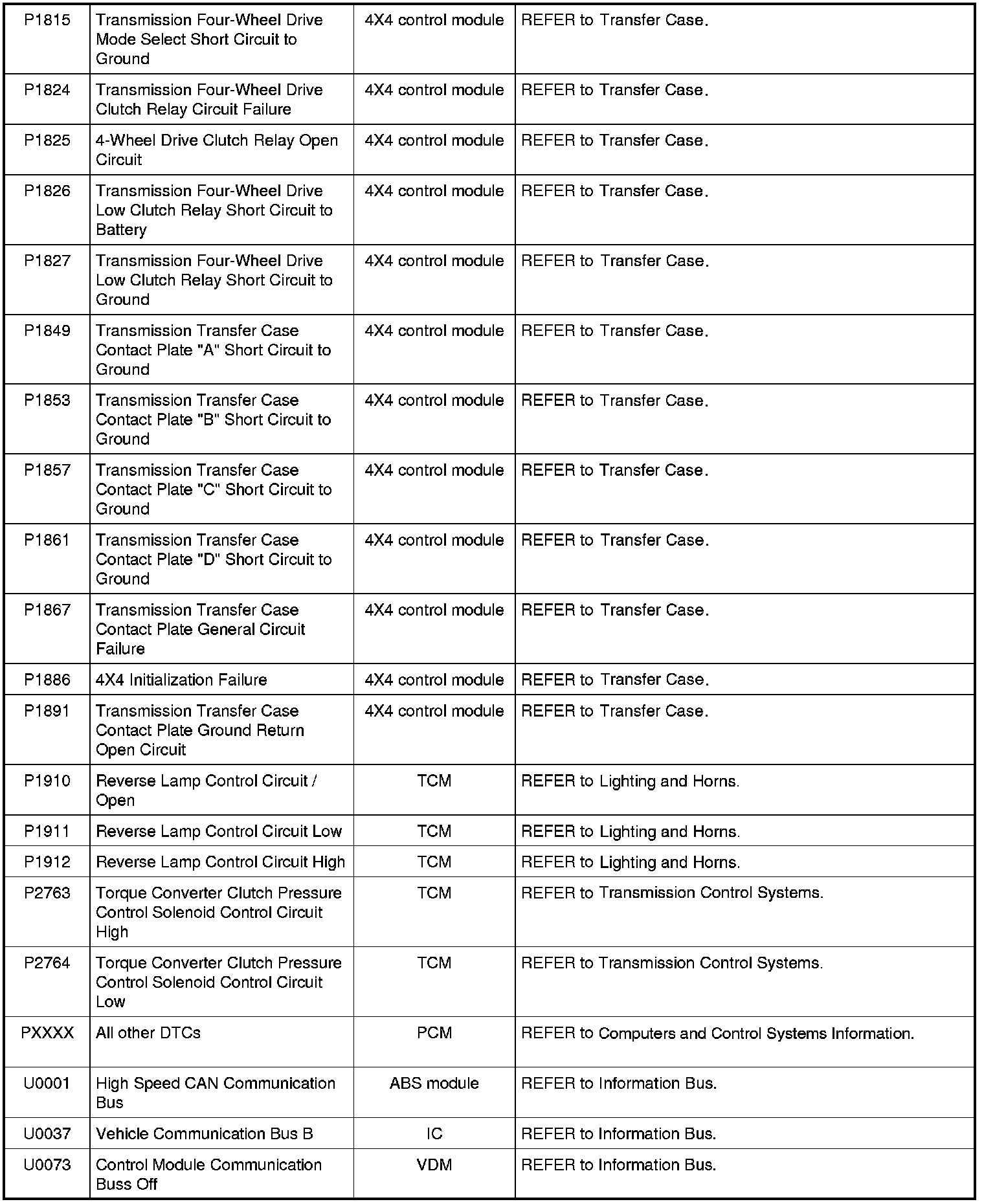

PXXXX-P2764 / U0001-U0073:

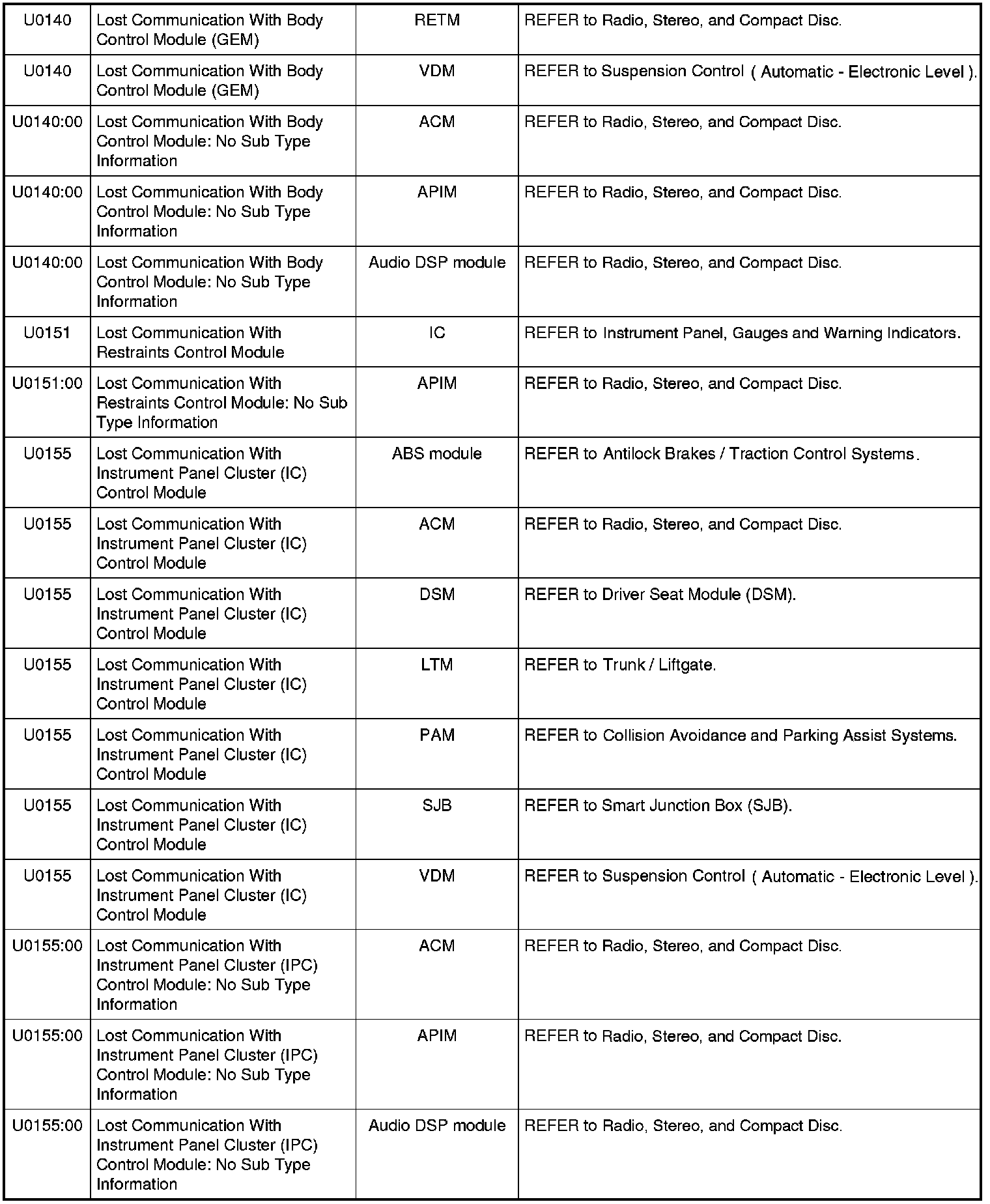

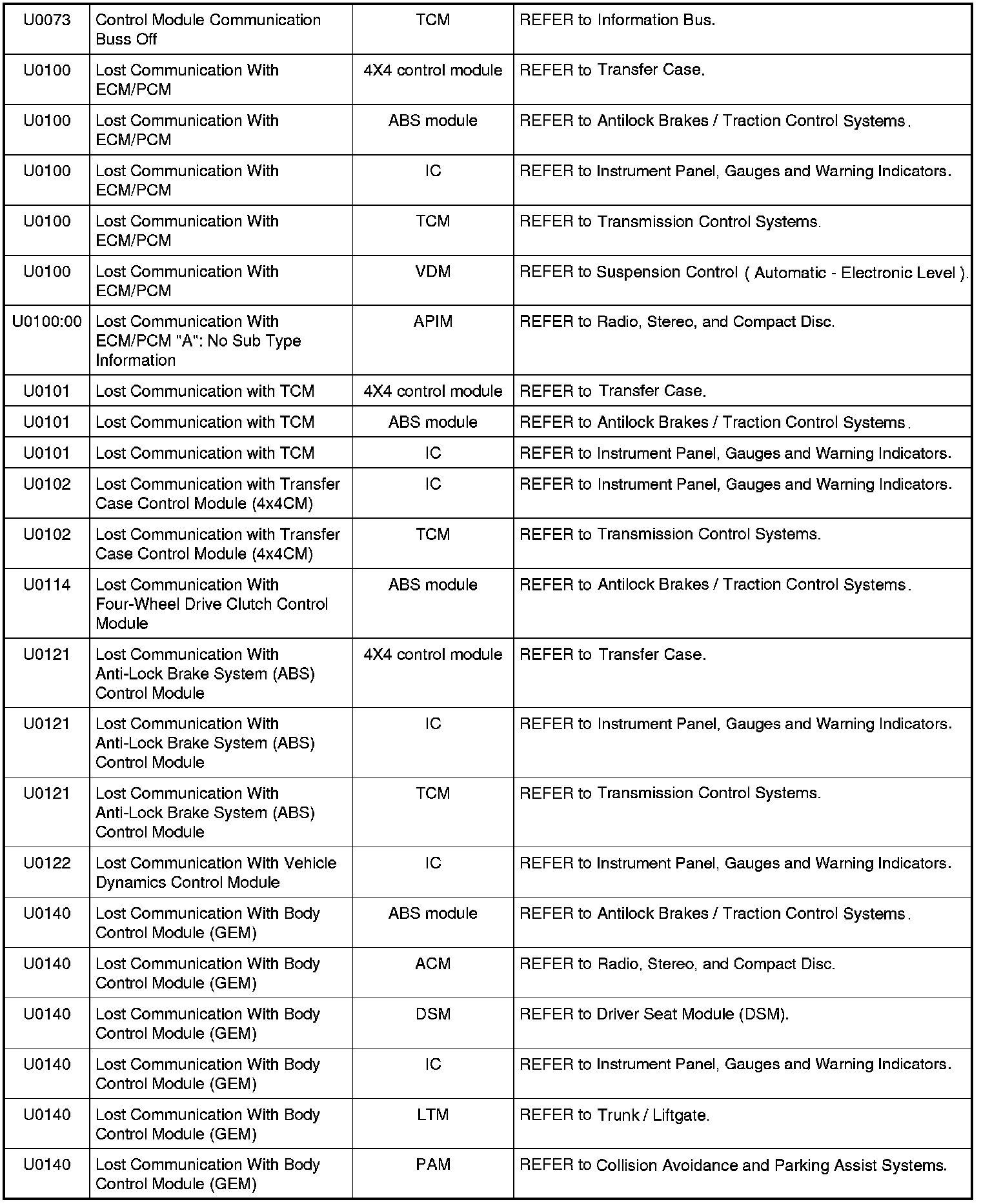

U0073-U0140:

U0140-U0155:00:

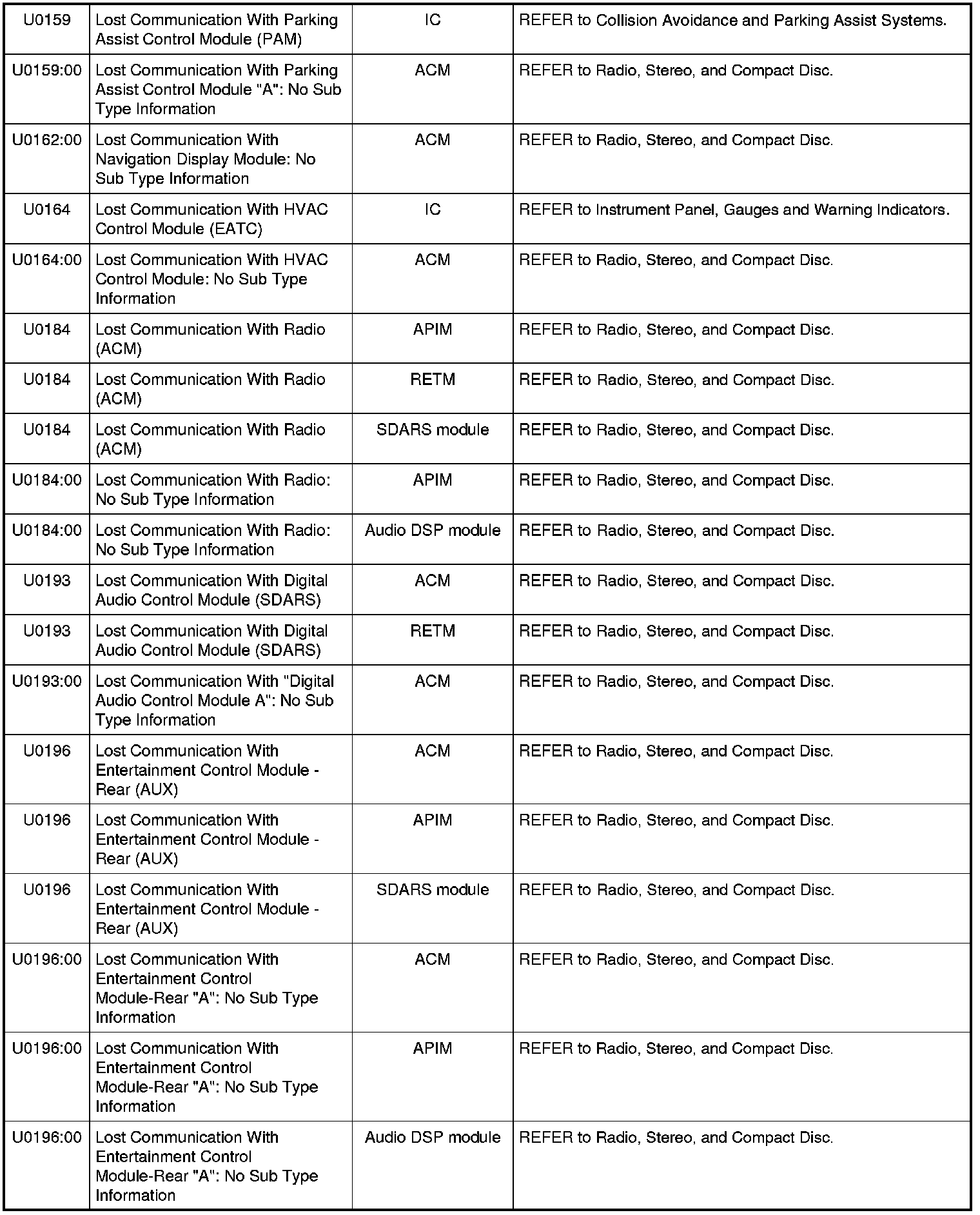

U0159-U0196:00:

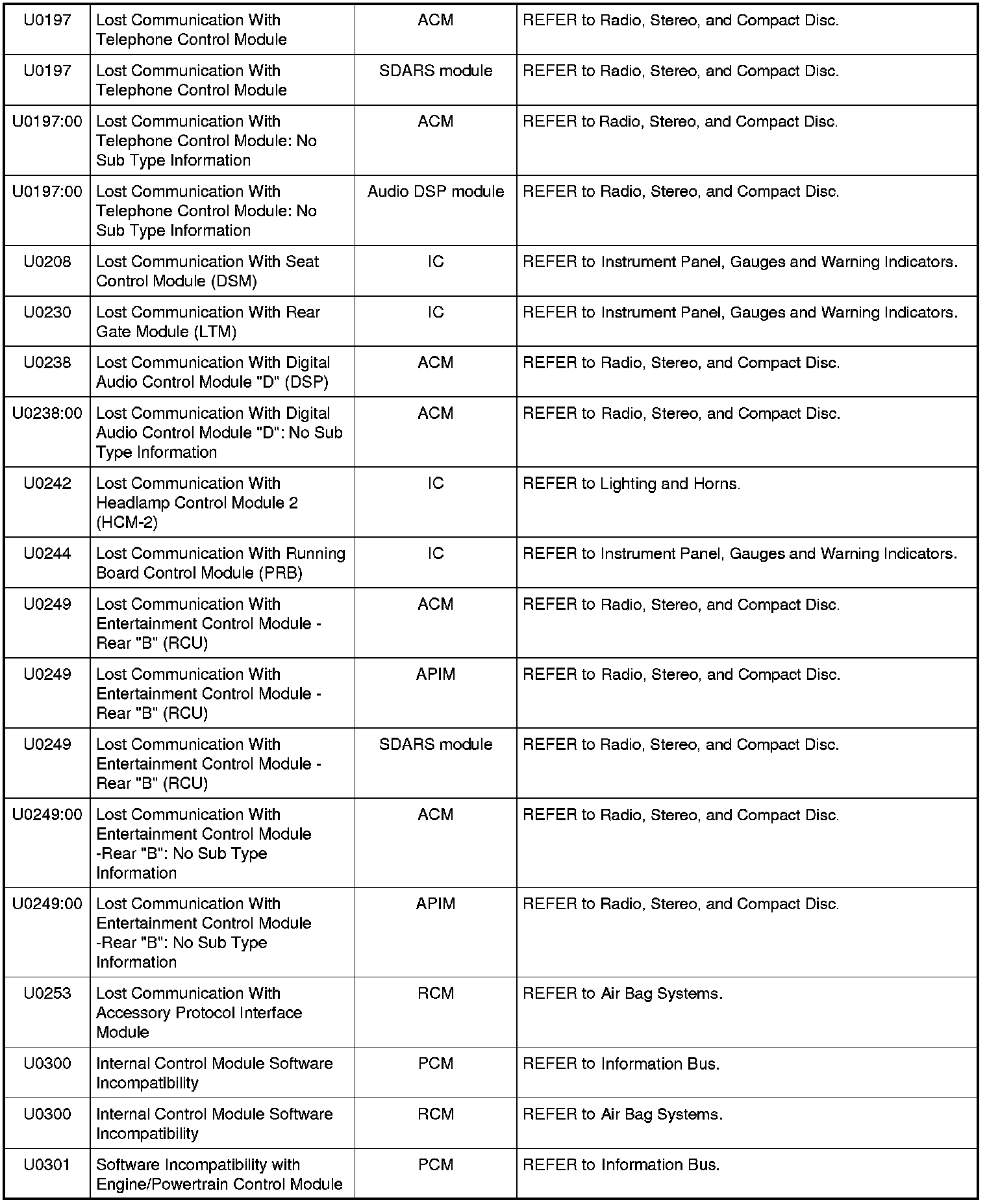

U0197-U0301:

U201A:51-U2023:

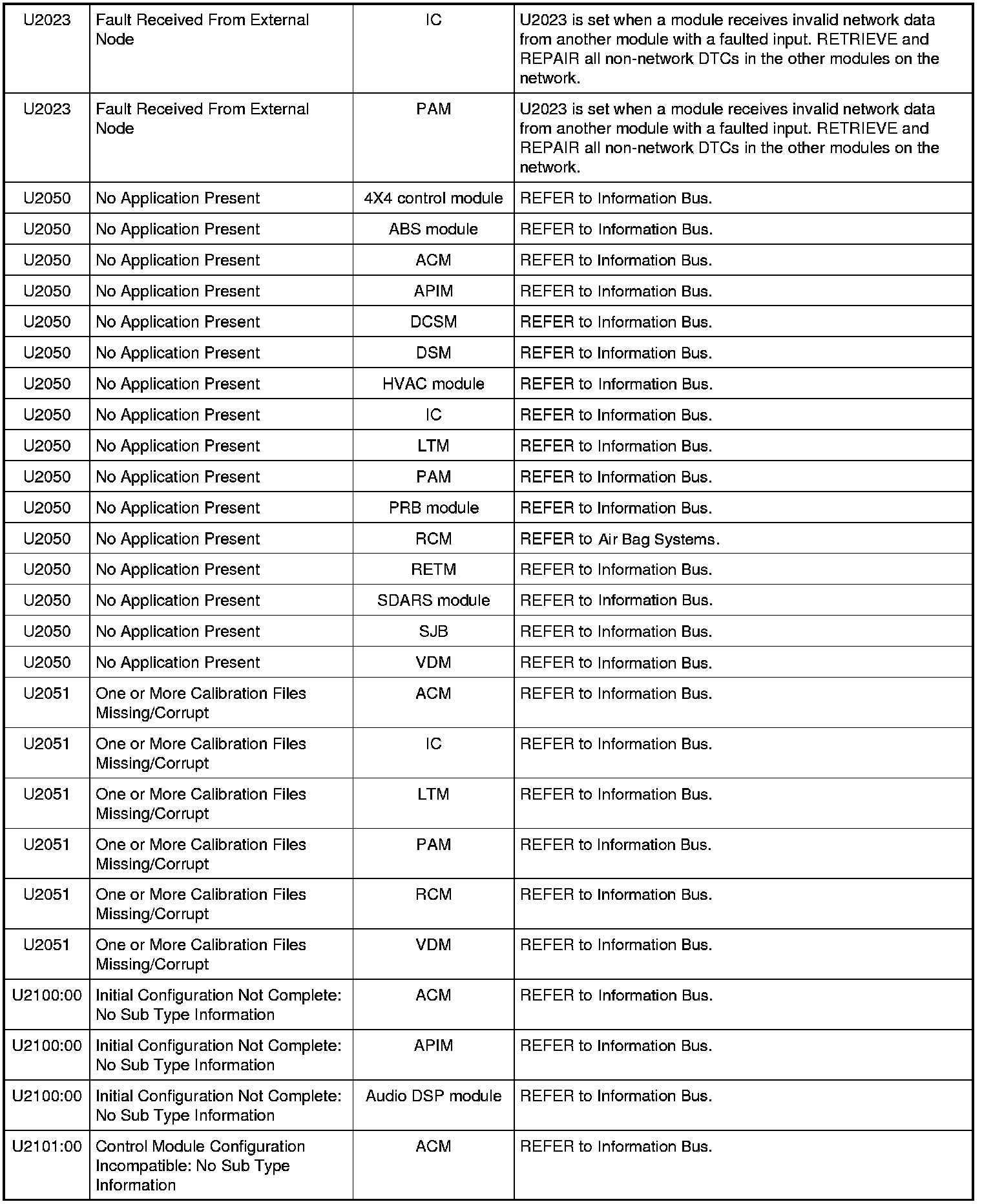

U2023-U2101:00:

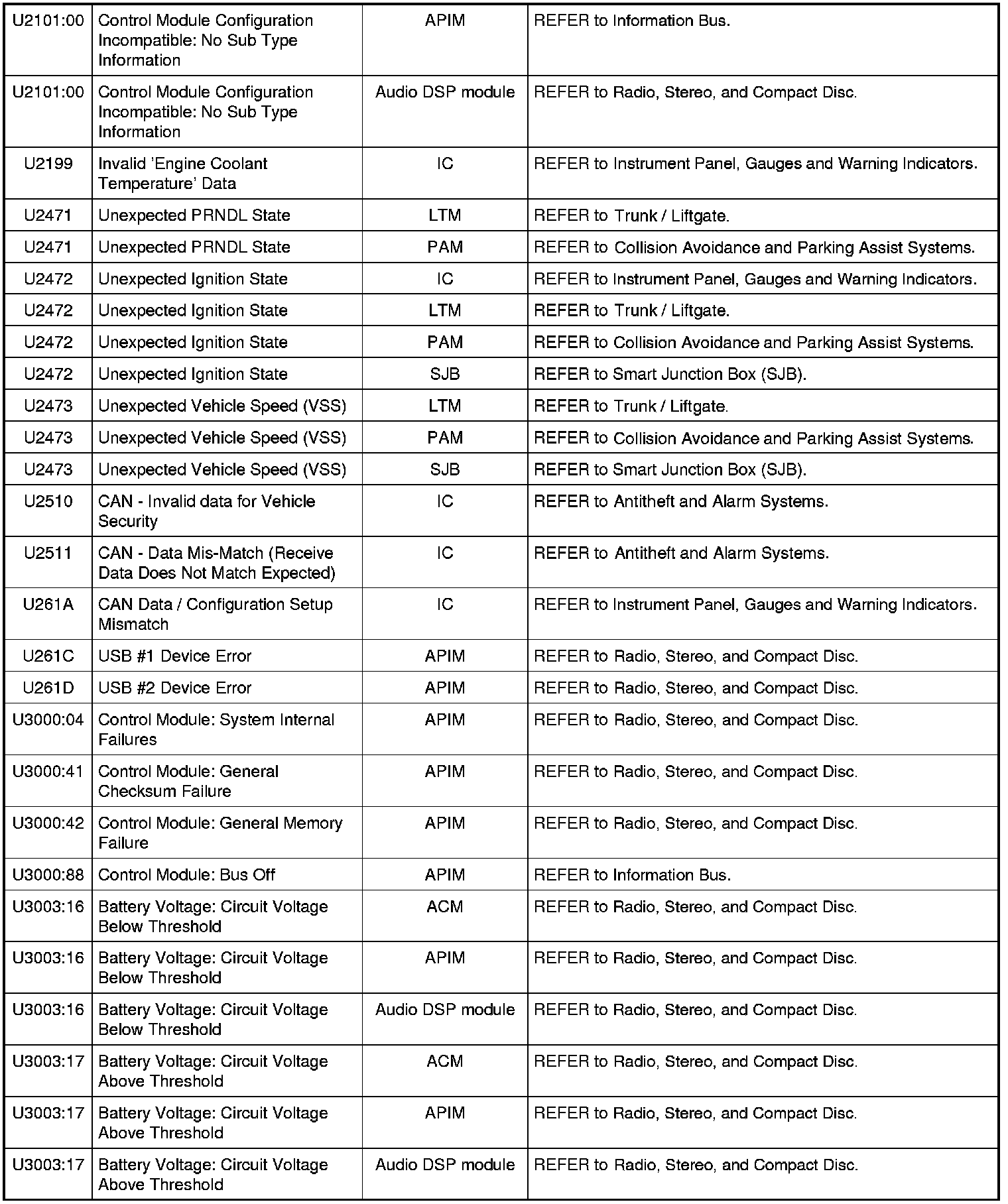

U261A-U3003:17:
