Keyless Entry Key-Pad: Service and Repair
Keyless Entry KeypadRemoval and Installation 1.
Remove the exterior mirror.
2.

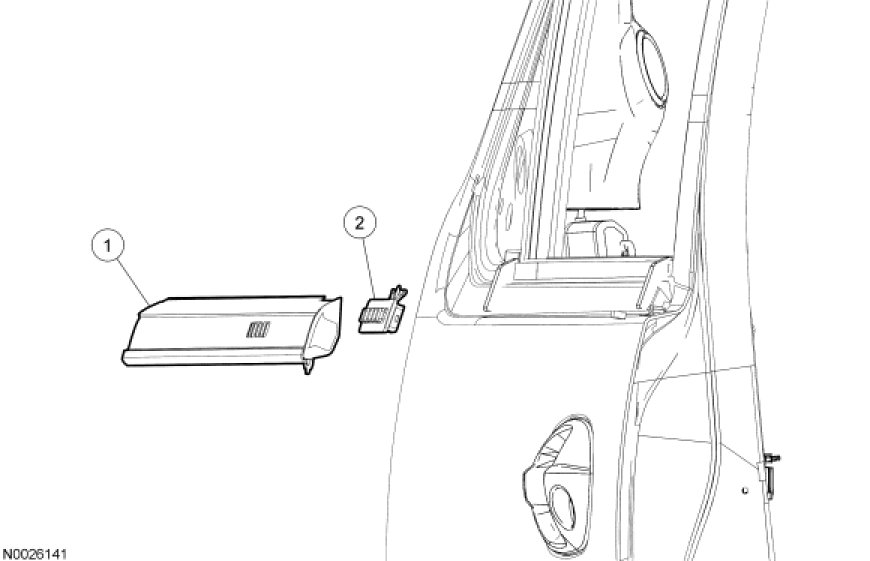

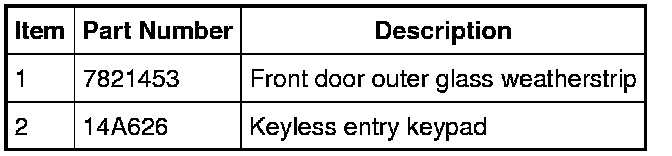

Remove the front door outer glass weatherstrip.
-
Disconnect the electrical connector.
3.

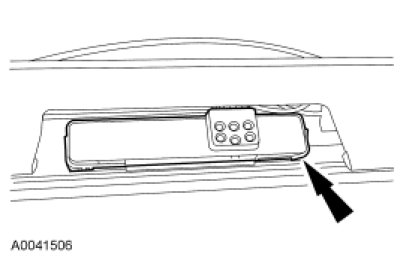

Release the tabs and remove the
keyless entry keypad.
-
Disconnect the keypad harness retaining clips from the weatherstrip.
4.
To install, reverse the removal procedure.
