Power Mirror Switch: Service and Repair

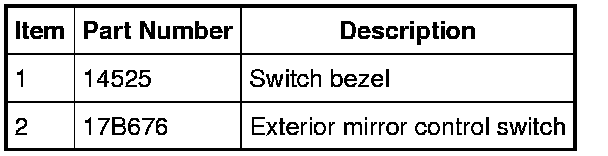

Exterior Mirror Control SwitchNOTE: Expedition shown, Navigator similar.

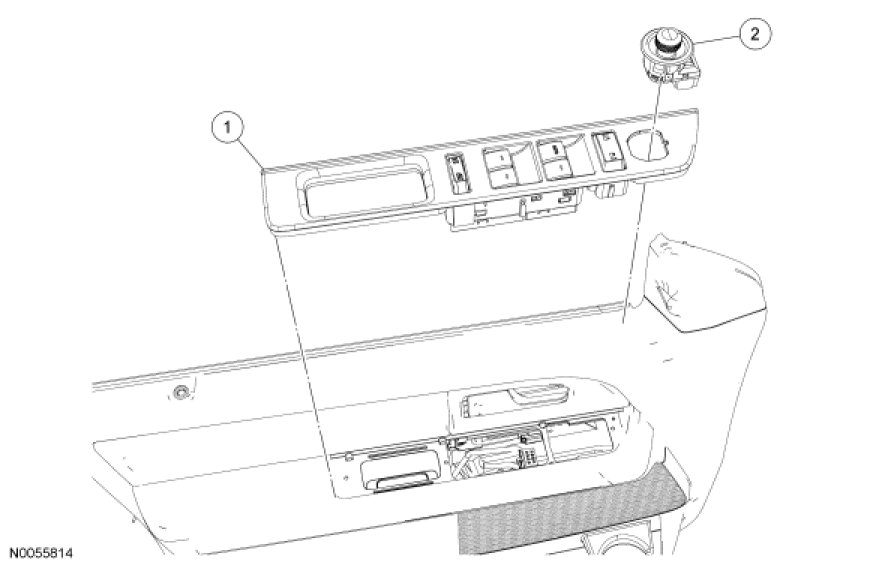

Removal and Installation 1.
Remove the driver front door trim panel.
2.

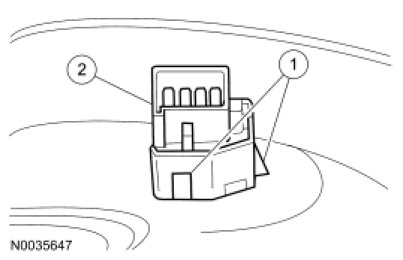

Remove the exterior mirror control switch.
1.
Depress the locking tabs.
2.
Remove the exterior mirror control switch.
3.
To install, reverse the removal procedure.
