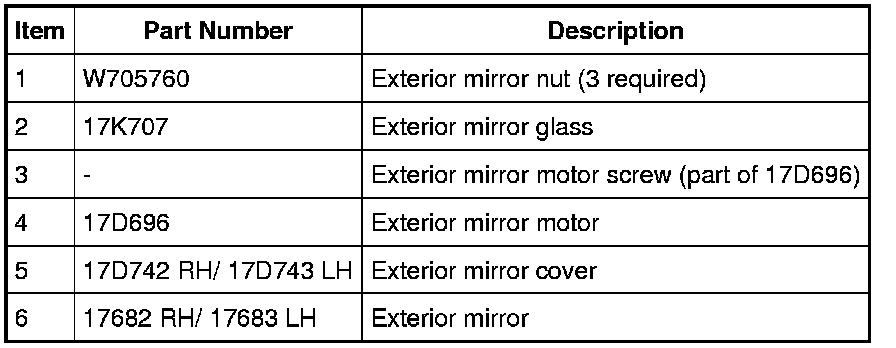

Exterior Mirrors - Exploded View

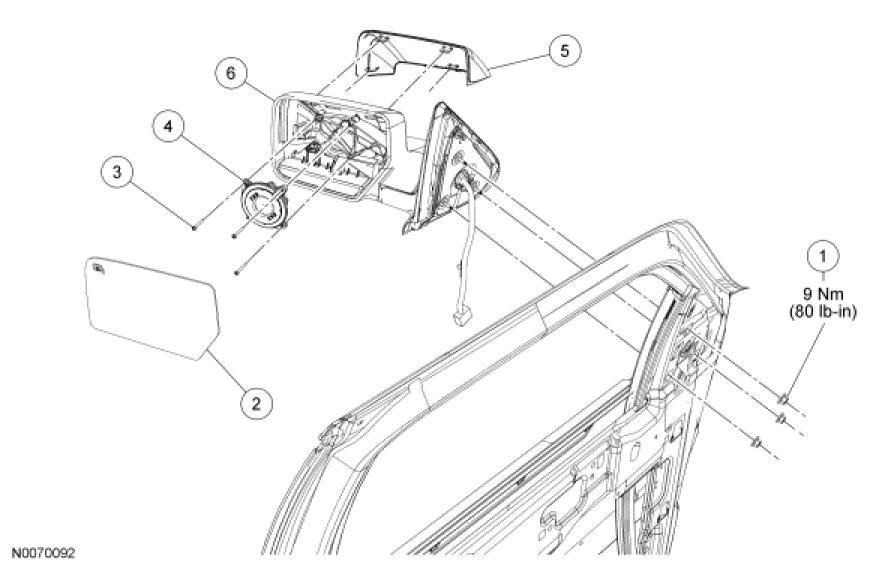

Exterior Mirrors - Exploded ViewNOTE: LH side shown, RH side similar.
1.
For additional information, refer to the procedures.
2.
For additional information on the mirror mounted puddle lamps and turn signals, refer to Lighting and Horns.
Lighting and Horns
