Heated Seat Module - Second Row

Heated Seat Module - Second Row

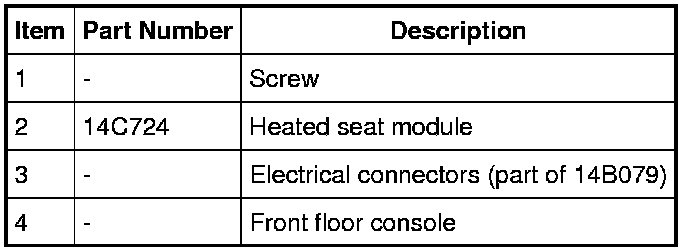

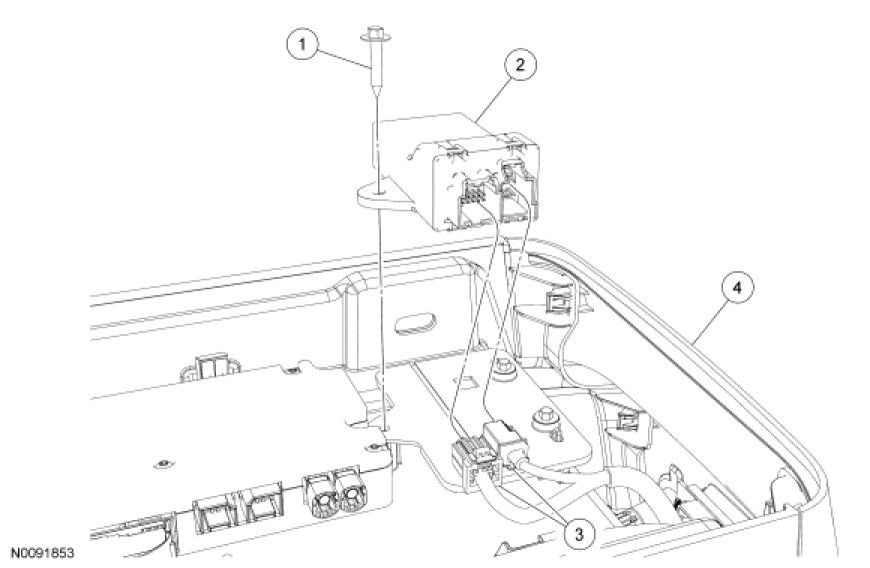

NOTE: Bottom of floor console shown.










Removal and Installation

1. Remove the front floor console.

2. Disconnect the 2 heated seat module electrical connectors at the bottom of the front floor console.

3. Remove the screw and un-hook the heated seat module.

4. To install, reverse the removal procedure.

5. Carry out the auto-configuration sequence to program the heated seat module for use with a dual momentary switch.
- Start the vehicle and push the low button on either heated seat switch.

- Operate the heated seats, monitor the indicators and verify the system is operating correctly in high and low.
