Wheel Speed Sensor - Rear

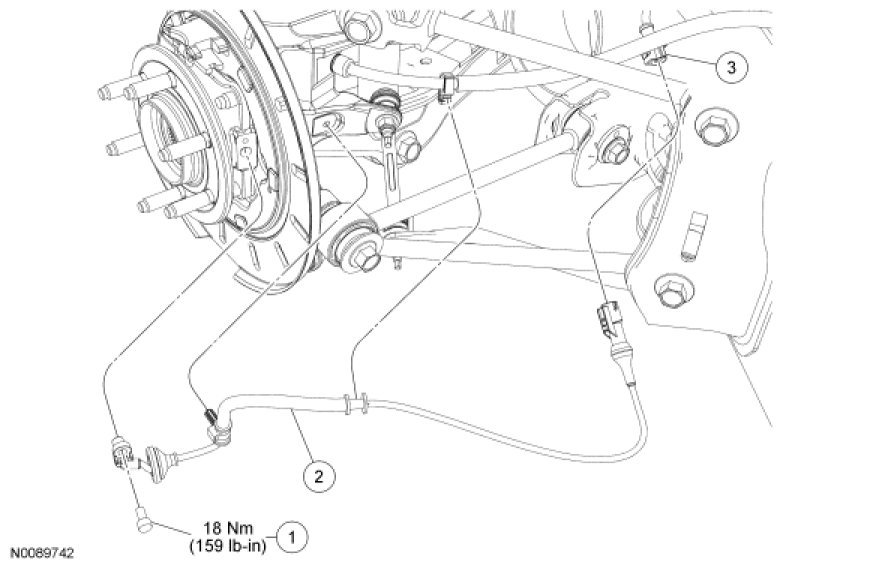

Wheel Speed Sensor - RearRemoval and Installation 1.
Remove the parking brake shoes.
2.
Disconnect the
wheel speed sensor harness from the retaining clips.
3.
Remove the rear
wheel speed sensor bolt and the sensor.
-
To install, tighten to 18 Nm (159 lb-in).
4.
To install, reverse the removal procedure.
