Evaporator Temperature Sensor / Switch: Service and Repair

Air Conditioning (A/C) Evaporator Discharge Air Temperature Sensor

Removal and Installation

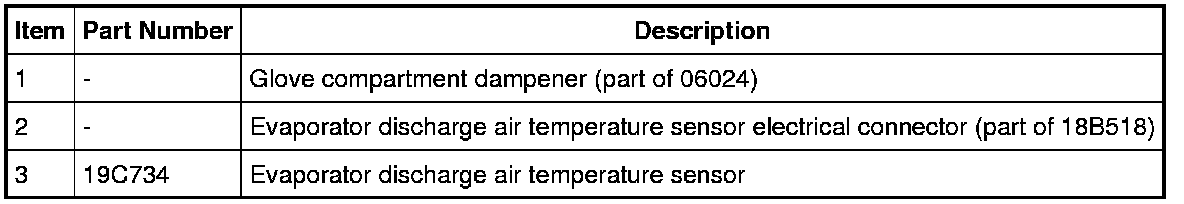

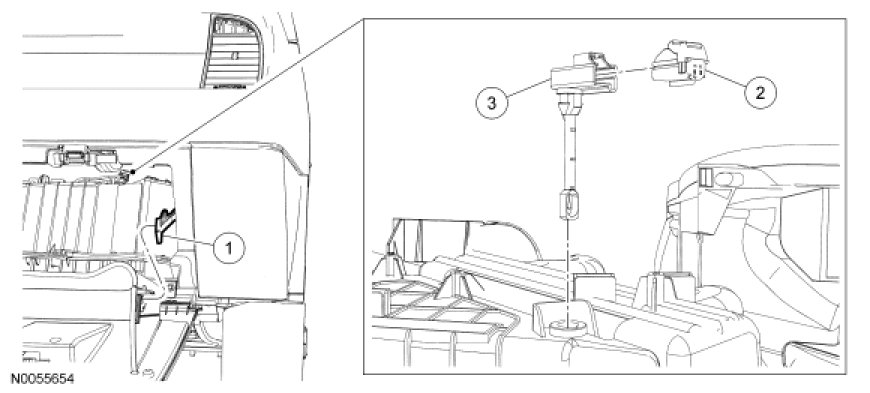

1. Detach the glove compartment dampener and lower the glove compartment.

2. Disconnect the evaporator discharge air temperature sensor electrical connector.

3. Carefully pry the evaporator discharge air temperature sensor probe out of the heater core and evaporator core housing.

4. To install, reverse the removal procedure.
