Plenum Chamber

Plenum Chamber

Removal and Installation

1. Remove the heater core and evaporator core housing. For additional information, refer to Heater Core And Evaporator Core Housing .

2. Disconnect the mode door actuator electrical connector and position the wire harness aside.

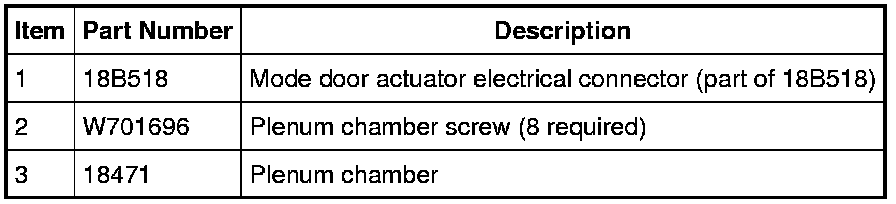

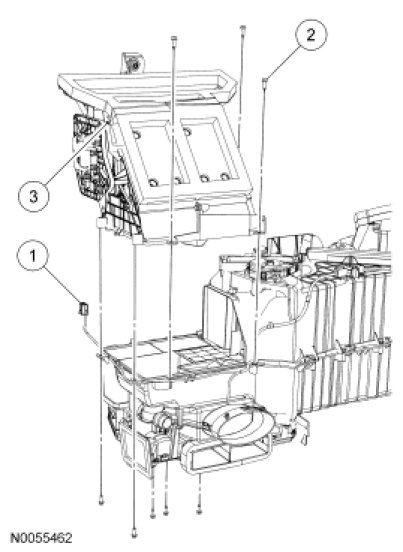

3. Remove the 8 plenum chamber screws.

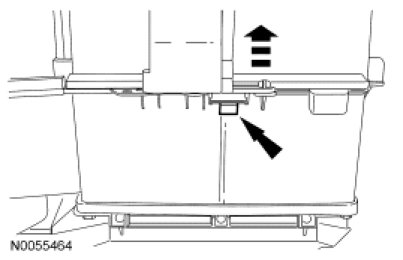

4. Release the plenum chamber clip and remove the plenum chamber.

5. To install, reverse the removal procedure.
