Door Switch: Service and Repair

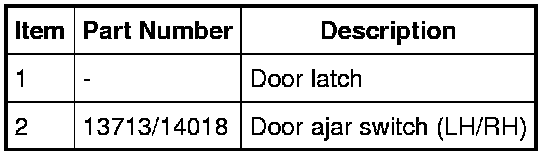

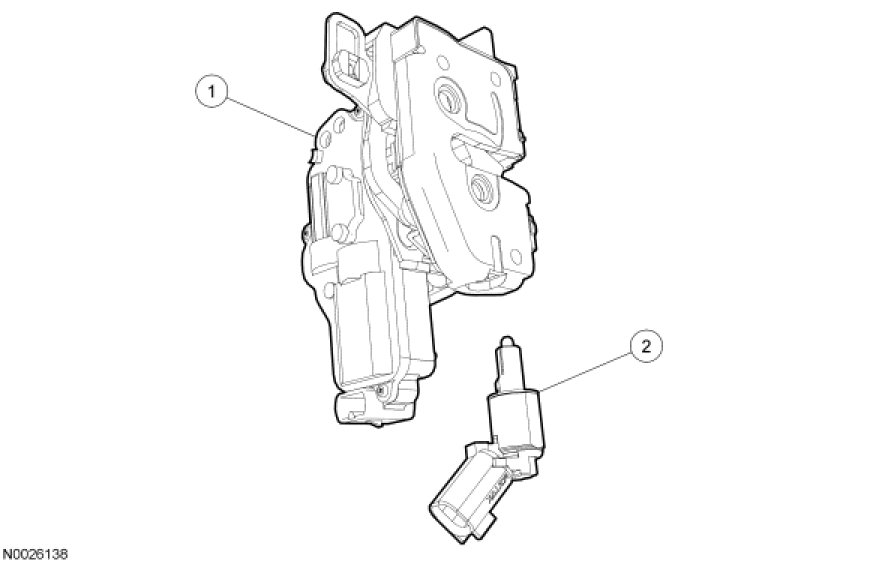

Door Ajar SwitchNOTE: LH front door latch shown, others similar.
Removal and Installation 1.
Remove the door latch. For additional information, refer to Front Door Latch
Removal and Replacement or Rear Door Latch
Removal and Replacement.
2.
Release the locking tab and remove the door ajar switch.
3.
To install, reverse the removal procedure.
