Diagnostic Trouble Code Tests and Associated Procedures
6R80
Diagnostic Trouble Code (DTC) Charts

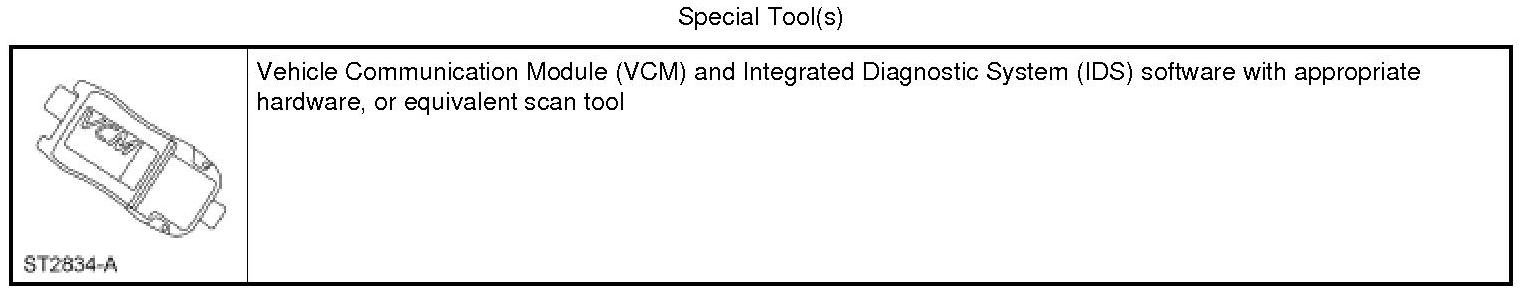

Using a scan tool to retrieve DTCs, begin with and repair all non-transmission related DTCs. Start with the U-DTC codes (communication link codes) then repair any transmission-related DTCs.
Limp-home mode is a default condition to protect the engine and transmission when a fault occurs. Limp-home mode depends on the actual gear the vehicle was in when the fault has occurred.
- For gears 1-3, the limp-home default will be 3rd gear.
- For gears 4-6, the limp-home default will be 5th gear.
The limp-home gear will be held until the vehicle is placed in R, P or the vehicle has been restarted. After these action(s) the vehicle will default to the limp-home mode of 3rd gear.

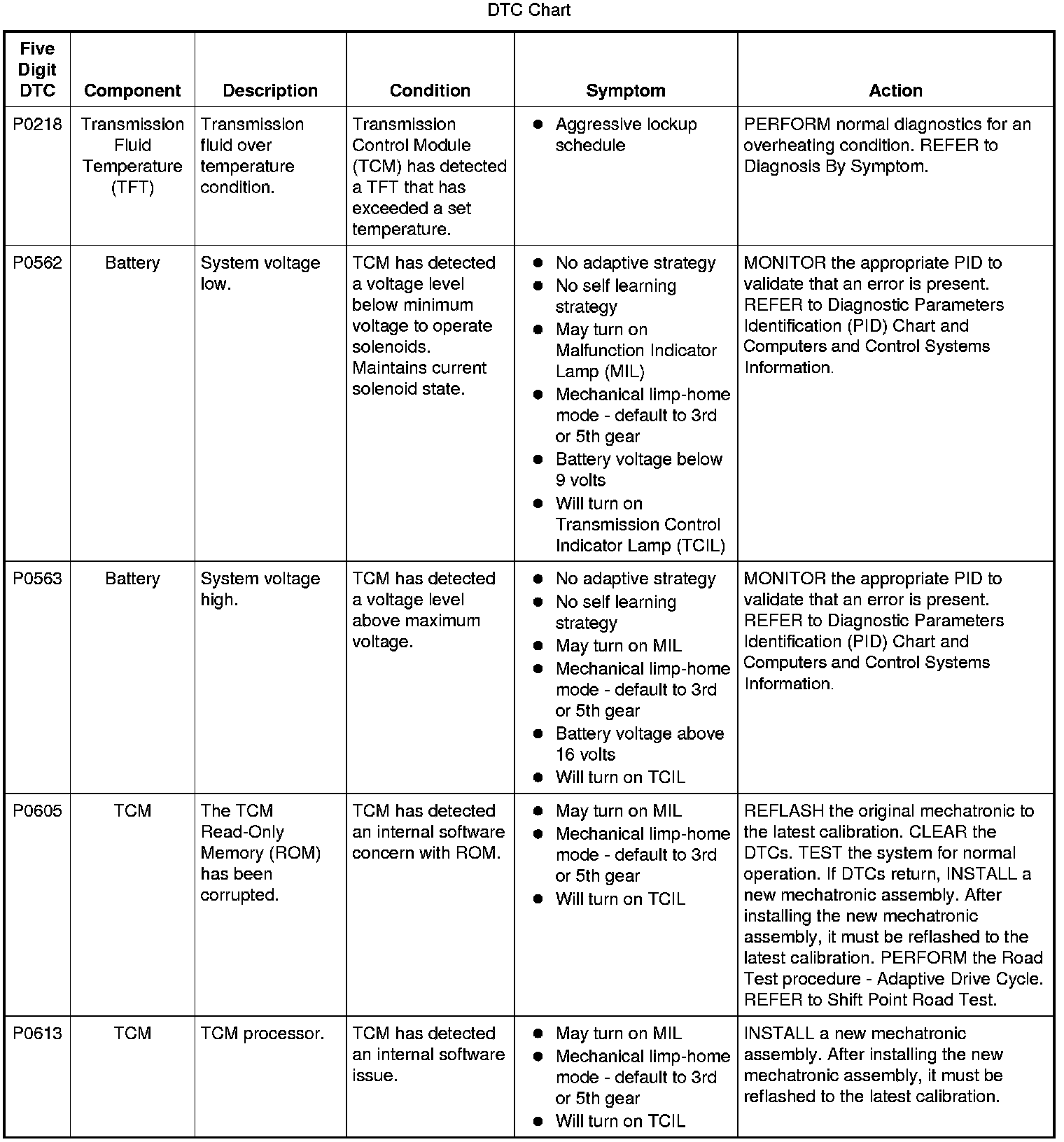

P0218-P0613:

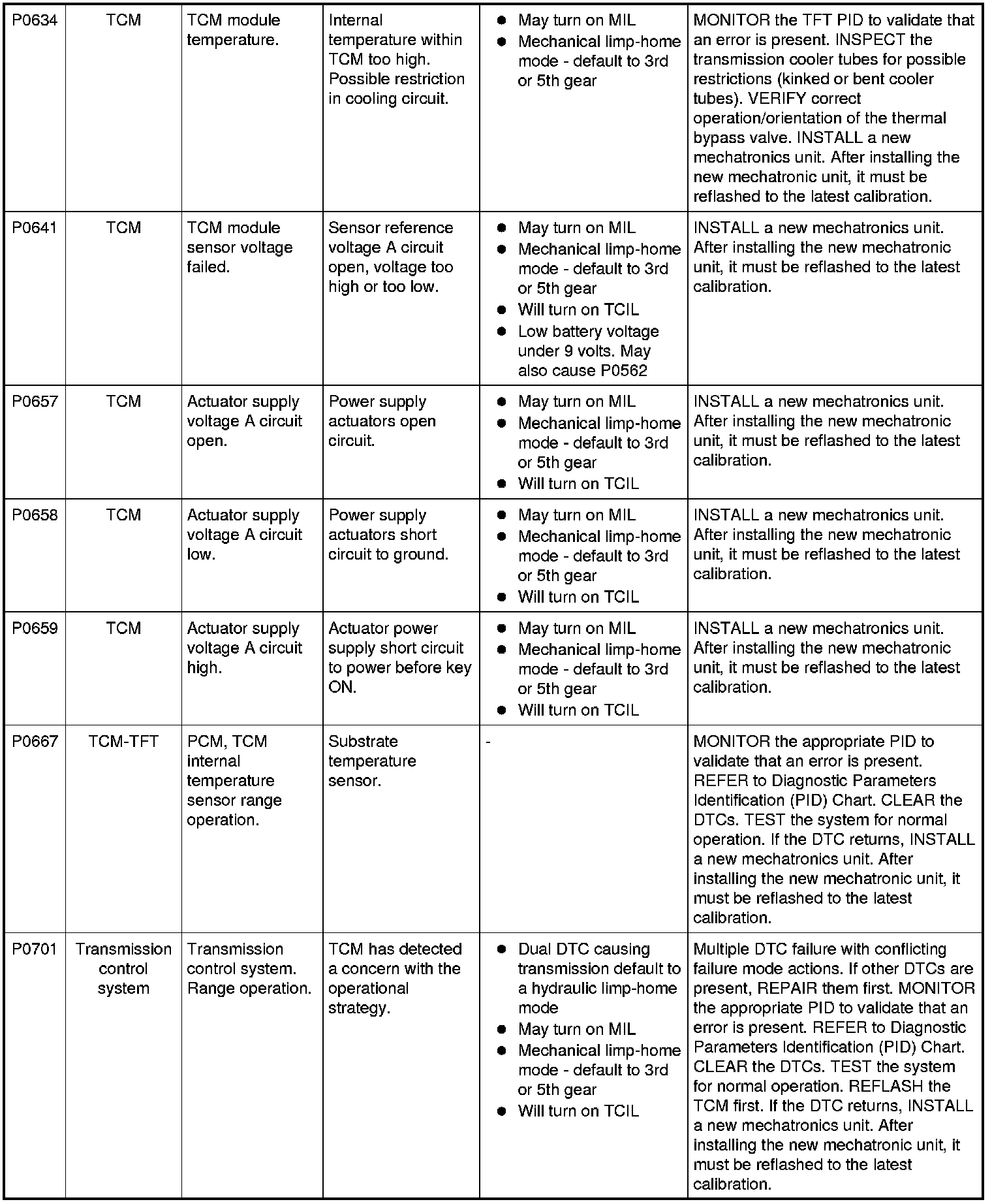

P0634-P0701:

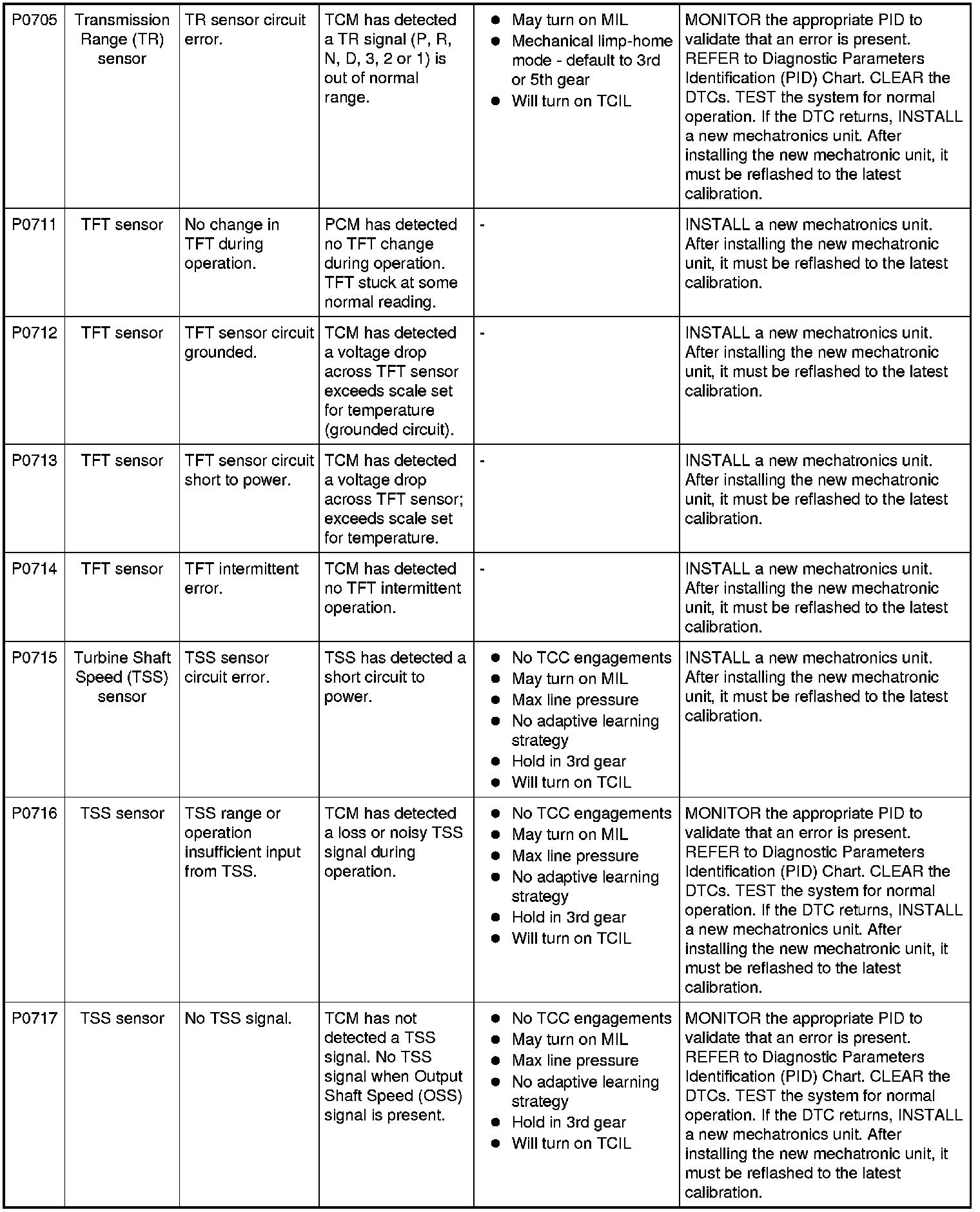

P0705-P0717:

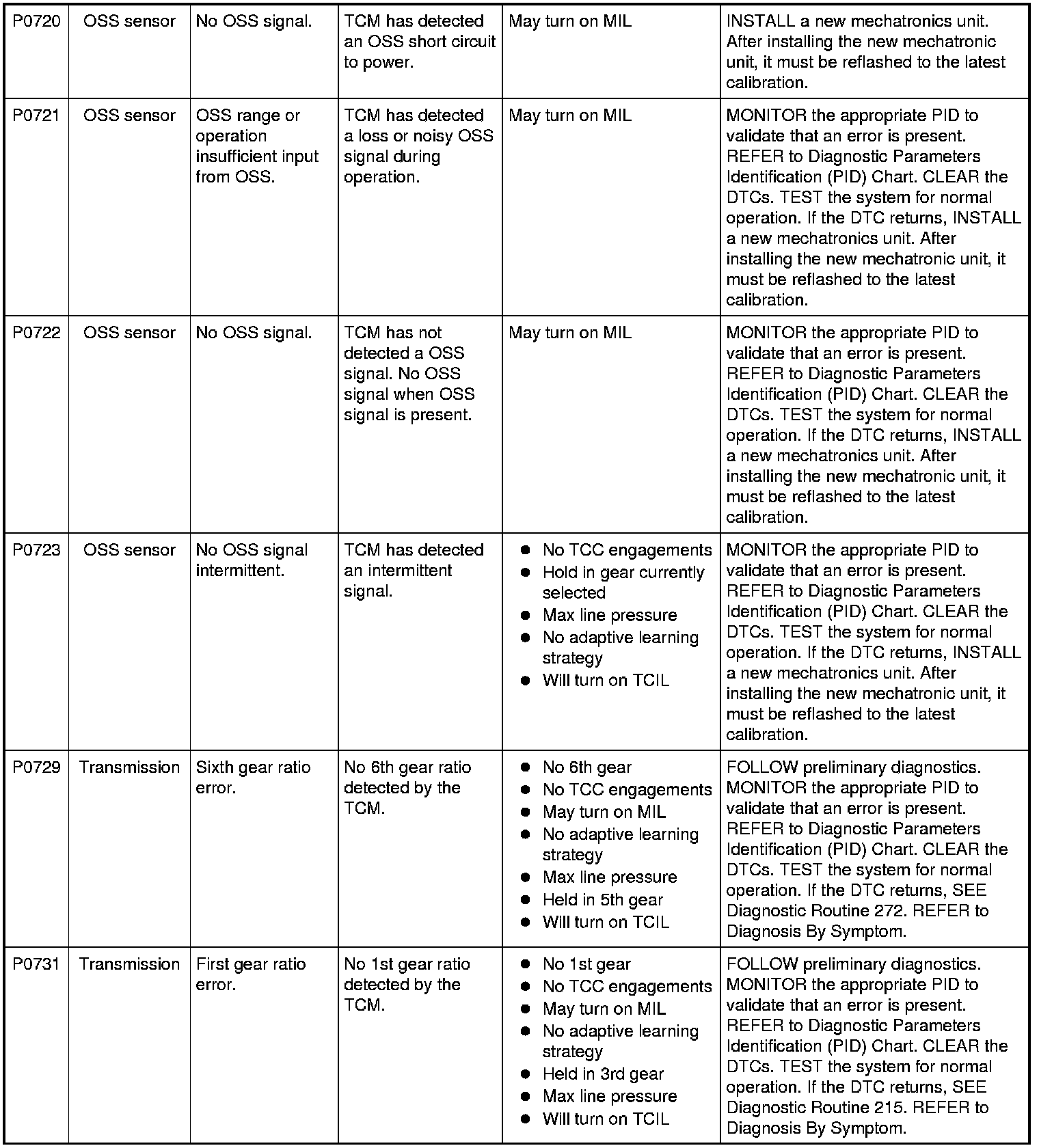

P0720-P0731:

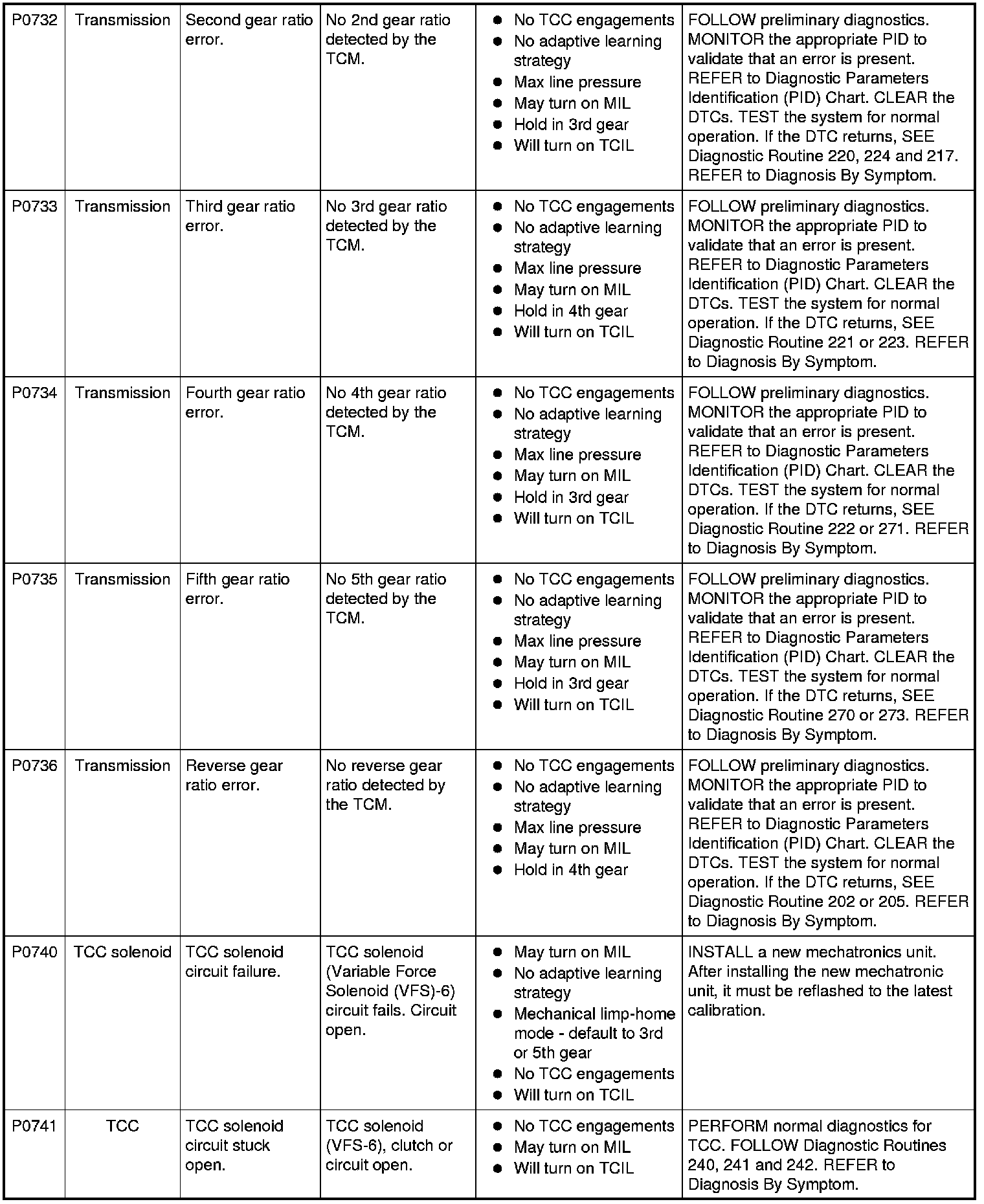

P0732-P0741:

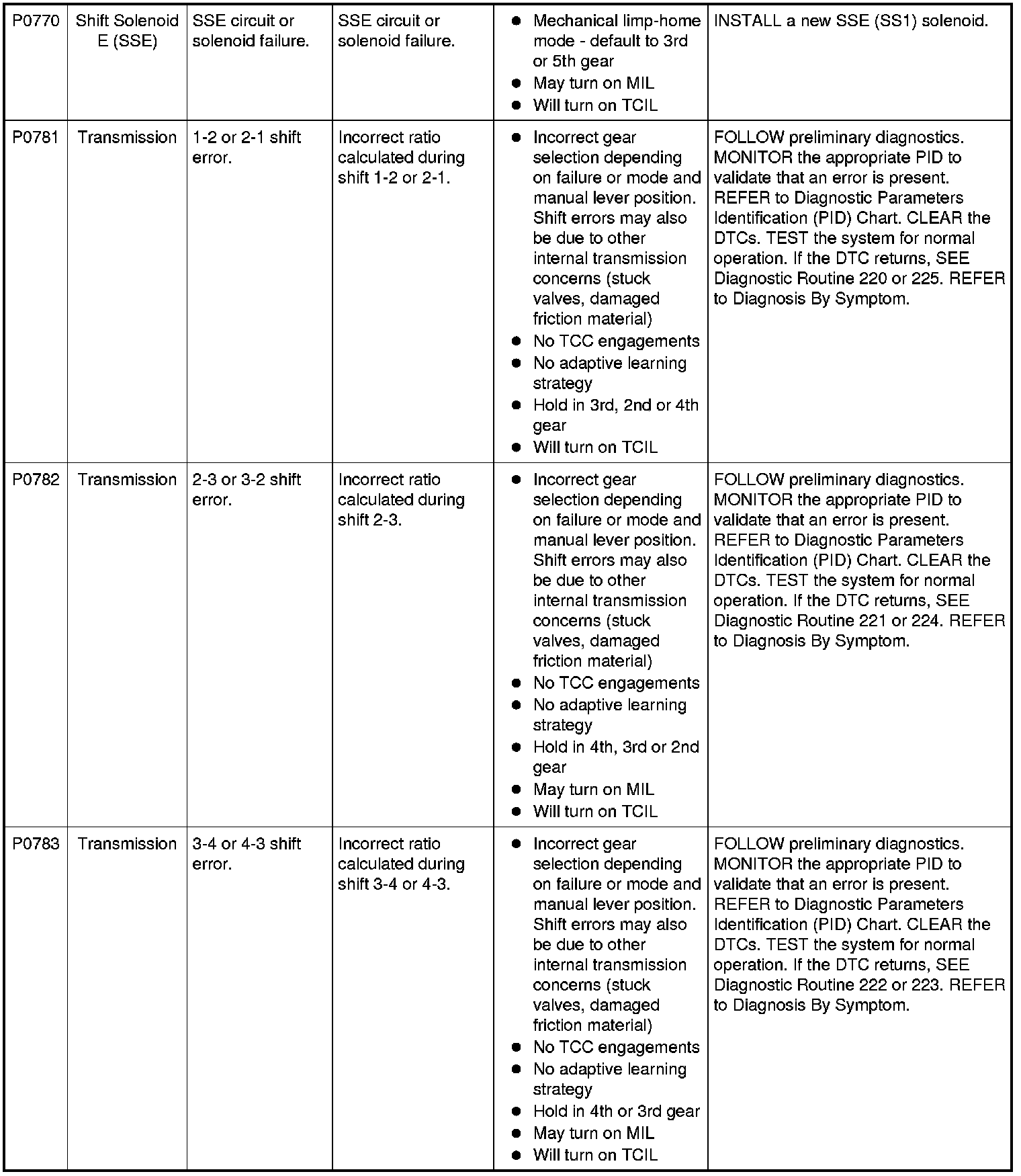

P0770-P0783:

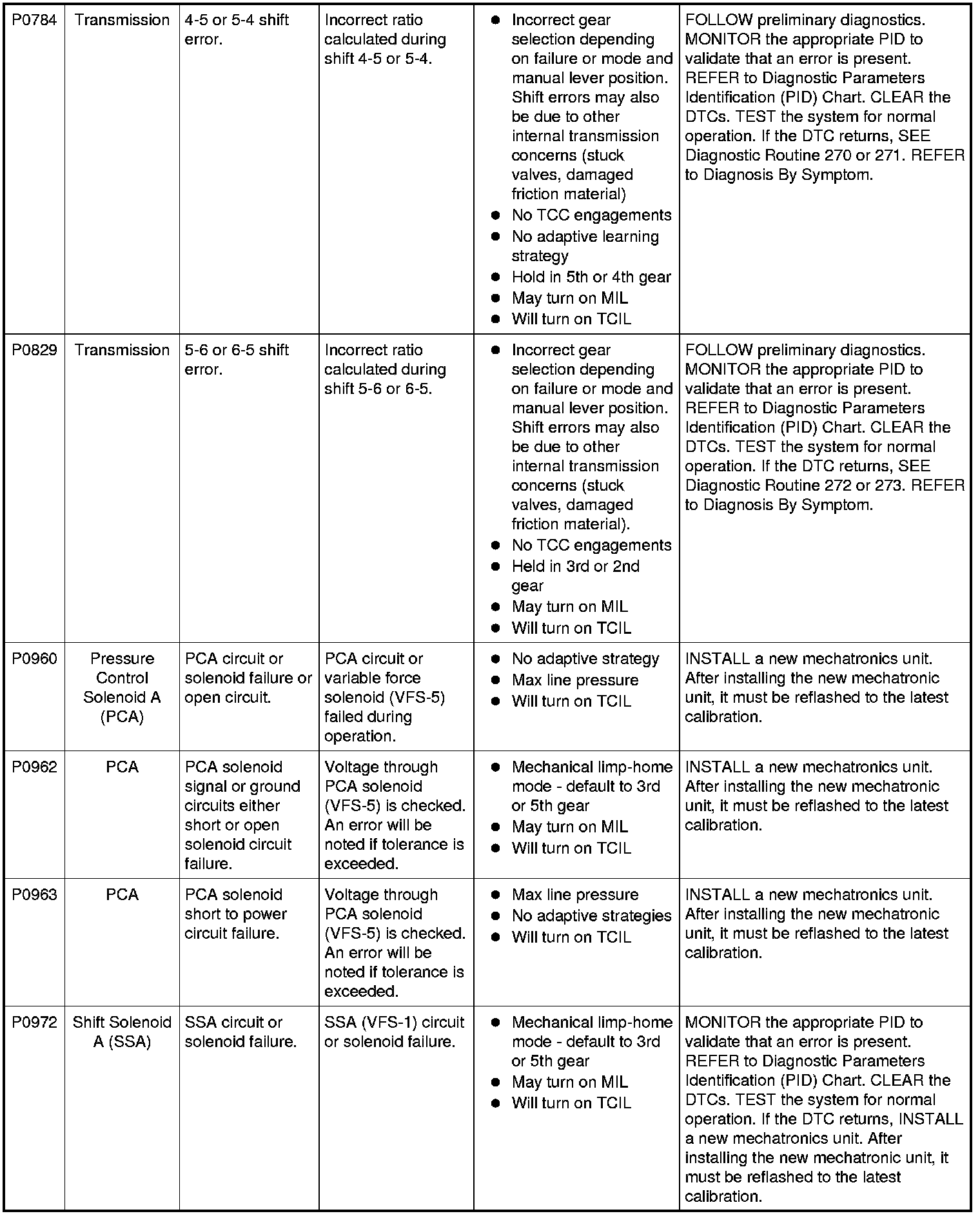

P0784-P0972:

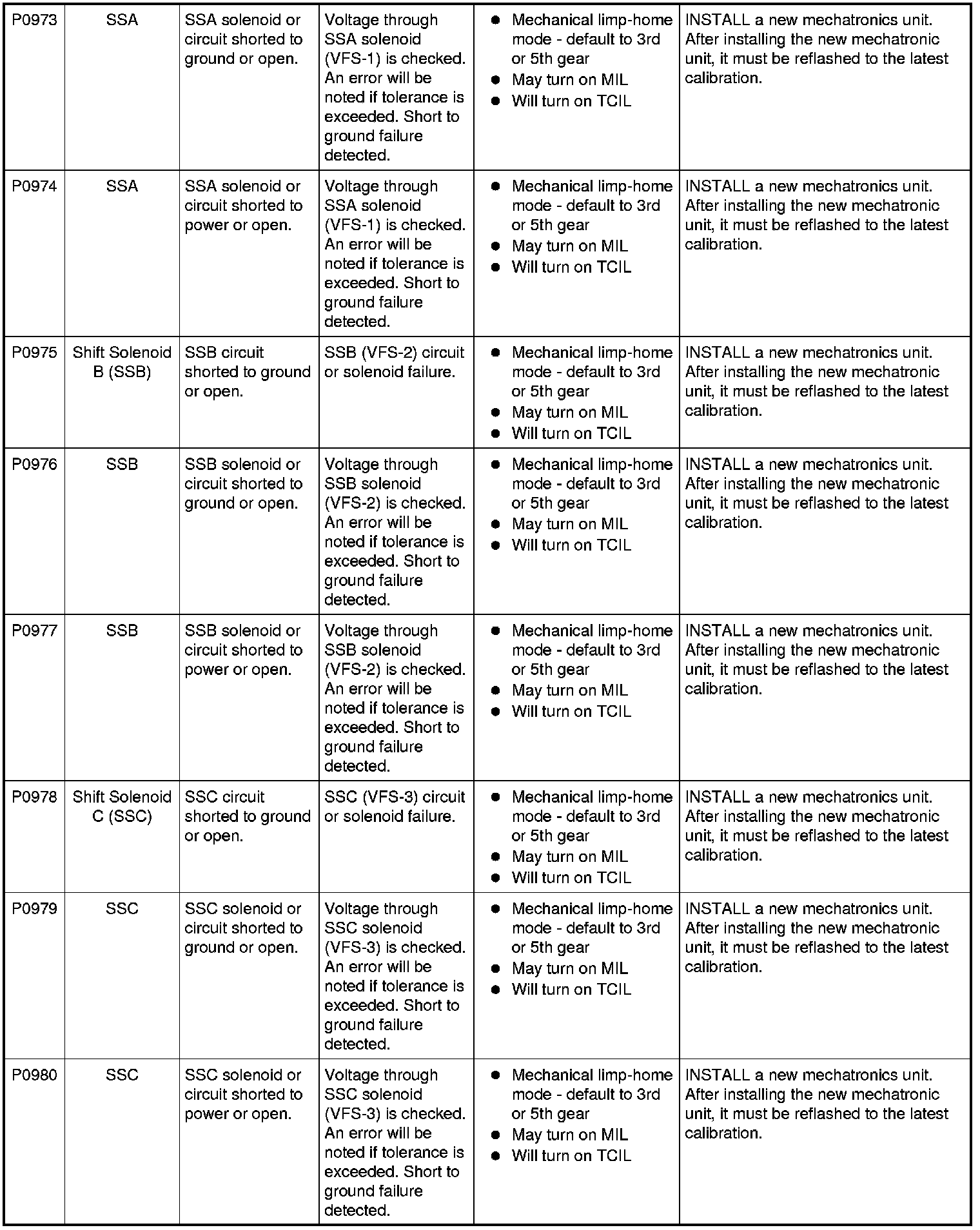

P0973-P0980:
