Diagnostic Parameters Identification (PID) Chart
6R80Diagnostic Parameters Identification (PID) ChartThe following is a list of output state control parameters and their corresponding PIDs:

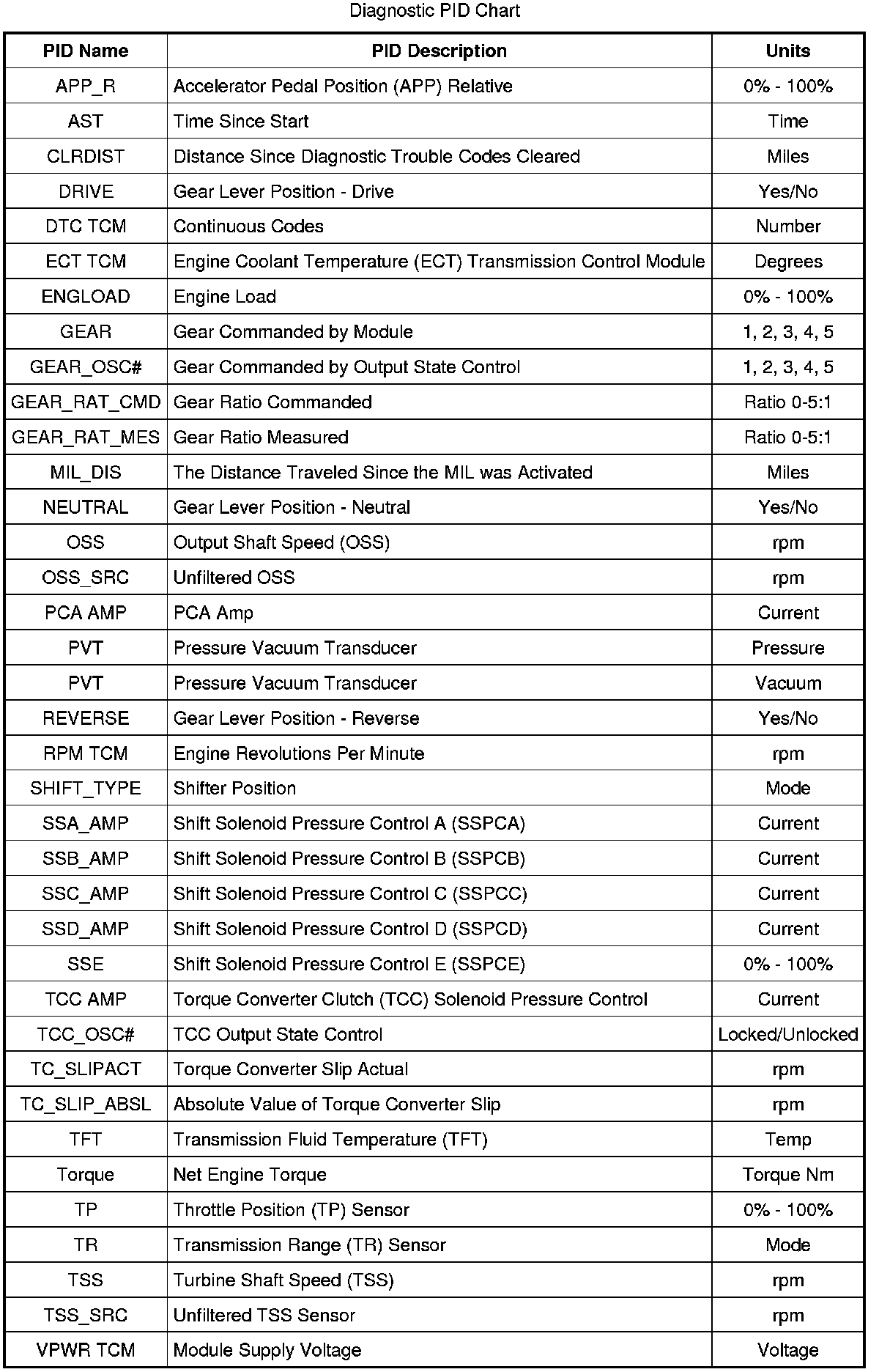

Diagnostic PID Chart (Part 1):

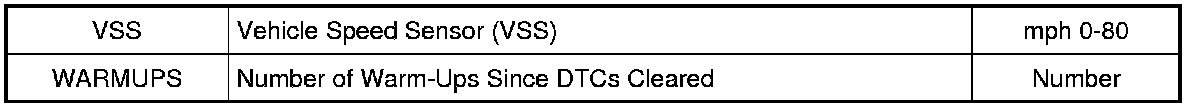

Diagnostic PID Chart (Part 2):
