Quarter Window Motor: Service and Repair
Window Regulator Motor - Rear QuarterRemoval 1.
Remove the D-pillar trim panel.
2.

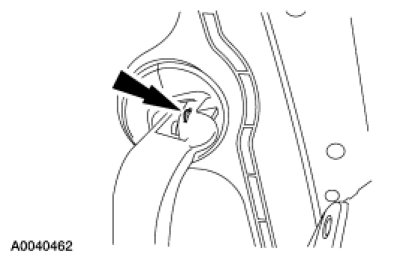

Disconnect the rear quarter window regulator motor.
-
Remove the retaining clip.
3.

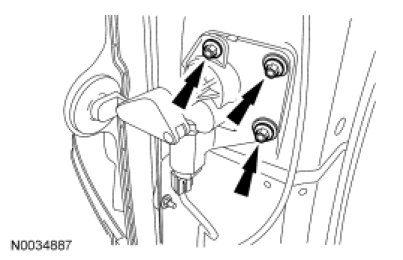

Remove the bolts and rear quarter window regulator motor.
-
To install, tighten to 9 Nm (80 lb-in).
-
Disconnect the electrical connector.
4.
To install, reverse the removal procedure.
