Front End Body Panels - Exploded View




Front End Body Panels - Exploded View

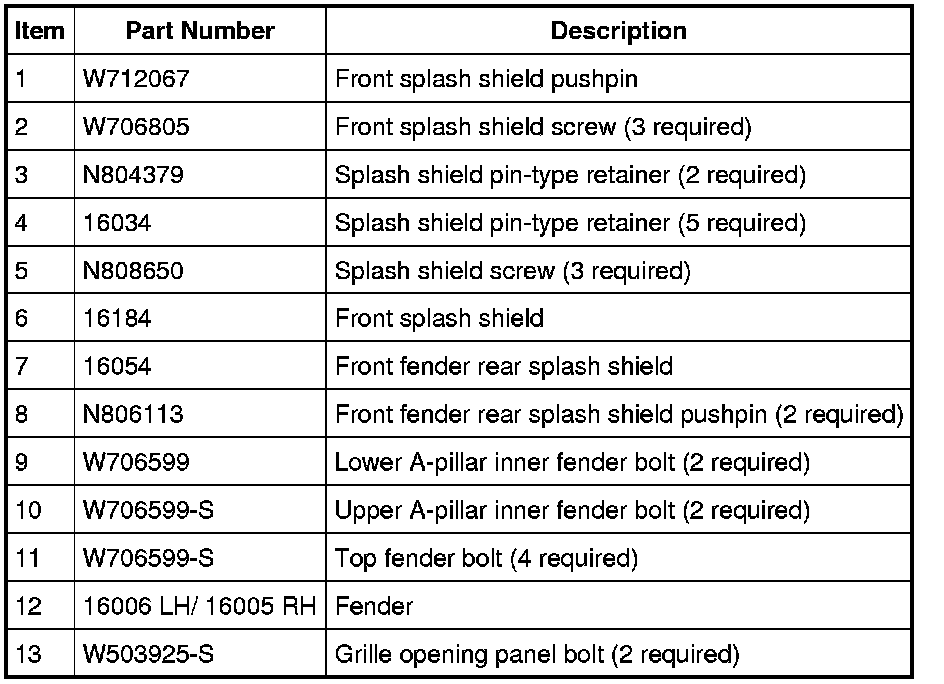

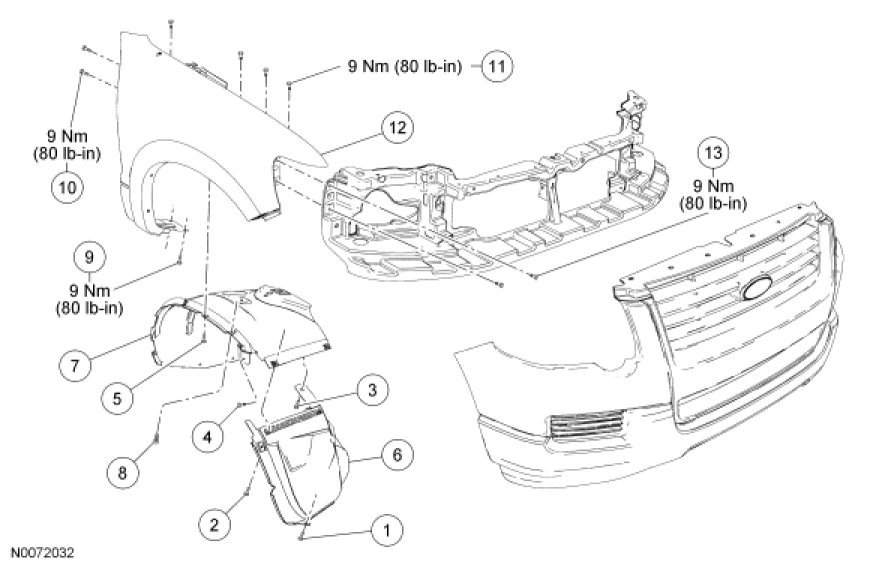

Explorer/Explorer Sport Trac

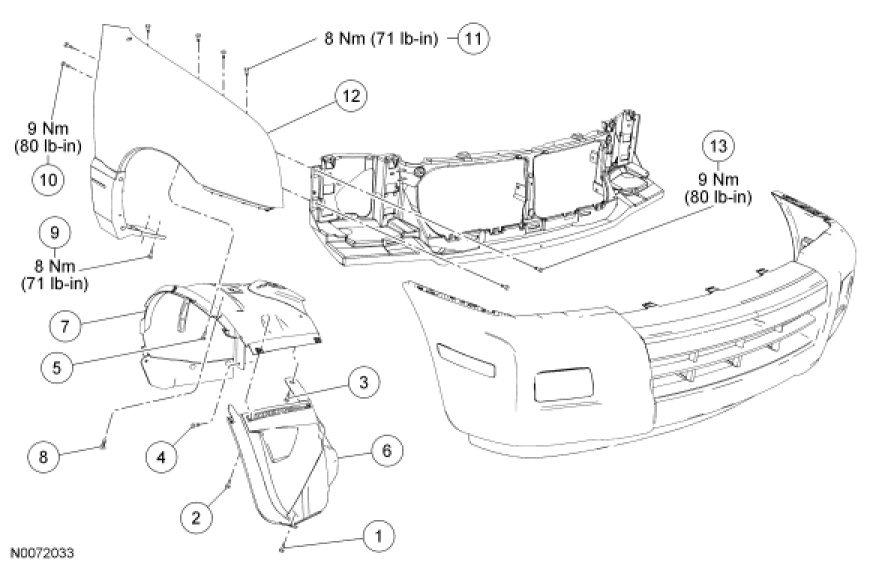

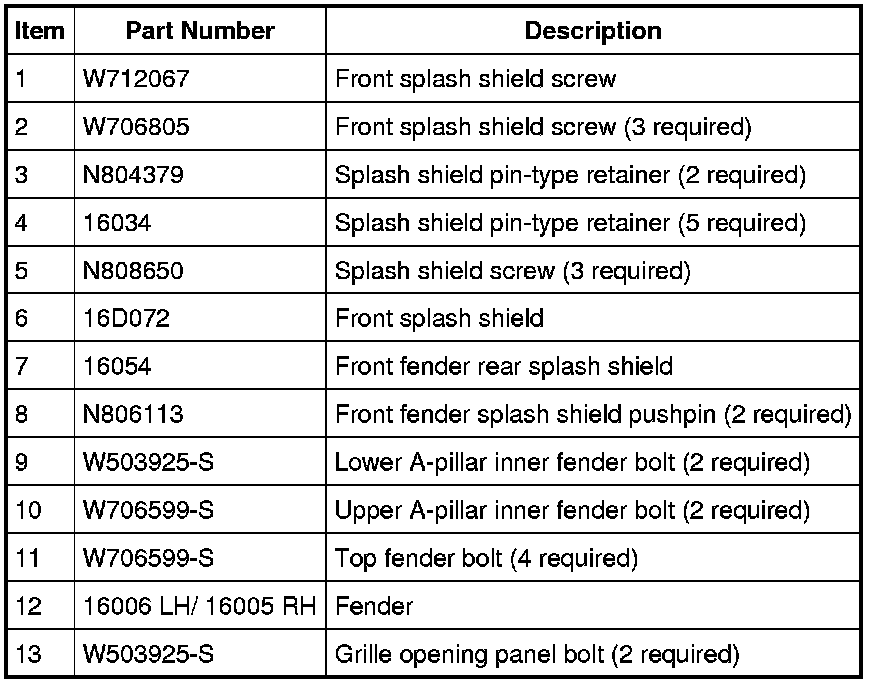

Mountaineer









1. For additional information, refer to the procedures.
