Interior Rear View Mirror

Interior Rear View Mirror

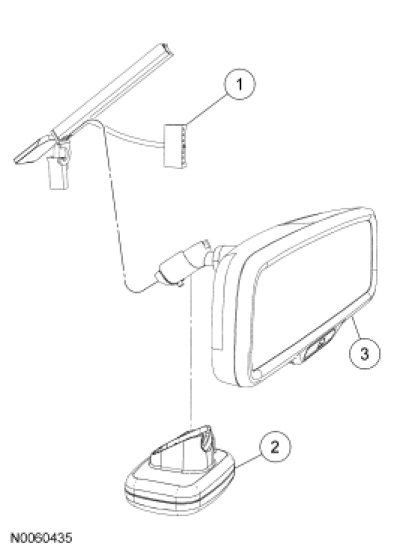

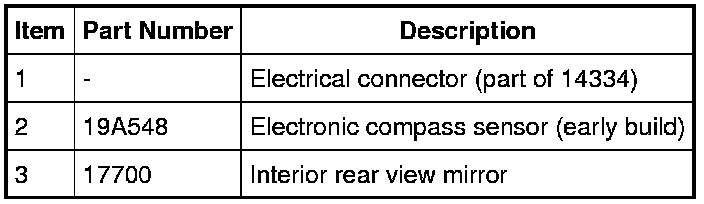

NOTE: Auto-dimming mirror shown, base mirror similar.

NOTE: Early build shown, late build similar.










Removal

1. NOTICE: Twisting the interior rear view mirror base from right to left may cause a stress fracture to the windshield.

If equipped, remove the wire cover.

2. If equipped, remove the compass sensor by pulling downward on the rear most edge of the compass sensor.

3. If equipped, disconnect auto-dimming mirror electrical connector.

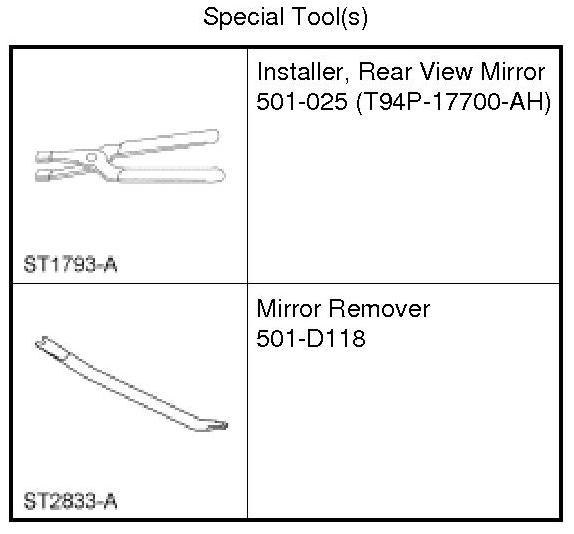

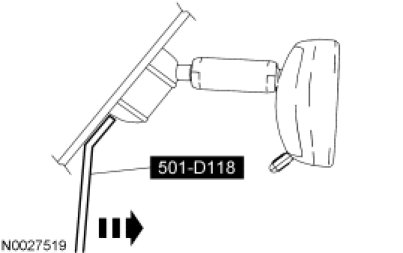

4. Insert the Mirror Remover between the mirror mount and windshield bracket from the bottom.





5. Release the mirror mount from windshield bracket by pulling the Mirror Remover away from the windshield.

Installation

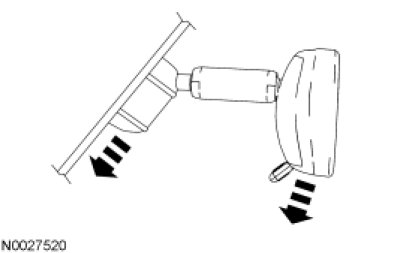

1. Slide the mirror mount over the windshield bracket from the top and adjust the mirror to the upward position.

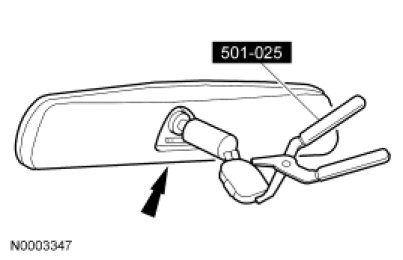

2. Using the Rear View Mirror Installer, press the mirror assembly downward along the windshield until the mount is seated on the windshield bracket.





3. If equipped, connect auto-dimming mirror electrical connector.

4. If equipped, install the compass sensor and the wire cover.
