Water Pump
Water Pump

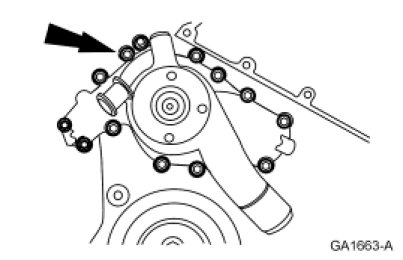

Install a new gasket, the coolant pump and the 13 bolts.
Tighten to
10 Nm (89 lb-in).
