Transmission Fluid Cooler Backflushing and Cleaning

Transmission Fluid Cooler Backflushing and Cleaning

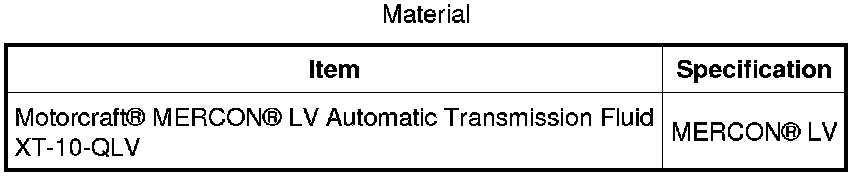

NOTICE: Use only transmission fluid specified for this transmission. Do not use any supplemental transmission fluid additives or cleaning agents. The use of these products could cause internal transmission components to fail; this will affect the operation of the transmission.

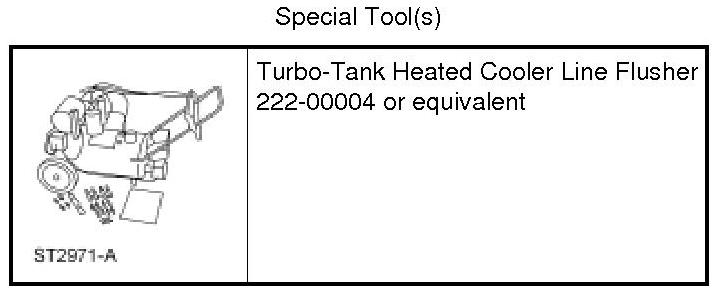

NOTE: Transmission fluid cooler backflushing and cleaning will be performed using the Turbo-Tank Heated Cooler Line Flusher or equivalent. Follow the manufacturer's instructions included with the machine. Test the equipment to make sure that a vigorous fluid flow is present before proceeding.

NOTE: If the vehicle is equipped with an in-line transmission fluid filter, remove and discard the in-line filter.

1. Check and top off fluid level of the Turbo-Tank Heated Cooler Line Flusher or equivalent tank with transmission fluid.

2. Allow the fluid in the Turbo-Tank Heated Cooler Line Flusher or equivalent 15-30 minutes to heat up to 60°C (140°F) before using.

3. Install the line adapters into the transmission cooler lines.

4. Attach the Turbo-Tank Heated Cooler Line Flusher or equivalent red line to the transmission fluid cooler pressure line quick disconnect fitting.

5. Attach the Turbo-Tank Heated Cooler Line Flusher or equivalent blue line to the transmission fluid cooler return line quick disconnect fitting.

6. Follow the equipment instructions to purge the cooler lines and cooler prior to starting the flushing procedure.

7. Allow the cooling system to backflush for 10-15 minutes, then flush the cooler in a normal flow direction for an additional 10-15 minutes.
