212, Timing Concerns - Erratic/Hunting (Some/All)
212, Timing Concerns - Erratic/Hunting (Some/All)
Diagnostic Routines

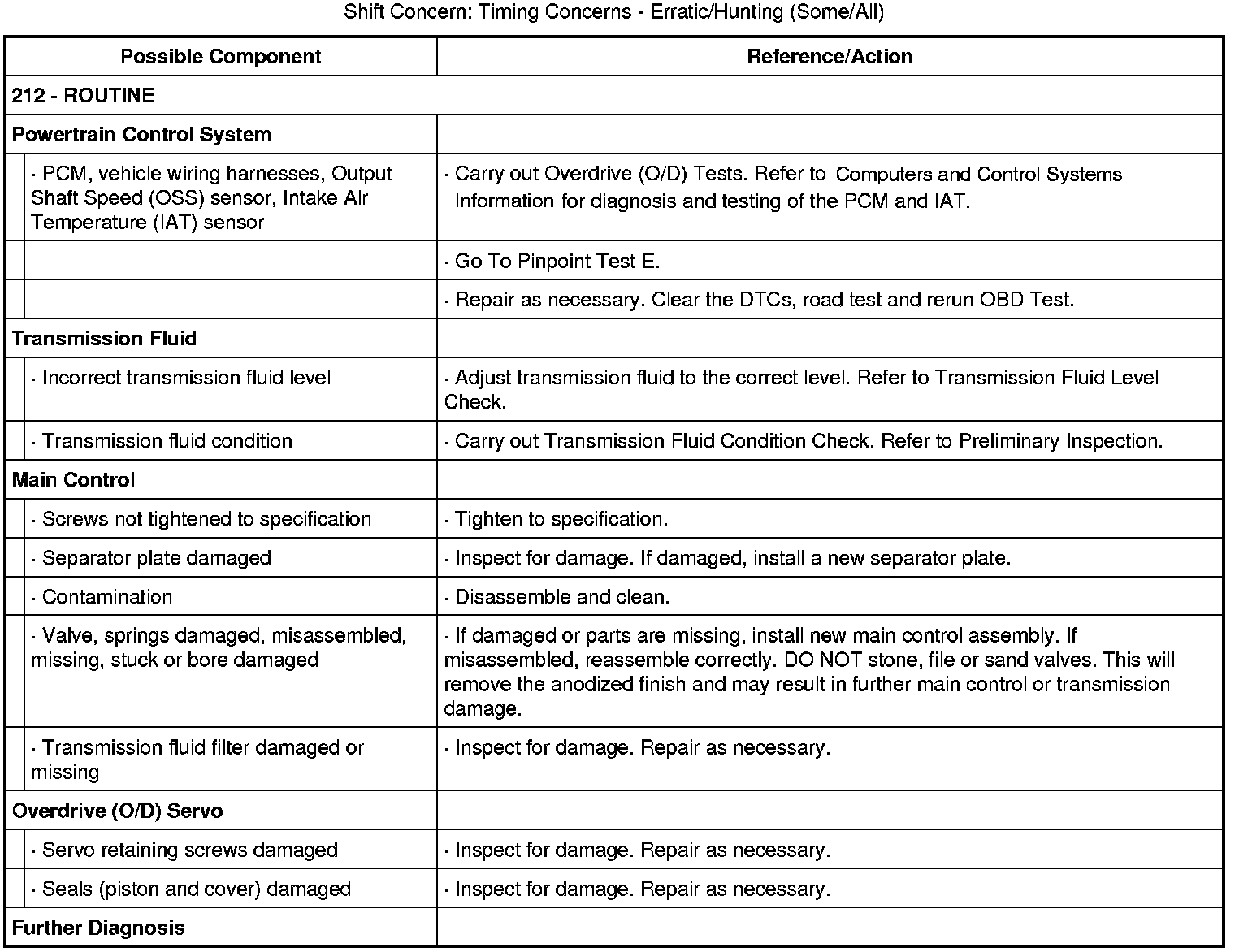

212, Timing Concerns - Erratic/Hunting (Some/All) (Part 1):

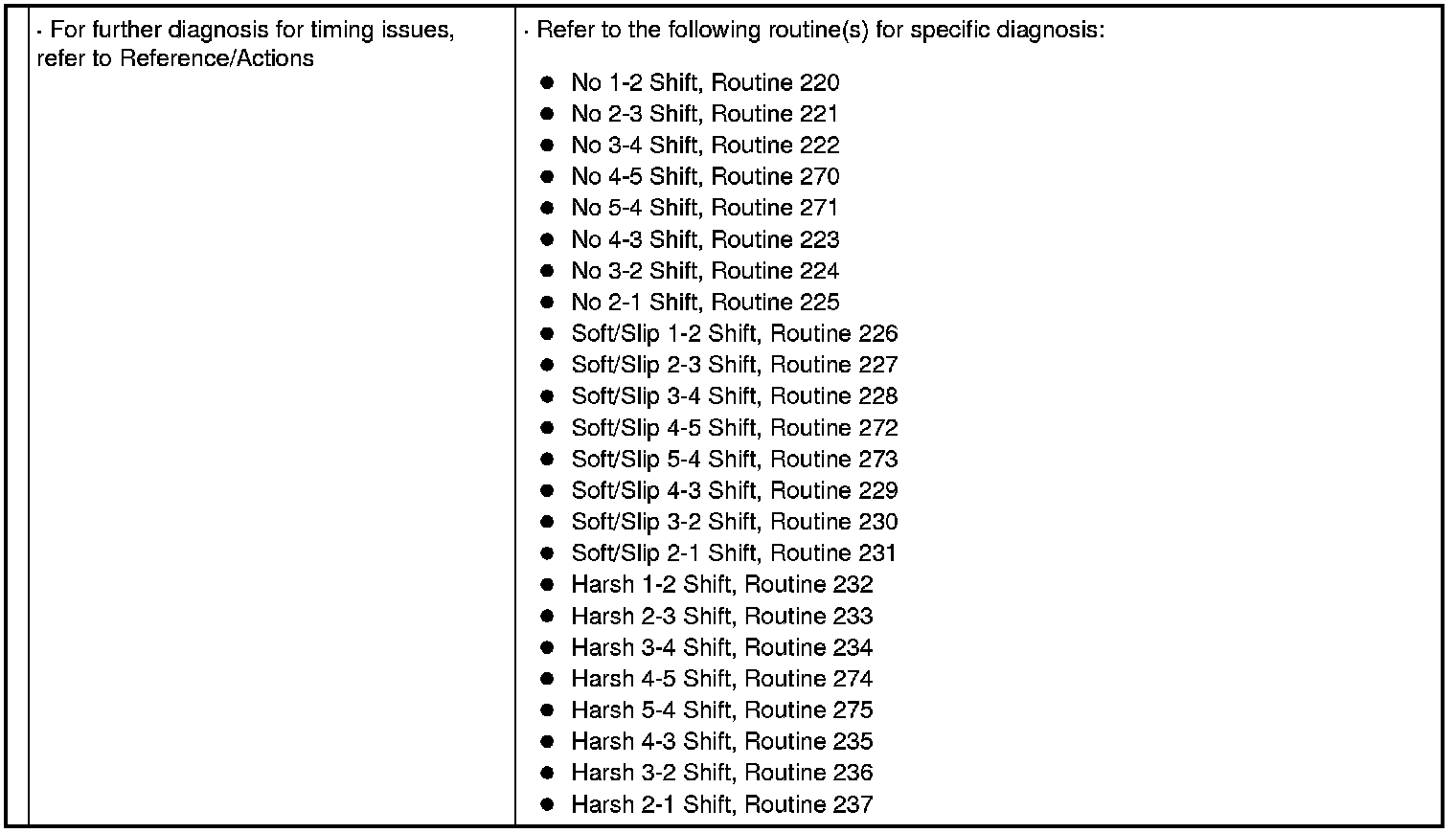

212, Timing Concerns - Erratic/Hunting (Some/All) (Part 2):
