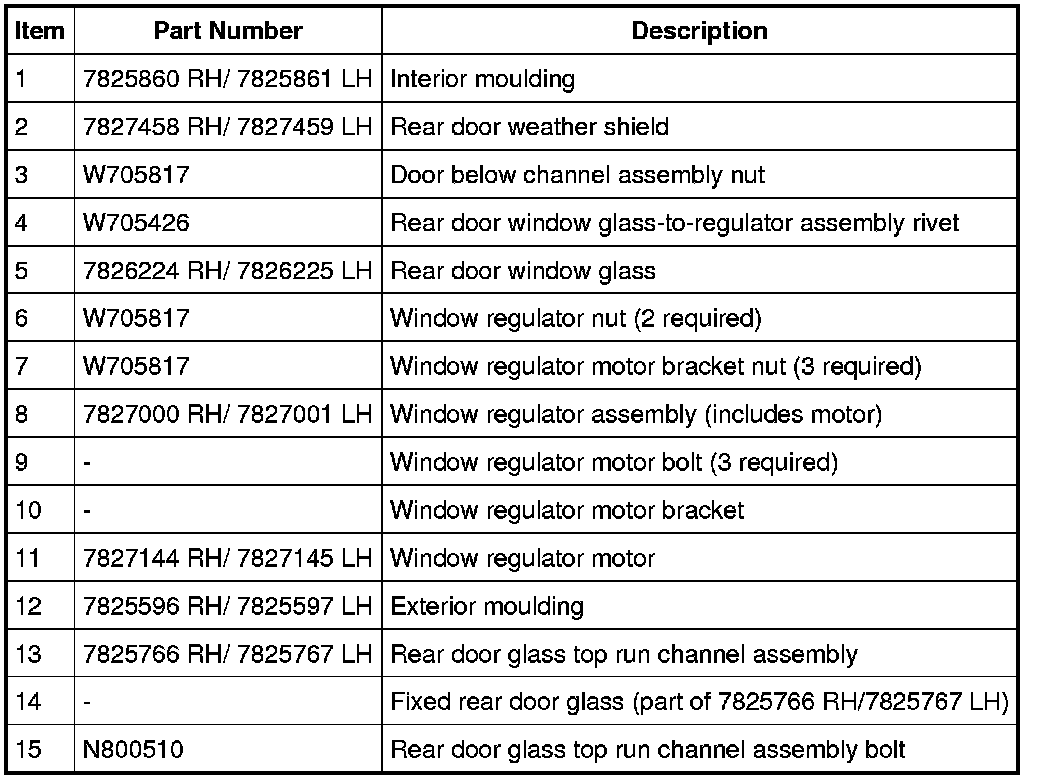

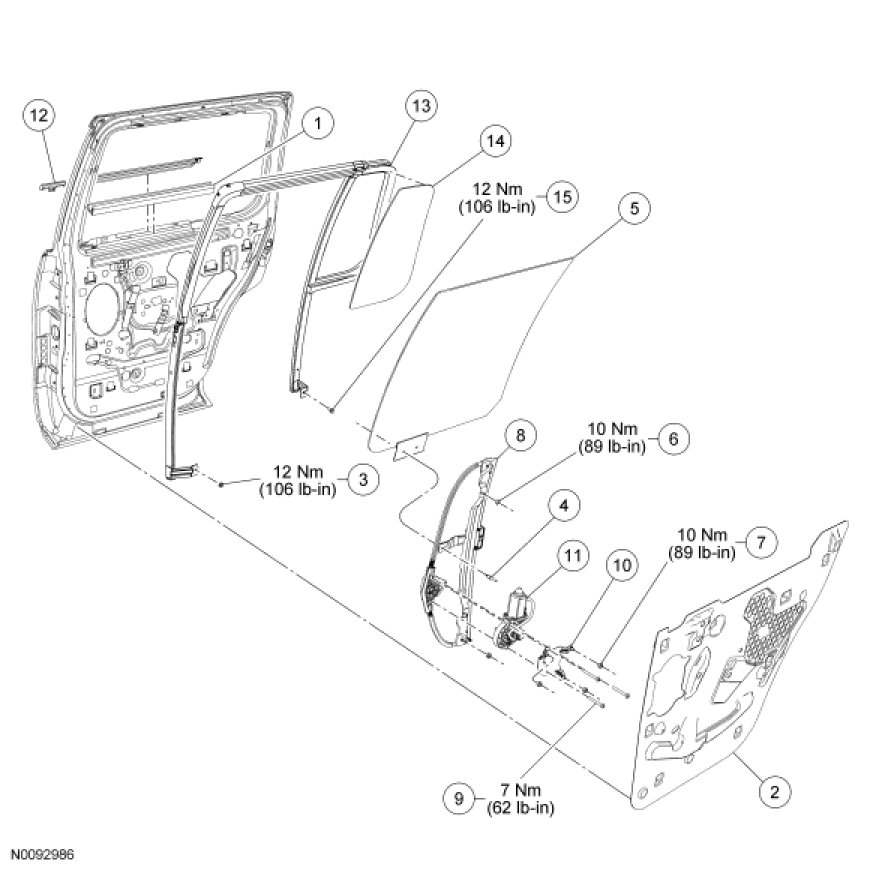

Glass, Frames and Mechanisms - Exploded View, Rear Door

Glass, Frames and Mechanisms - Exploded View, Rear Door

NOTE: Explorer shown, Explorer Sport Trac similar.










1. For additional information, refer to the procedures.
